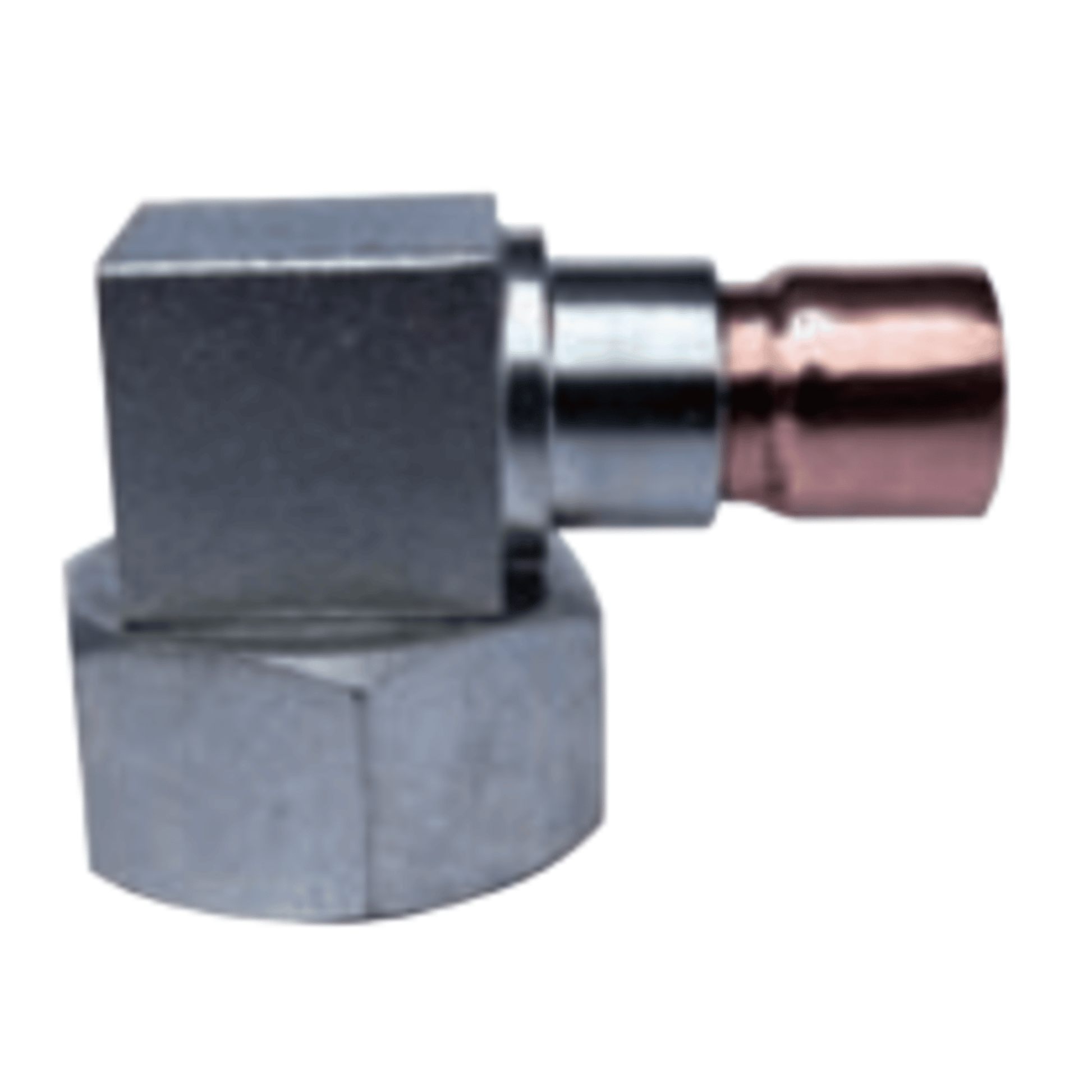

RL-EC-5824 - C&D - Rotalock Elbow connector - 1 5/8 ID x 2 1/4 R/L nut

The C&D RL-EC-5824 is a Rotalock Elbow Connector designed for large-capacity HVAC and refrigeration systems. Here's a detailed breakdown of its specifications:

Product Specifications

• Model: RL-EC-5824
• Manufacturer: C&D Valve
• Type: Rotalock Elbow Connector
• Inlet Size: 1-5/8" ID (Inside Diameter)
• Nut Size: 2-1/4" R/L (Right/Left-hand thread)
• Configuration: 90° elbow
• Material: Typically carbon steel body with copper or brass fittings
• Seal Compatibility: Uses PTFE (Teflon) gaskets
• Working Pressure: Up to 625 psi (43 bar)
• Temperature Range: –22°F to 248°F (–30°C to 120°C)
• Certifications: UL listed, CE marked

Features

• Designed for high-capacity systems requiring a 90° directional change
• Leak-tested with helium and hydrogen
• Tin-over-zinc plating for corrosion resistance
• Compatible with C&D Rotalock valves and gaskets
