REFCO Mfg. (US) Inc.

Refco 4688292, REFSCALE, Electronic charging scale

Refco 4688292, REFSCALE, Electronic charging scale

SKU: REF-4688292

Regular price $550.00 CAD
Regular price $654.01 CAD Sale price $550.00 CAD
Sale Sold out
Shipping calculated at checkout.

Product Detail

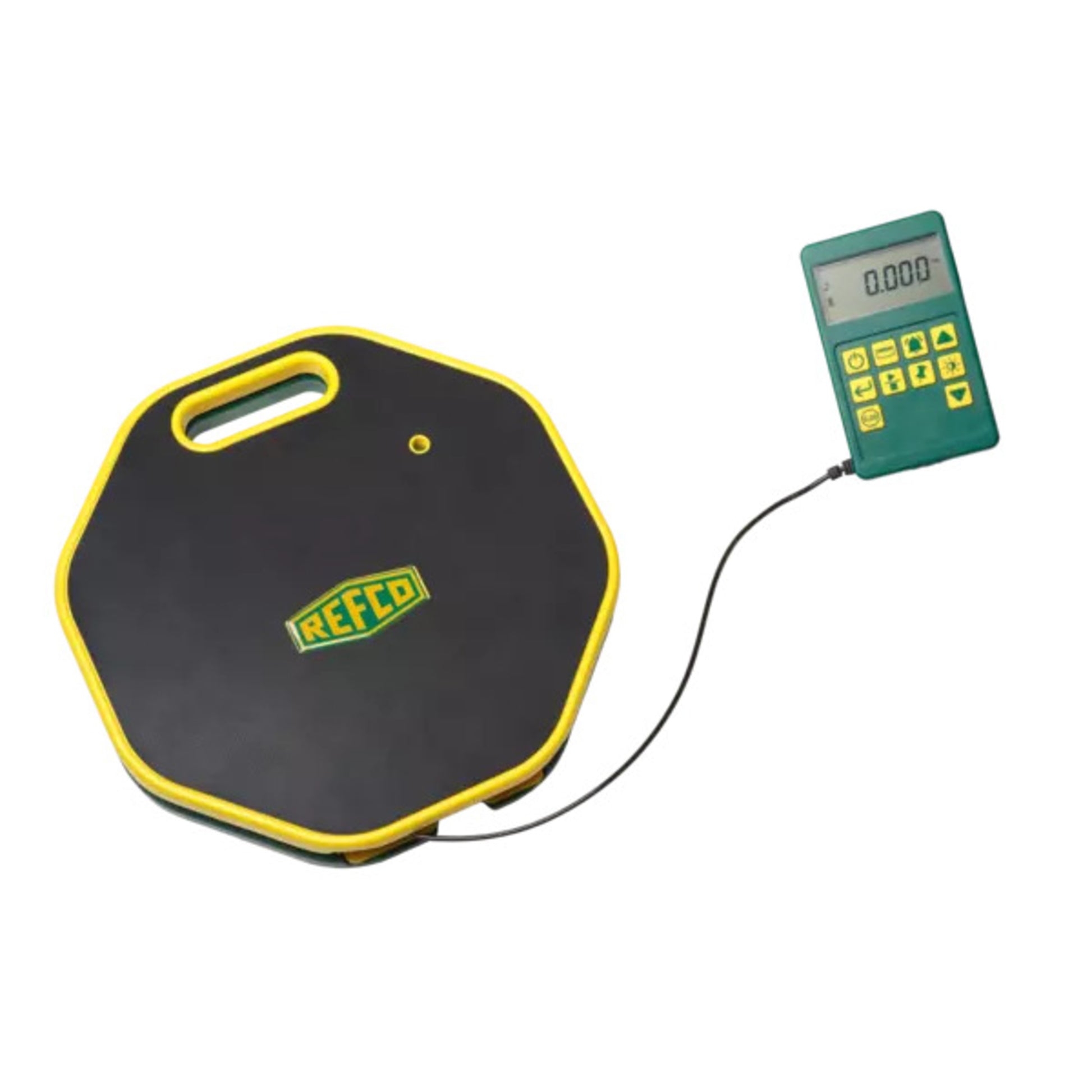

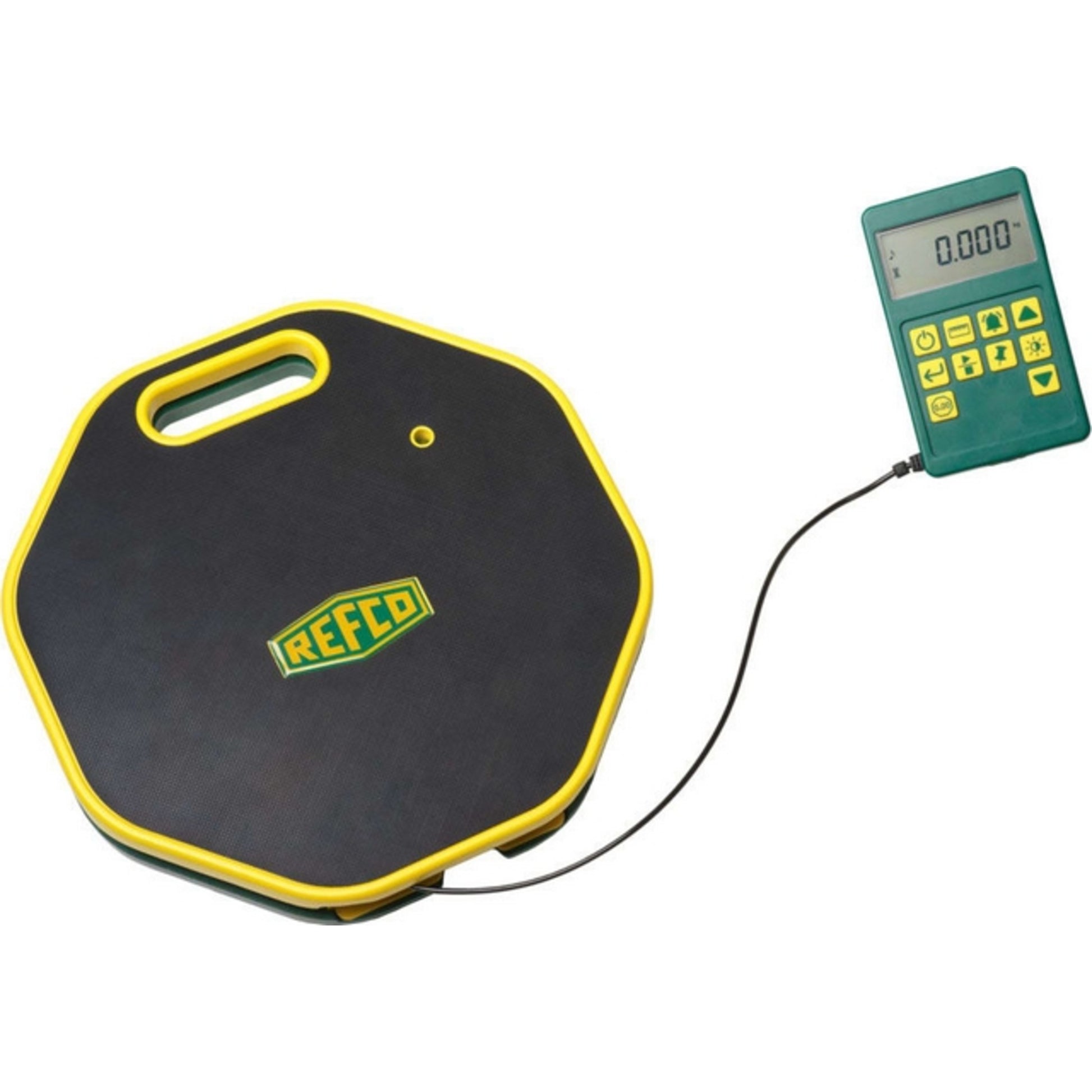

Refco 4688292, REFSCALE, Electronic charging scale

Electronic charging scale, capacity: 243 lbs, Accuracy: +/- 0.05% or 0.022 lbs.

The electronic charging scale REFSCALE can easily be connected to the REFMATE and/or REFMESH. It consists of two solid aluminum plates on which large refrigerant cylinders can be safely placed thanks to the octagonal shape. The highly sensitive measuring cell indicates the exact weight even with asymmetrically positioned cylinders. Set the required function sensor via the REFMESH App. In addition, an adapter (10612-REF) for small refrigerant cans can be mounted on the thread, which makes handling easier.

  • Connects wireless with REFMATETM and/or REFMESHTM
  • High accuracy and automatic resolution
  • Programmable alarm
  • Can be calibrated in the field with reference weights
  • Refrigerant tank capacity
  • Measures weight in kg, lb and oz
  • Flexible power supply with battery or via USB
  • Accuracy +/- 0.05%
  • Measuring Range 0 - 240 lb
  • Units kg, lbs & oz
  • Resolution 2 g, 0.005 lbs, 0.1 oz
Functions
  • Connection to REFMESH,
  • Connection to REFMATE,
  • Hold mode (for bottle change),
  • Programmable alarm,
  • Tank capacity mode,
  • Calibration,
  • Battery level,
  • Over-range indication,
  • Thread to mount 10612-REF
  • Operating Temperature Range 14 - 122 °F
  • Ingression Protection IP42
  • Battery 4 x AAA
  • Operating Hours 30 h
  • Cable Length 60 ″
  • Scope of Supply Control box | Batteries | Pouch | Instruction manual
  • Packaging Cardboard box
  • Material Aluminum
  • Color yellow | green
Standards
EN 61326
  • EN 62479
  • EN 301 489-1
  • FCC
  • CEE
  • RoHS Conformity
