4688132 - Refco - REFMATE-2-CA-WTC-V Digital 2-way manifold

Here are the specifications and features of the Refco REFMATE-2-CA-WTC-V Digital 2-Way Manifold (Part No. 4688132):

REFMATE-2-CA-WTC-V – Key Features

• Type: Digital 2-way manifold
• Display: 4.3" TFT color screen with patented analog-style indicators
• Control: Durable push-button interface (no touchscreen)
• Accuracy: Class 0.5 (±0.5%)
• Pressure Range: -0.95 to 60 bar
• Temperature Range: -40 °C to +125 °C
• Resolution:
  • Pressure: 0.001 bar, 0.5 psi, 1 kPa, 0.0001 MPa, 0.01 kg/cm²
  • Temperature: 0.1 °C / 0.1 °F

Connectivity & Functions

• Wireless Communication: Compatible with REFMESH app, temperature clamps, vacuum gauge, pressure gauges, and scales
• Functions:
  • Superheat and subcooling calculation
  • Long-term data logging
  • Pressure zeroing, refrigerant favorites, firmware updates
  • Field calibration, display brightness, unit/language settings

Supported Refrigerants

Supports a wide range including:

• R32, R134a, R410A, R1234yf, R404A, R407C, R448A, R449A, R452A, R513A, R600a, R744 (CO₂), and many more

Power Supply

• 4 × AA batteries
• USB Micro-B (alternative power source)

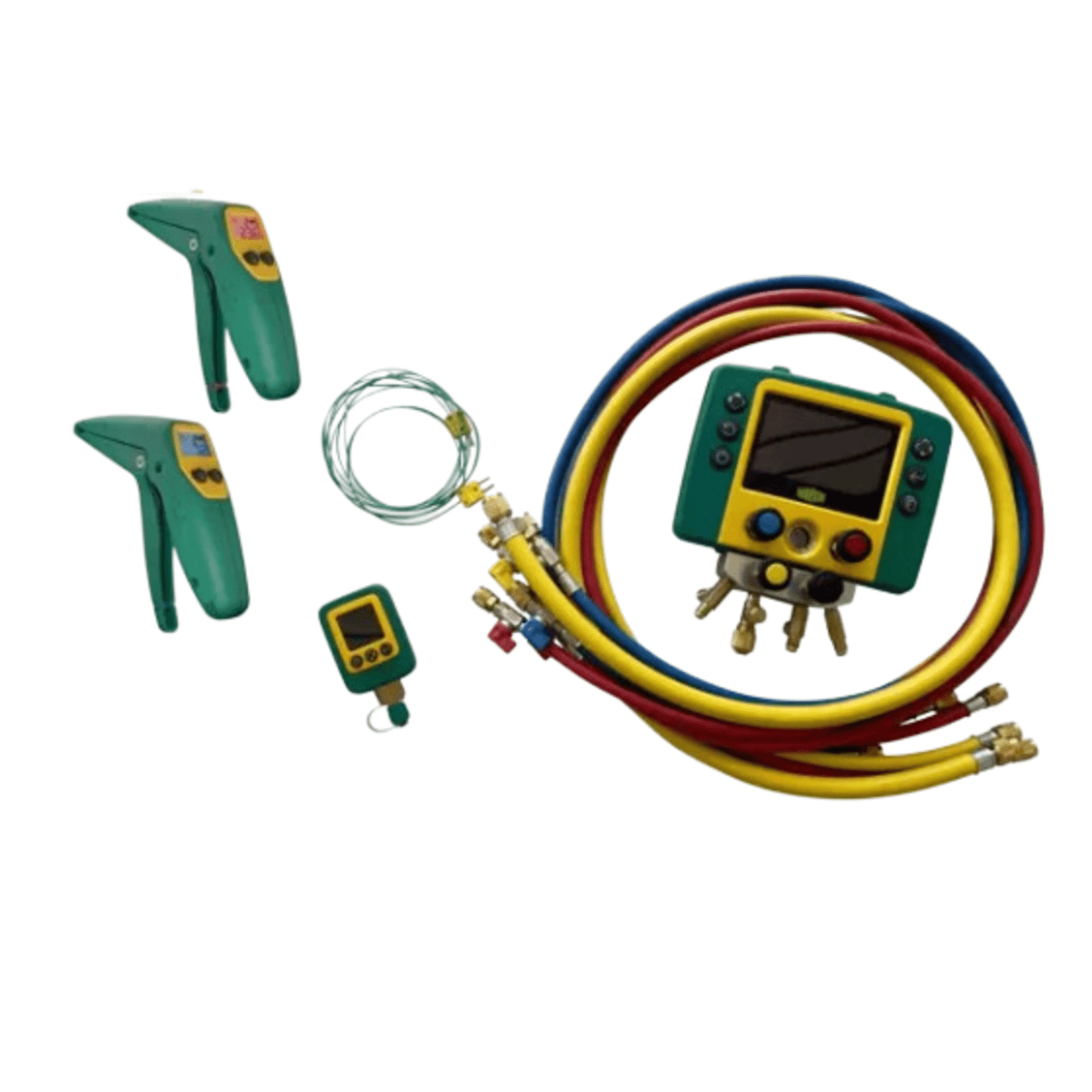

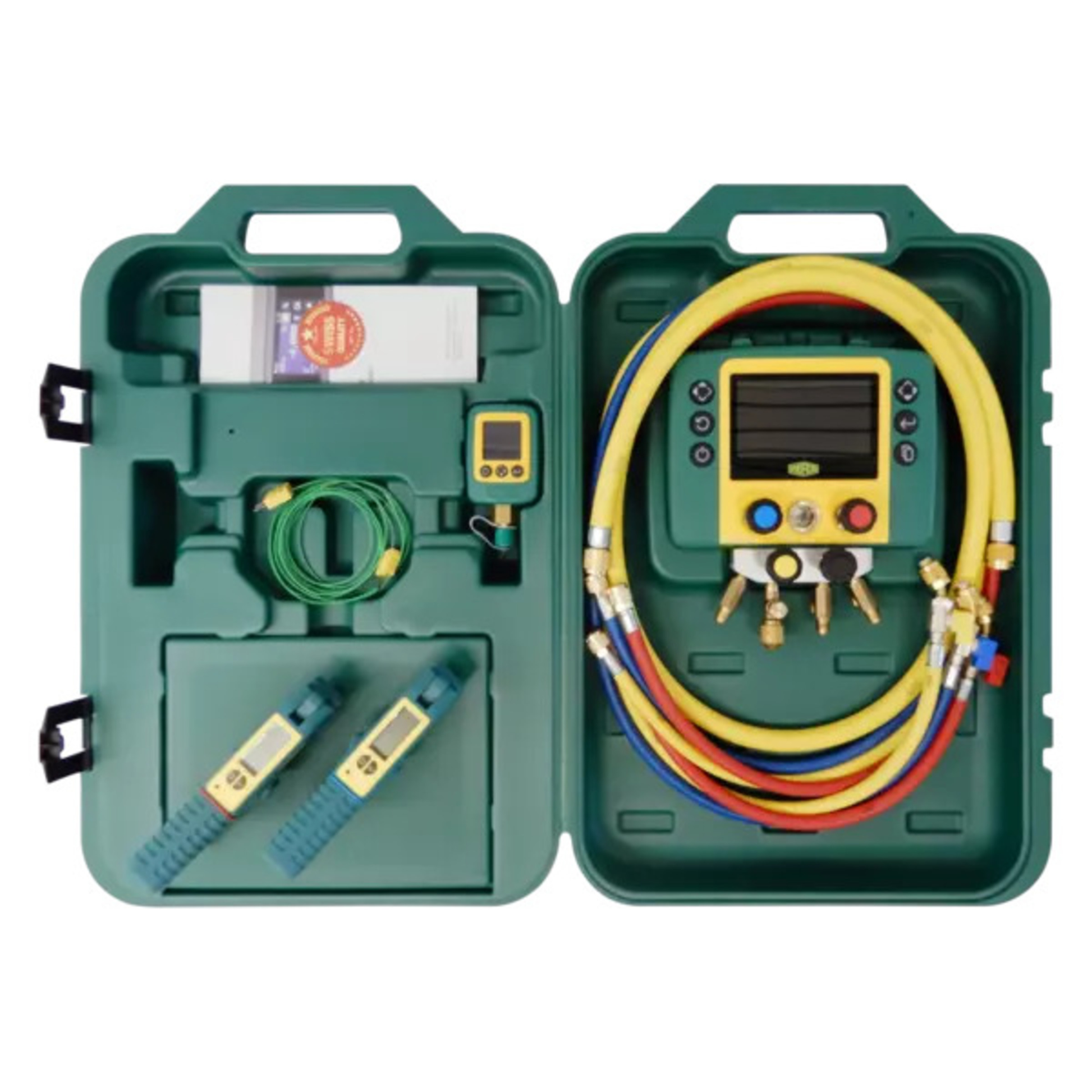

Included Accessories

• 5 charging hoses with CA valves
• 2 × K-type temperature sensors
• 2 × wireless temperature clamps
• Wireless digital vacuum gauge
• Batteries
• Calibration certificate
• Instruction manual
• Sturdy plastic carrying case
