4688128 - Refco - REFMATE-4-CA-WTC-V Digital 4-way manifold

Here are the full specifications and features of the Refco REFMATE-4-CA-WTC-V Digital 4-Way Manifold (Part No. 4688128):

REFMATE-4-CA-WTC-V – Key Features

• Type: Digital 4-way manifold
• Display: 4.3" TFT color screen with patented analog-style indicators
• Control: Robust push-button interface (no touchscreen)
• Accuracy: Class 0.5 (±0.5%)
• Pressure Range: -1 to +60 bar
• Temperature Range: -40 °C to +125 °C
• Resolution:
  • Pressure: 0.001 bar, 0.5 psi, 1 kPa, 0.0001 MPa, 0.01 kg/cm²
  • Temperature: 0.1 °C / 0.1 °F

Connectivity & Functions

• Wireless Communication: REFMESH app, temperature clamps, vacuum gauge, pressure gauges, and scales
• Functions:
  • Superheat and subcooling calculation
  • Long-term data logging
  • Pressure zeroing
  • Refrigerant favorites
  • Firmware updates
  • Field calibration
  • Display brightness and unit/language settings
  • Pipe temperature error compensation

Supported Refrigerants

Supports a wide range including:

• R32, R134a, R410A, R1234yf, R404A, R407C, R448A, R449A, R452A, R513A, R600a, R744 (CO₂), and many more

Power Supply

• 4 × AA batteries
• USB Micro-B (alternative power source)

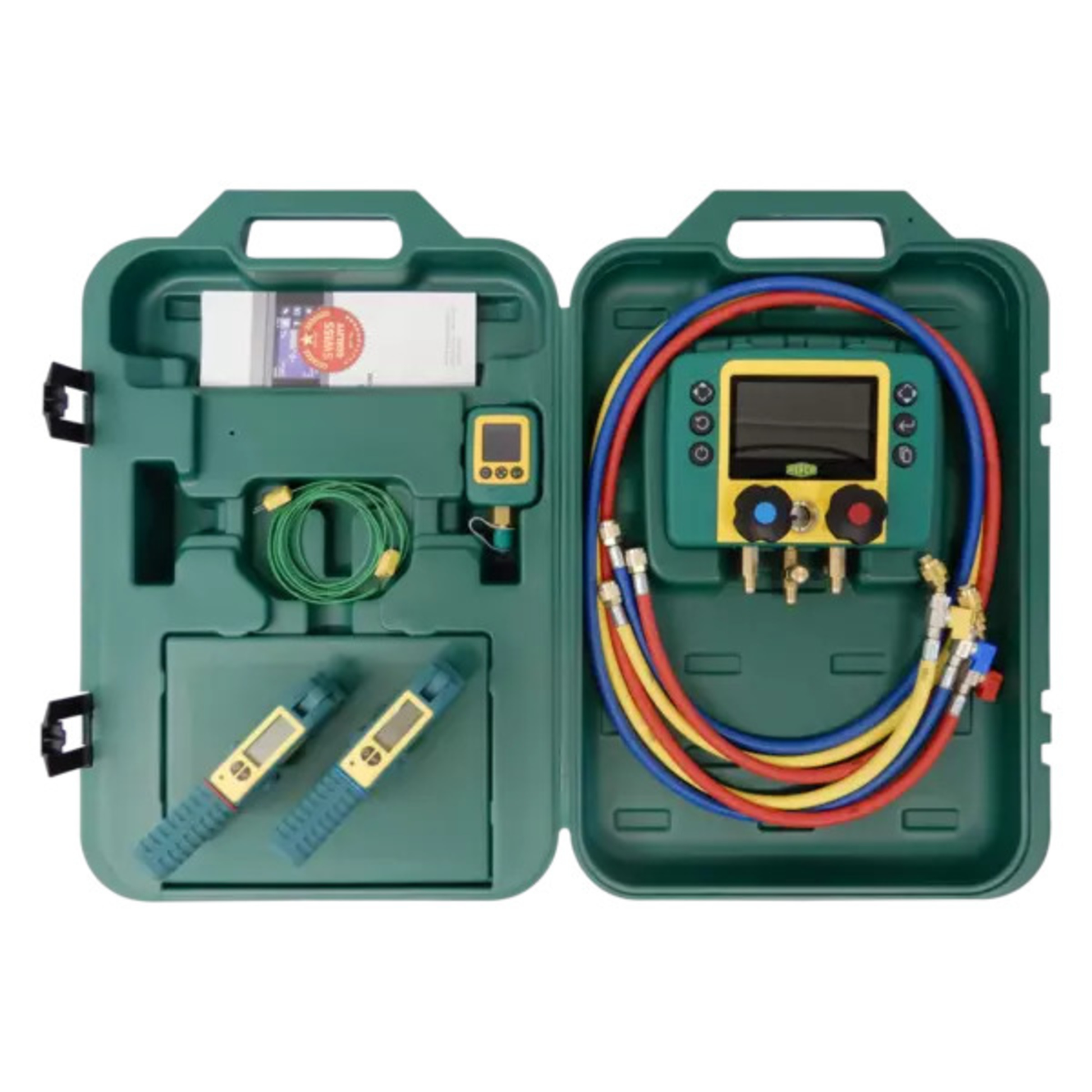

Included Accessories

• 3 charging hoses with CA valves
• 3/8" vacuum hose
• 2 × K-type temperature sensors
• 2 × wireless temperature clamps
• Wireless digital vacuum gauge
• Calibration certificate
• Batteries
• Instruction manual
• Sturdy plastic carrying case
