4688125 - Refco - REFMATE-2-CA, Digital 2-way manifold

Here are the full specifications and features of the Refco REFMATE-2-CA Digital 2-Way Manifold (Part No. 4688125):

REFMATE-2-CA – Key Specifications

• Type: Digital 2-way manifold
• Display: 4.3" TFT color screen with patented analog-style indicators
• Control: Robust push-button interface (no touch screen)
• Accuracy: ±0.5% (Class 0.5)
• Pressure Sensor Range: 0.95 to 60 bar
• Max. Working Pressure: 60 bar
• Max. Overpressure: 80 bar
• Operating Temperature: -40 °C to +125 °C
• Resolution:
  • 0.01 bar
  • 0.5 psi
  • 1 kPa
  • 0.001 MPa
  • 0.01 kg/cm²

Connectivity & Features

• Wireless Communication: Compatible with REFMESH app, temperature clamps, pressure gauges, and scales
• Functions:
  • Superheat and subcooling calculation
  • Lockable for long-term measurements
  • Data logging and documentation
• Sensor Type: K-type temperature sensors
• Power Supply: 4 × AA batteries or USB Micro-B
• Weight: 1.15 kg
• Dimensions: 200 × 190 × 75 mm

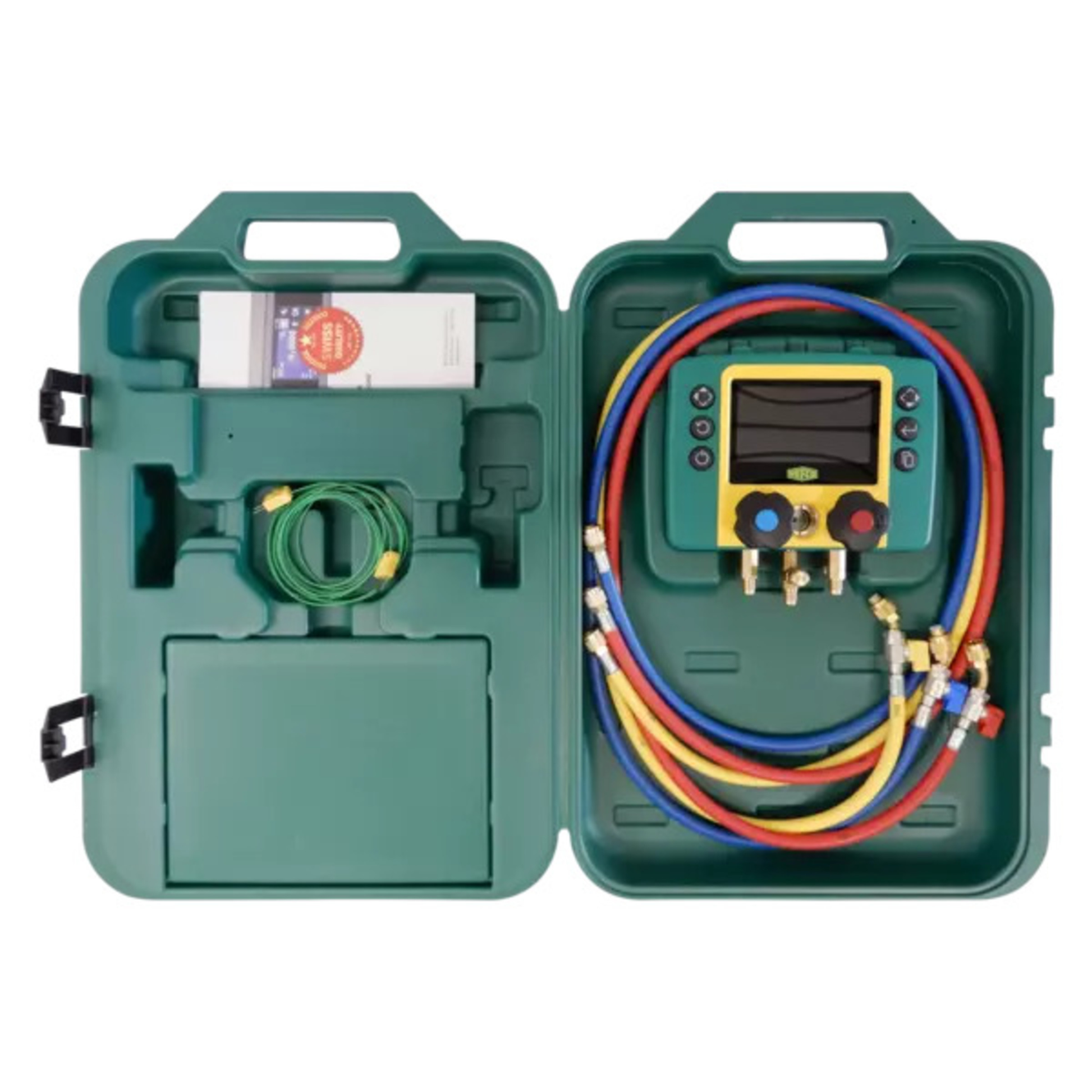

Included Accessories

• 2 × K-type temperature sensors
• 3 × 60" charging hoses with CA valves
• Calibration certificate
• Instruction manual
• Carrying case
