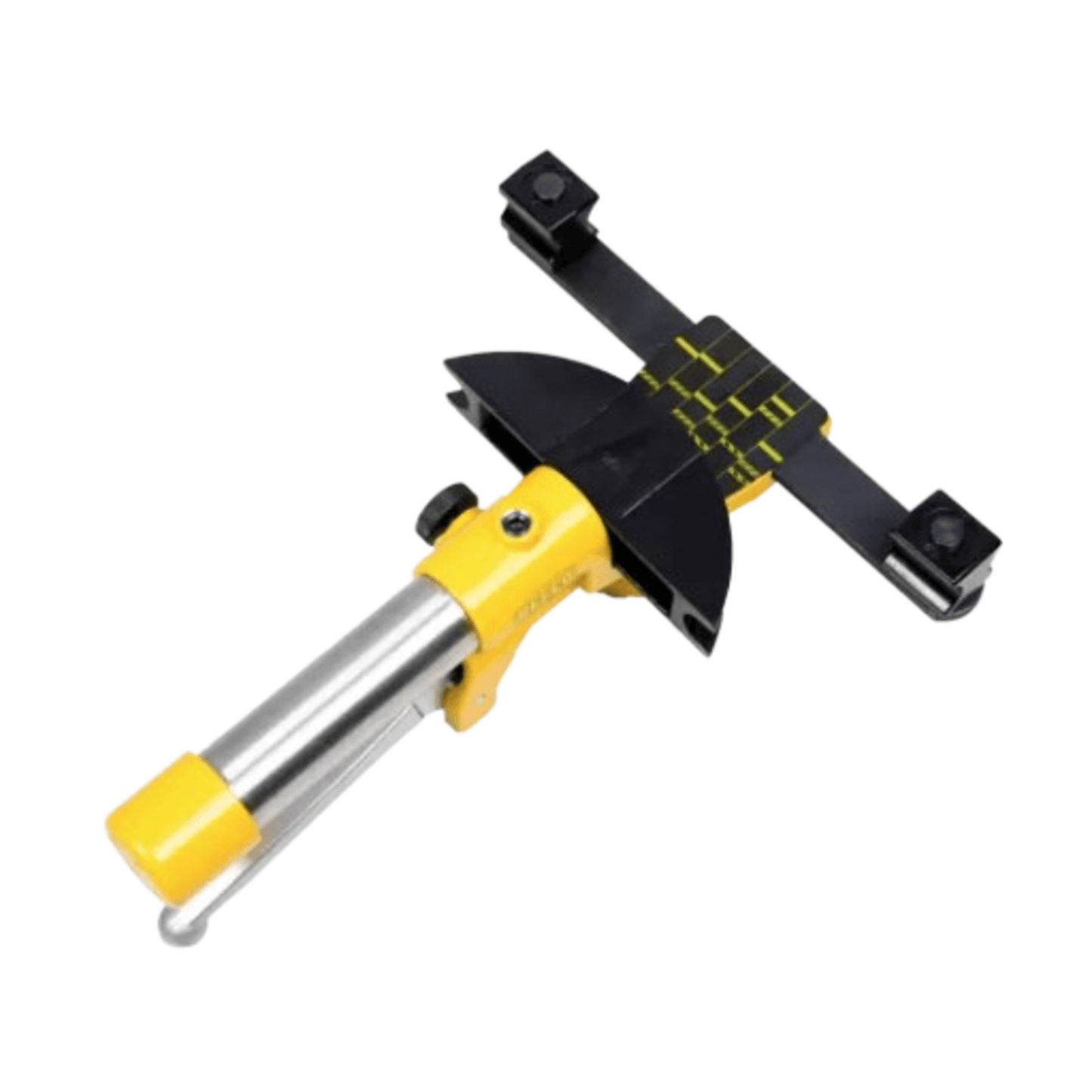

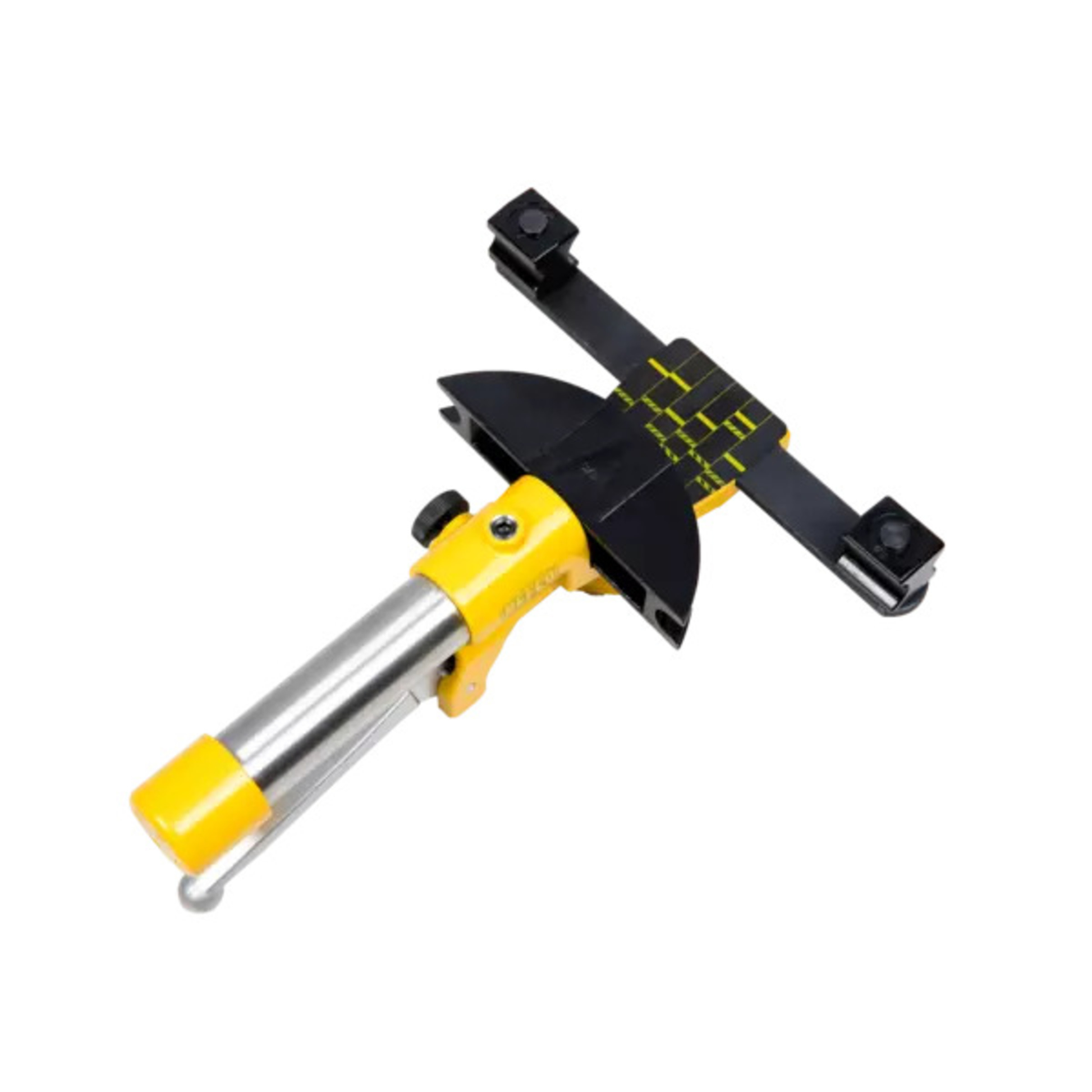

4688017 - Refco - HY-TELL, Hydraulic pipe bender

The Refco HY-TELL (4688017) is a hydraulic pipe bender designed for HVAC/R professionals working with soft copper tubing. Here's a detailed breakdown of its features and specifications:

🔧 Key Features:

• Pipe Compatibility: Bends soft copper pipes with diameters from 1/4" to 7/8".
• Formers Included: Comes with 7 bending formers and 3 counterformers for precise shaping.
• Angle Master: Integrated tool for reading bending angles directly during operation.
• Ergonomic Design: Lightweight (approx. 2.7 kg / 6 lbs), with a flat underside for stable bench use.
• Quick Tool Change: Click mechanism allows fast switching of formers without additional tools.
• Adjustable Handle: Can be customized to fit different hand sizes for better comfort.

📦 Package Contents:

• HY-TELL hydraulic bender
• 7 formers + 3 counterformers
• Angle Master
• Sturdy plastic carrying case

📐 Dimensions:

• Length: 31 cm (12.2")
• Width: 6.5 cm (2.6")
• Height: 4 cm (1.57")

🛠 Maintenance:

• Hydraulic oil refill recommended after approx. 10,000 uses.
