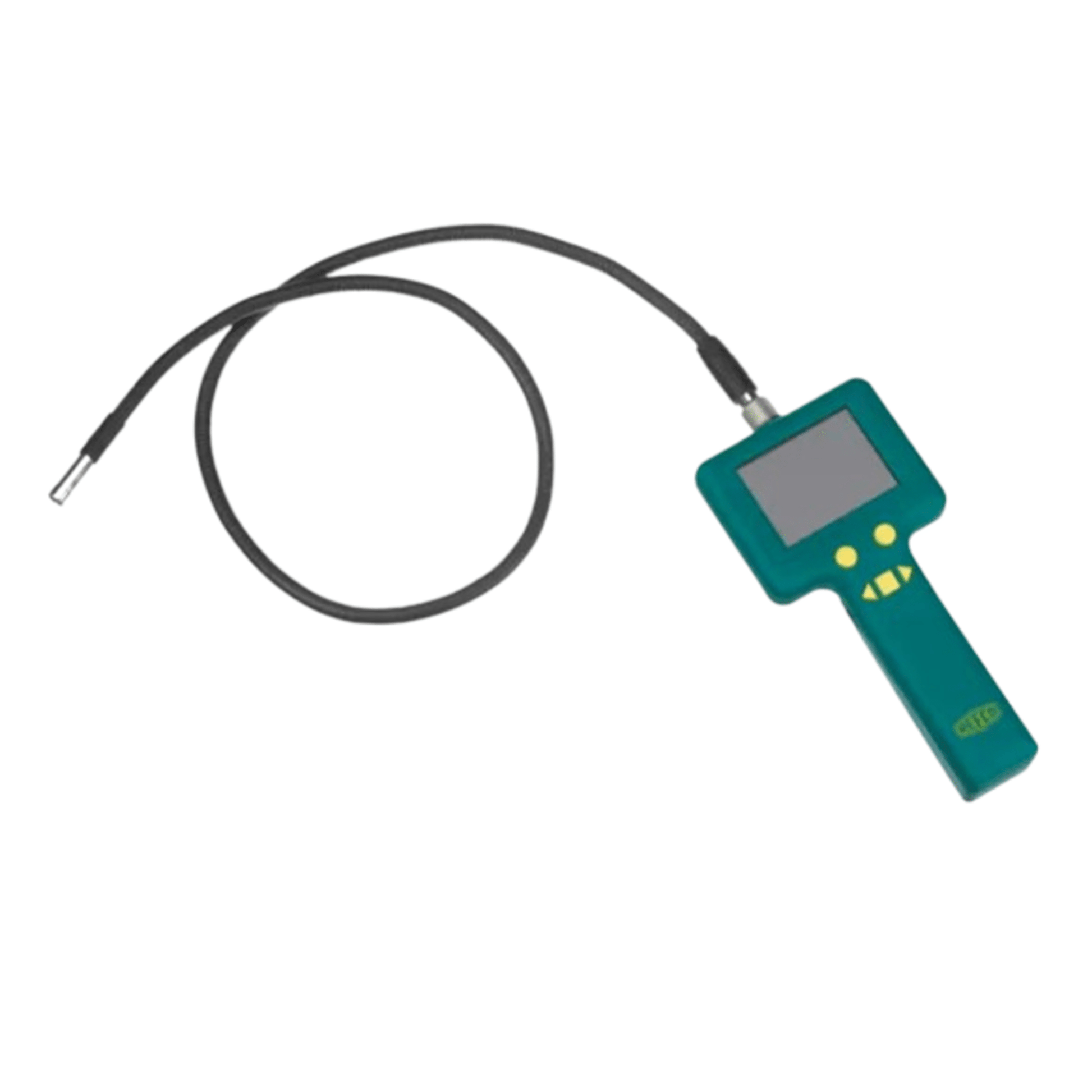

Refco 4679705, REF-SCOPE, Video inspection scope

The Refco REF-SCOPE (Part No. 4679705) is a video inspection camera designed for HVAC, automotive, and industrial applications where visual access is limited. Here's a detailed breakdown:

🔍 Refco REF-SCOPE – Video Inspection Scope

• Display: 3.5″ TFT digital panel
• Resolution: 320 × 240 pixels (RGB stripe)
• Brightness: 430 nits (cd/m²)
• Video Output: RCA phono jack
• Display Adjustments: Contrast, brightness, sharpness, color saturation
• Backlight: LED
• Image Orientation: Normal and mirrored display

📷 Camera & Shaft

• Camera Head Diameter: 0.39″ (10 mm)
• Shaft Diameter: 0.39″ (10 mm)
• Shaft Length: 42″ (approx. 1.07 m)
• Lighting: 6 integrated LED lamps with rotary switch control

🔋 Power & Operation

• Power Source: 4 × AA alkaline batteries
• Battery Life: Approx. 3 hours of full operation
• Operating Temperature: 32°F to 113°F (0°C to 45°C)
• Weight: 0.55 lb (without batteries)
• Dimensions: 8.9″ × 4.3″ × 1.7″

🎒 Included Accessories

• Shoulder bag
• Cleaning materials
• AV cable
• Mirror, hook, and extra-strong magnet attachments
