Vacuum pump - Refco

Here are the detailed specifications and features of the Refco RL-2 Vacuum Pump (Part No. 4661601):

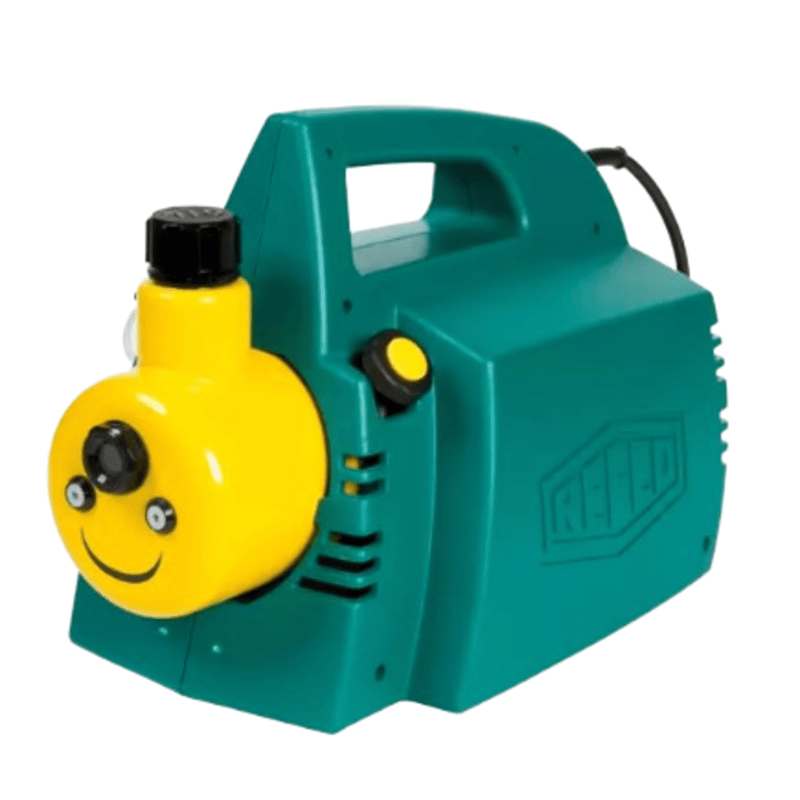

Refco RL-2-110/115V-50/60Hz Vacuum Pump

• Type: Two-stage rotary vane
• Free Air Displacement: 1.35 CFM
• Voltage: 110/115V, 50/60Hz
• Motor Power: 1/5 HP
• Speed: 2700 RPM
• End Vacuum: Down to 15 microns
• Oil System:
  • Internal oil circulation for optimal lubrication
  • Sight glass for easy oil level monitoring
  • Large oil filler neck for clean and spill-free filling
  • Includes DV-44 vacuum pump oil (0.5 pt / 250 ml)
• Connections: 1/4" SAE male
• Materials: Steel and polypropylene (yellow RAL 1023, green RAL 6026)
• Weight: Approx. 8.3 lbs
• Dimensions: 10.5" x 6.5" x 7.5"
• Additional Features:
  • Gas ballast valve
  • Special filter to reduce oil mist at the blow-out nozzle
  • Ergonomic handle
  • Integrated on/off switch protected against damage and accidental operation

This model is ideal for technicians needing a compact, lightweight, and reliable vacuum pump for HVAC and refrigeration servicing.
