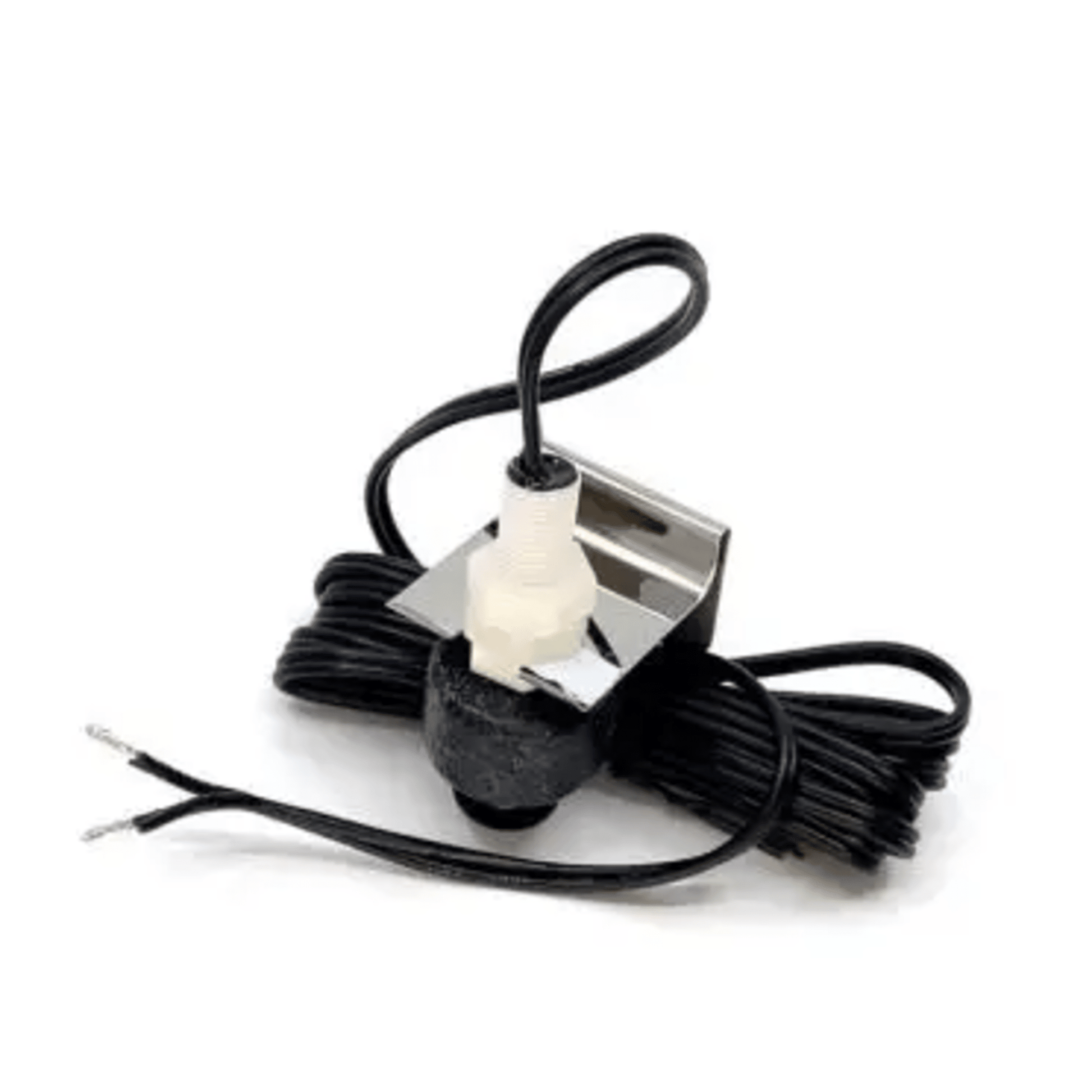

97647 - Rectorseal - SAFE-T-SWITCH SS3

Here’s a detailed overview of the RectorSeal 97647 – Safe-T-Switch SS3 (Legacy):

🔹 Product Overview

• Model: SS3 (Legacy)
• SKU: 97647
• Pack Size: 24 units per case
• Type: Condensate overflow safety switch
• Voltage: 24V AC
• Current Rating: 1.25 Amps
• Switch Type: Magnetic reed switch
• Mounting: Surface mount with steel bracket for drain pan

🔹 Key Features

• Installation: Clips securely to the edge of most primary or auxiliary drain pans using a patented steel bracket.
• Functionality: Detects clogged condensate drains and shuts off the HVAC system to prevent overflow damage.
• Design: Slim profile allows off-center installation; water-sealed reed/magnet switch ensures durability
• Compliance: UL 508 listed; meets IMC codes 307.2.3.4 & 307.2.5
• Durability: Made of metal and Schedule 40 PVC components
• Warranty: Minimum 3-year limited warranty (no registration required)

🔹 Dimensions & Specs

• Size: 5.5" × 1.75" × 8.25"
• Weight: ~0.16 oz per unit
• Temperature Range: 32°F to 90°F
• Contact Type: Normally closed
• Connector Type: Plug-in
