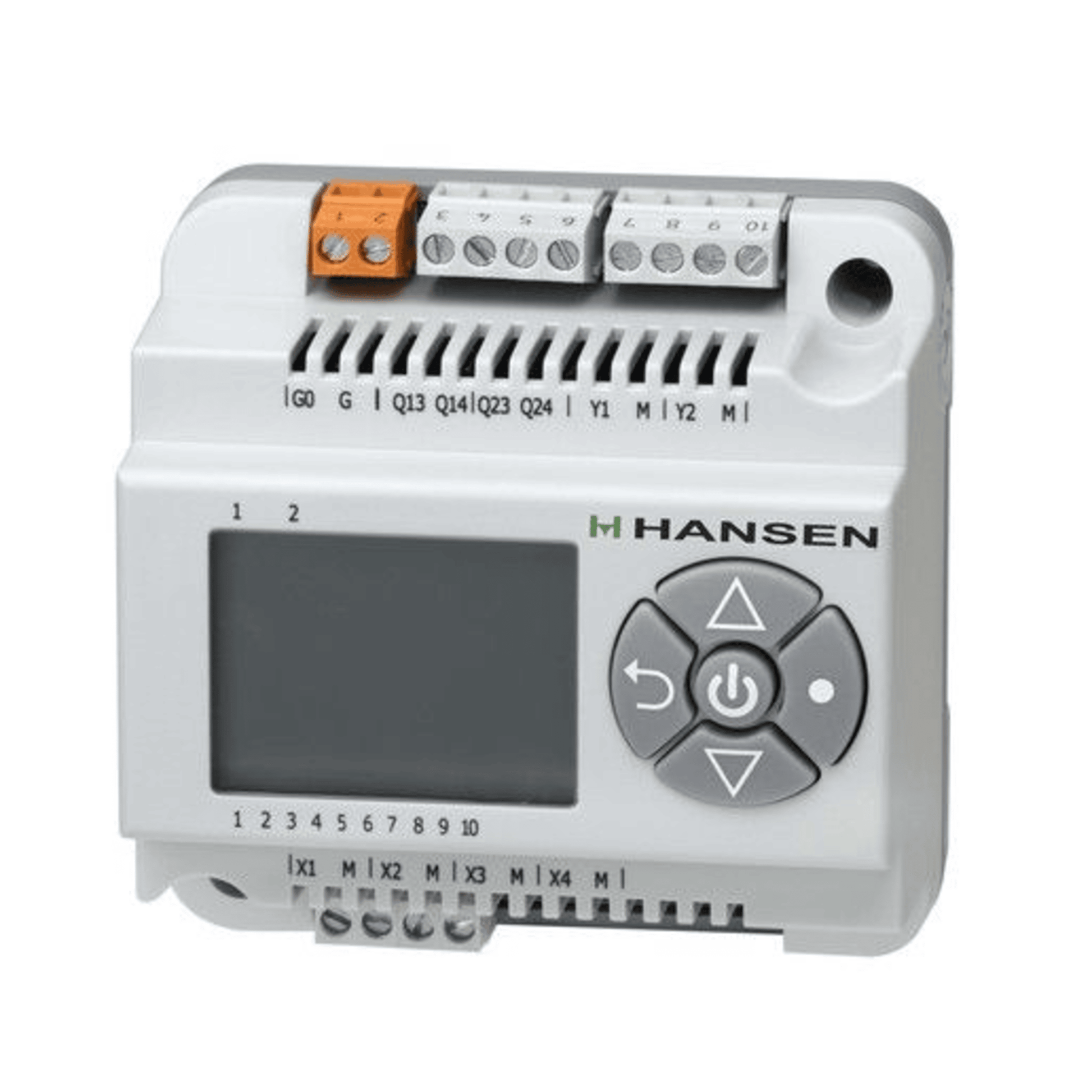

PXVC-L - Hansen - PXVC, Level Control, 24VAC/DC, 3 VA

The Hansen PXVC-L is a universal level control module designed for refrigerant level management in industrial refrigeration systems. It is part of the PXVC series of intelligent, single-loop PID controllers.

Key Specifications

• Model: PXVC-L
• Function: Refrigerant level control
• Power Supply: 24 VAC/DC, 3 VA
• Output Options:
  • Digital (pulse width)
  • Analog (0–20 mA, 0–10 V)
  • Alarm output
• Display: Large backlit LCD with 10% incremental resolution
• User Interface: Intuitive button interface with alternate menus for monitoring setpoints and sensor readings
• Operating Temperature Range:
  • System: -76°F to +250°F (-60°C to +121°C)
  • Environment: 32°F to 122°F (0°C to 50°C), <95% RH (non-condensing)
• Certifications: CE (EN60 730-2-9, EN 60 259), NEMA 1 / IEC 60536 Class II
• Enclosure Rating: IP30
• Dimensions: Approx. 6" W × 5" H × 3" D
• Weight: ~1 lb

Features

• PID Control: Pre-configured for level control with adjustable P-I-D tuning parameters
• Remote Alarm Output: For system alerts
• Quick Connect Terminals: Plug-style terminal blocks for easy wiring
• Ramp-Up Delay: Two-minute delay to stabilize system response at startup
• Field Tuning: Only P-I-D parameters are user-adjustable; other configurations are factory-set
• Applications: Designed to work with Hansen motorized control valves and pulse expansion valves for precise refrigerant level management
