Malco - Stud Crimper - PL1R

Malco PL1R Punch Lock / Stud Crimper.

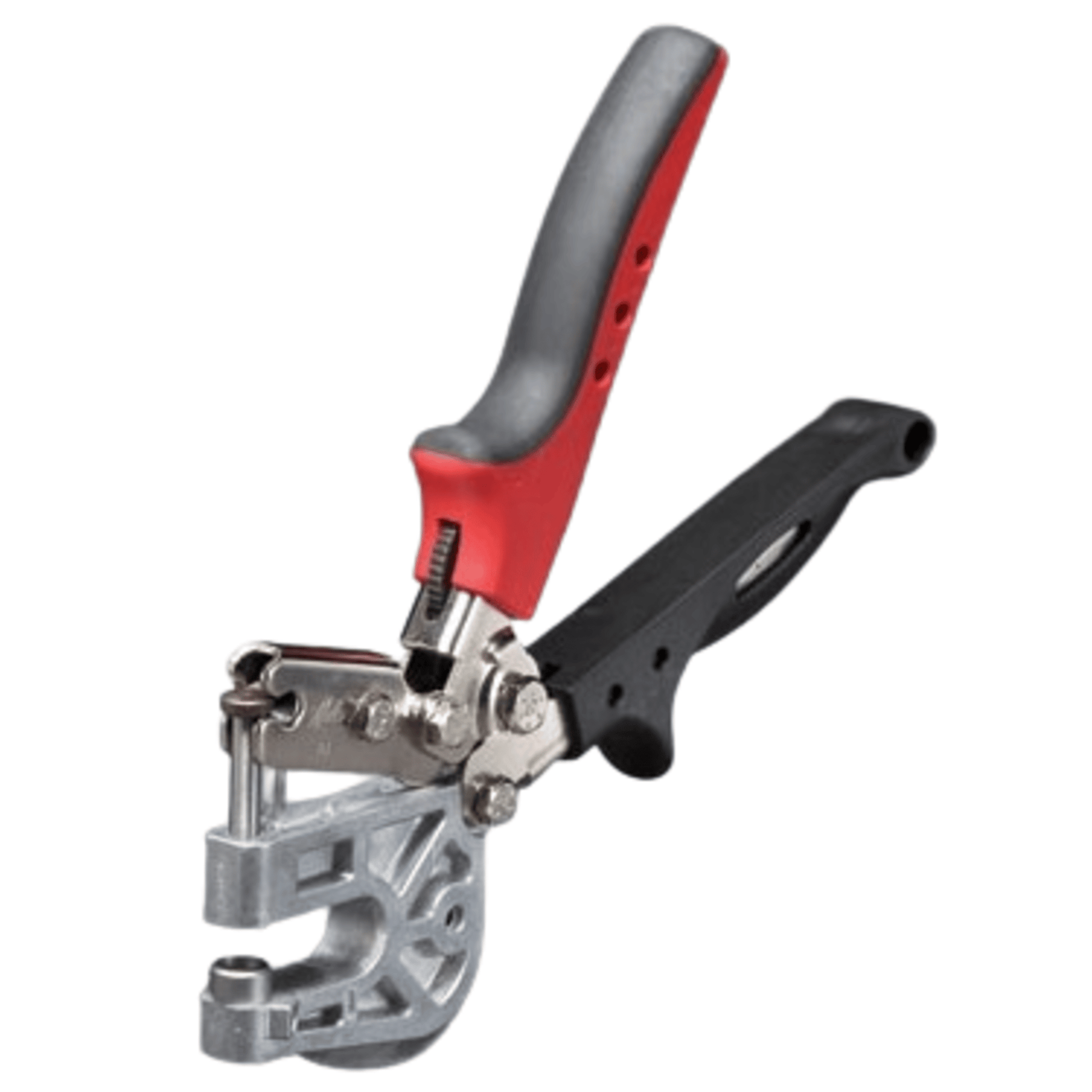

The PL1R Metal Stud Crimper features a unique punch and die shape that creates a rectangular crimp connection by bending over layered thicknesses of channel and stud at one time to form a sturdy bond without the use of fasteners. Lightweight and compact size allows the user to work overhead with ease. The tool body consists of a strong, die-cast aluminum “C” frame head and rust-resistant, nickel plated steel handles and parts stampings. The long-life punch and die are formed from tool steel and are also easily replaced on the job.

Features

• Secures any width stud and runner without screws or other fasteners. Punch and die are easily replaceable. Maximum capacity 22 gauge stud and runner.

Product Details

• Part Number: PL1R
• Brand: Malco
• Throat Depth: 1-1/2 in. (38.1 mm)
• Net Weight: 16 oz. (454 g)
• Replacement Parts: PLD1 Replacement Punch and Die

Maximum capacity 22 gauge stud and runner.
