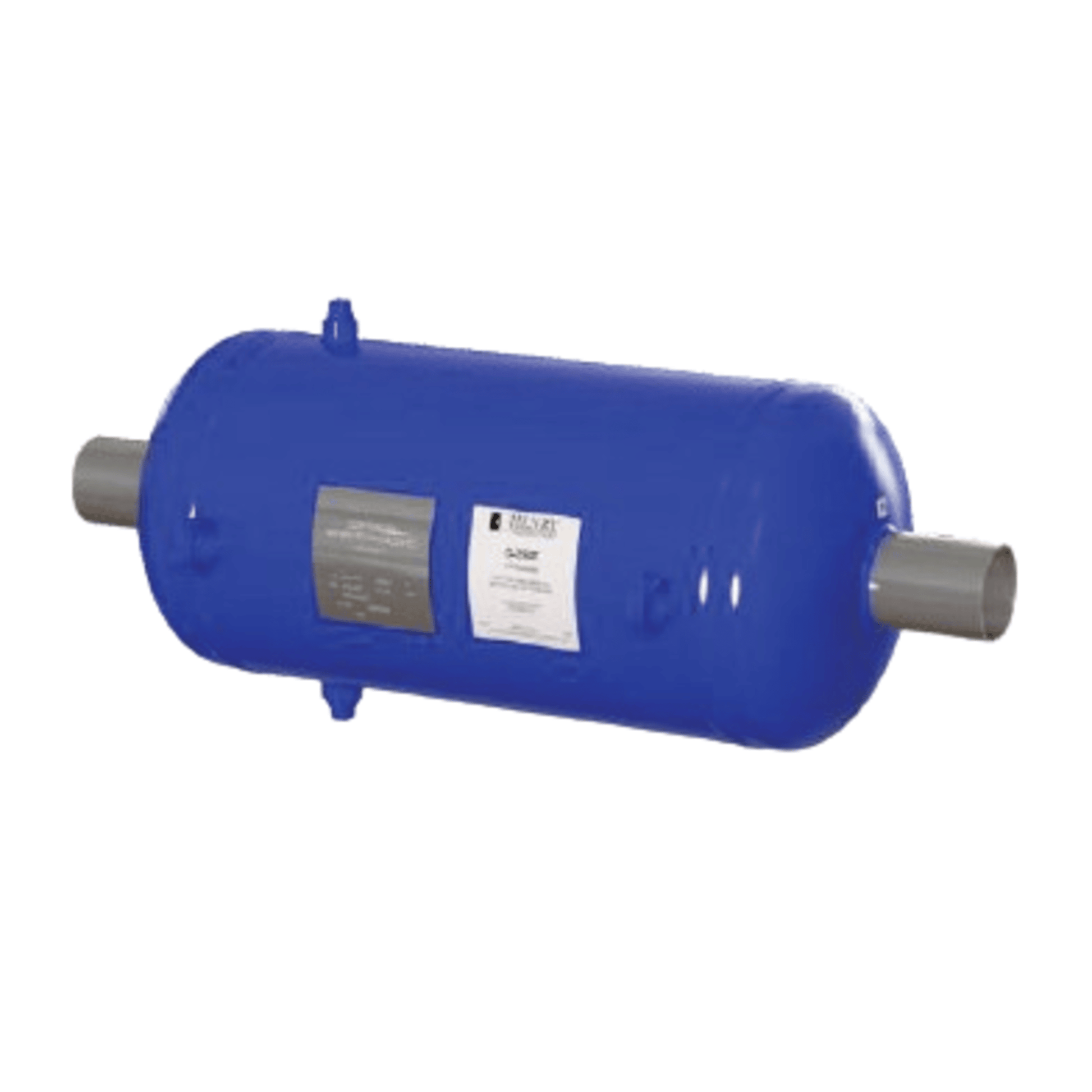

Henry Oil Separator, All-Welded ASME, 3" BW - 76mm

The Henry O-350 is a 3" Butt Weld (76mm) All-Welded ASME Oil Separator, designed for use in industrial refrigeration systems. Here's a detailed breakdown of its features and specifications:

?? Product Overview

• Model: O-350
• Type: Screen-Type Oil Separator
• Connection: 3" Butt Weld (76mm)
• Construction: All-welded steel body
• Compliance: ASME certified

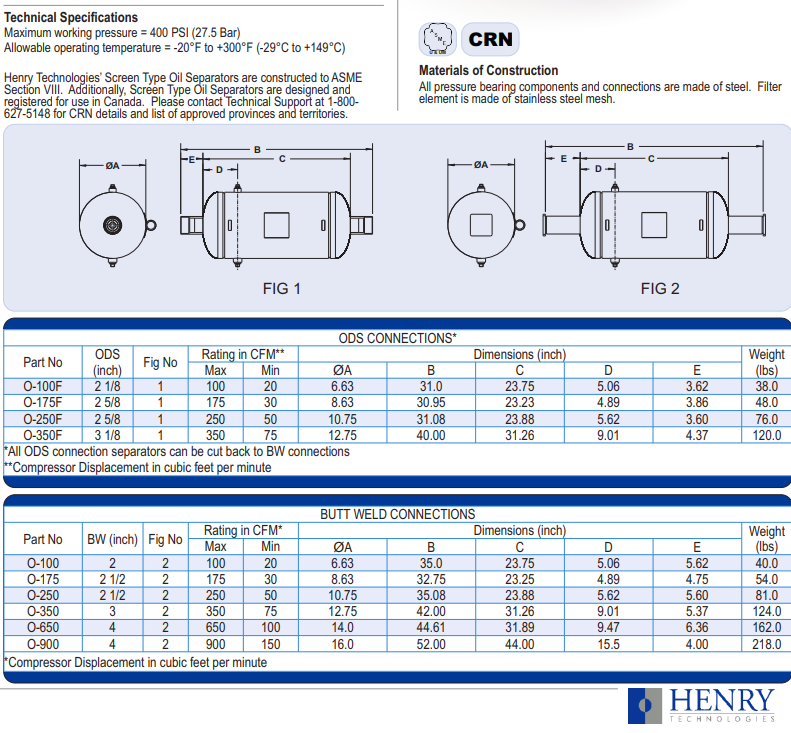

?? Technical Specifications

• Application: Removes oil from discharge gas and returns it to the compressor, either directly or via an oil management system
• Design Pressure: Typically rated for 450 PSI or higher (ASME standard)
• Material: Heavy-duty carbon steel with corrosion-resistant coating
• Mounting: Vertical installation
• Weight: Approx. 115 lbs
• Finish: Powder-coated for durability

?? Performance Features

• Internal Screen Element: Captures oil droplets from high-velocity discharge gas
• Oil Return Port: Facilitates oil return to the compressor or oil reservoir
• Use Case: Ideal for large-scale industrial refrigeration systems, especially where oil carryover is a concern

?? Installation Notes

• Install in the discharge line immediately after the compressor
• Ensure proper orientation for oil drainage and return
• Compatible with HFC, HCFC, and natural refrigerants (check material compatibility)
