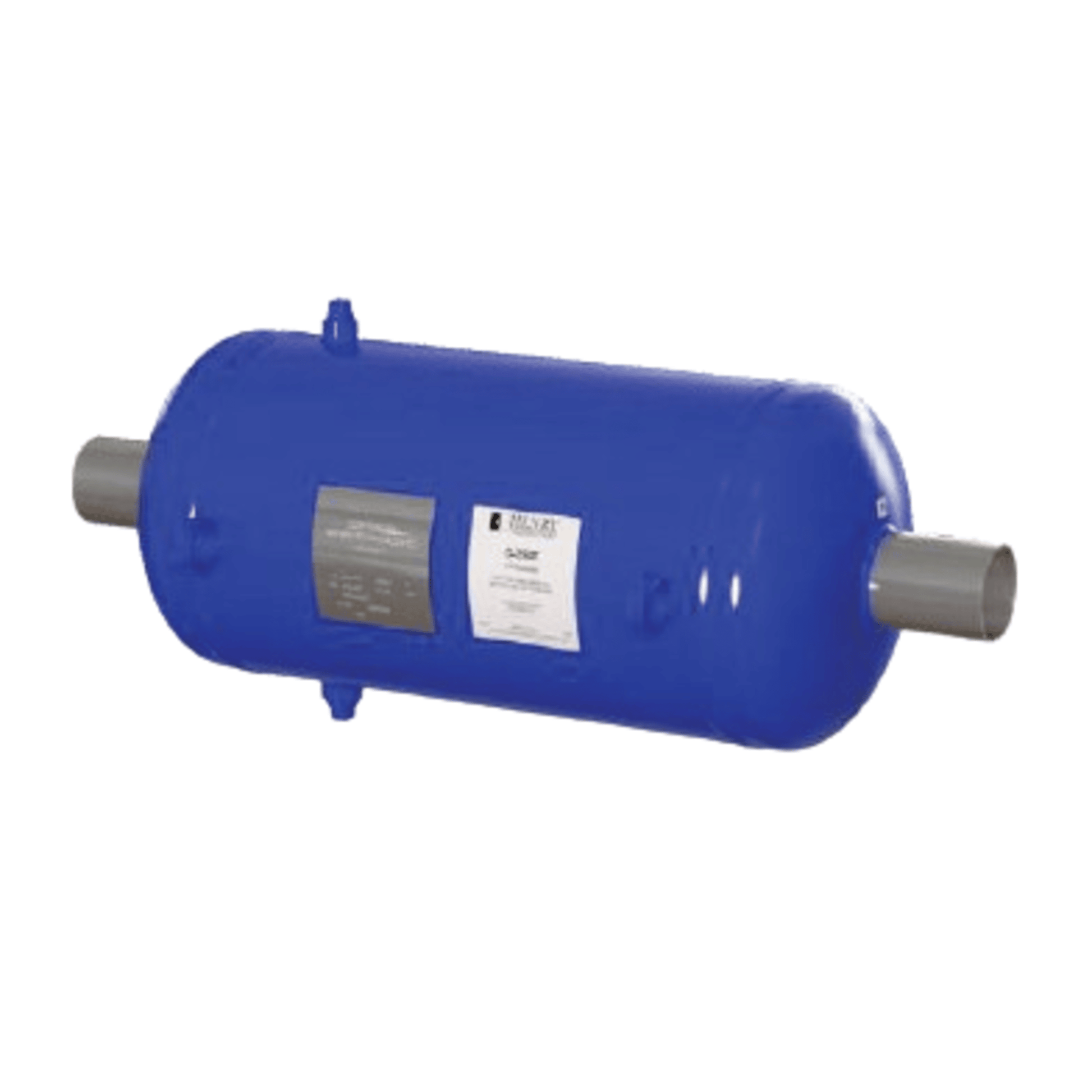

O-175 - Henry - 2-1/2 BW - 64mm - All Welded ASME

The function of a Screen Type Oil Separator is to remove oil from
the discharge gas and return it to the Compressor either directly or
through an Oil Management System.

Applications
Similar to the Coalescing Separators, Screen Type Oil Separators are
typically used on larger industrial refrigeration systems. The stainless steel
screen element offers a lower pressure drop compared to coalescing filters.
Oil droplets are removed from the hot gas discharge by the stainless steel
screen. The oil then drains and collects in the separator before being
returned to the compressor. Henry Technologies’ Screen Type Oil
Separators are suitable for use with ammonia, HCFC and HFC refrigerants,
and their associated oils, as well as other industrial fluids non-corrosive to
steel.

Main Features
-ODS and Butt Weld refrigerant connections
-NPT oil connections
-Stainless steel 303 screen mesh filter media
-Oil float valve assembly and shut off valves available as optional
accessories
-All welded design
-Lower pressure drop than coalescing models

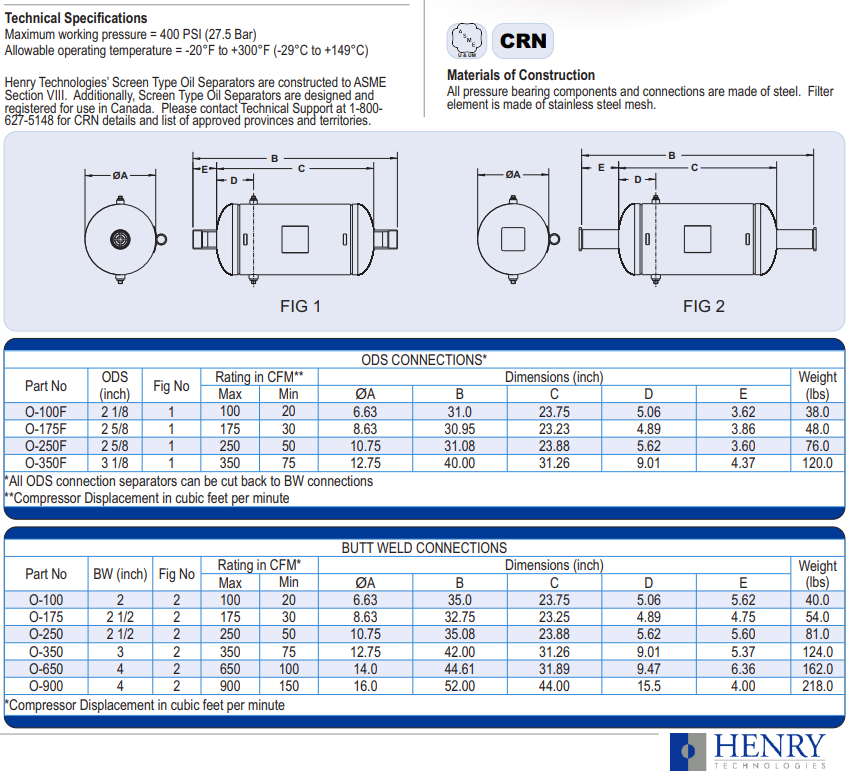

Technical Specifications
Maximum working pressure = 400 PSI (27.5 Bar)
Allowable operating temperature = -20°F to +300°F (-29°C to +149°C)
Henry Technologies’ Screen Type Oil Separators are constructed to ASME
Section VIII. Additionally, Screen Type Oil Separators are designed and
registered for use in Canada. Please contact Technical Support at 1-800-
627-5148 for CRN details and list of approved provinces and territories.
