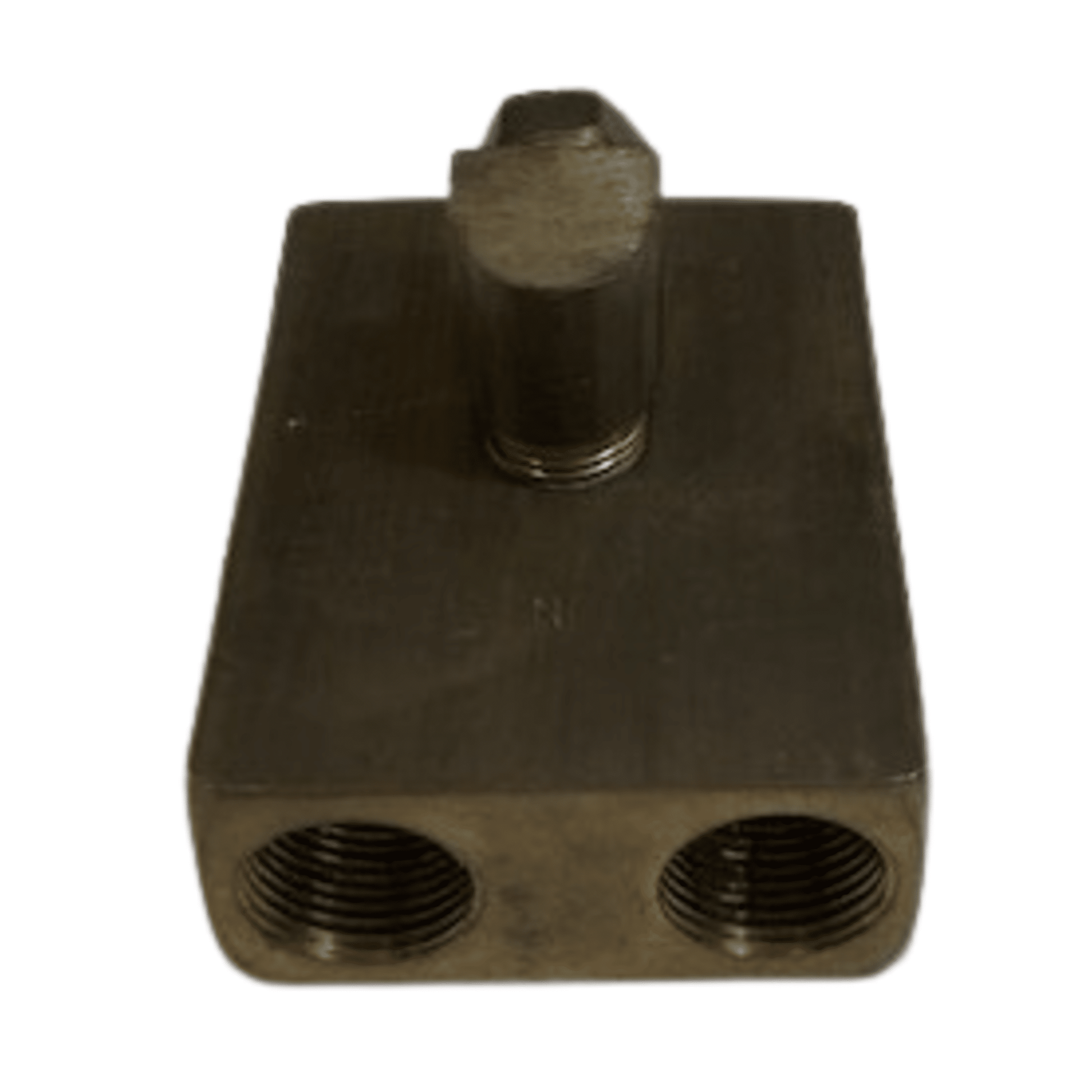

H711 1/4 - Monarch - 1/4 Adaptor

The Monarch H711 1/4 Adaptor is a specialized dual by-passing nozzle adaptor designed for use with Monarch BPS oil nozzles. Here's a detailed breakdown:

🔧 Product Specifications – Monarch H711 1/4 Adaptor

• Type: Dual by-passing adaptor
• Material: Made from 3/4" x 1 3/4" rectangular brass stock
• Length: 2 1/8"
• Inlet Connection: 1/8" female NPT, located on the side of the adaptor
• By-pass Connection: 1/4" female NPT, located at the rear
• Function: Designed to accommodate two BPS nozzles, combining inlet and by-pass flows
• Use Case: Ideal for industrial oil burner systems requiring dual nozzle configurations
