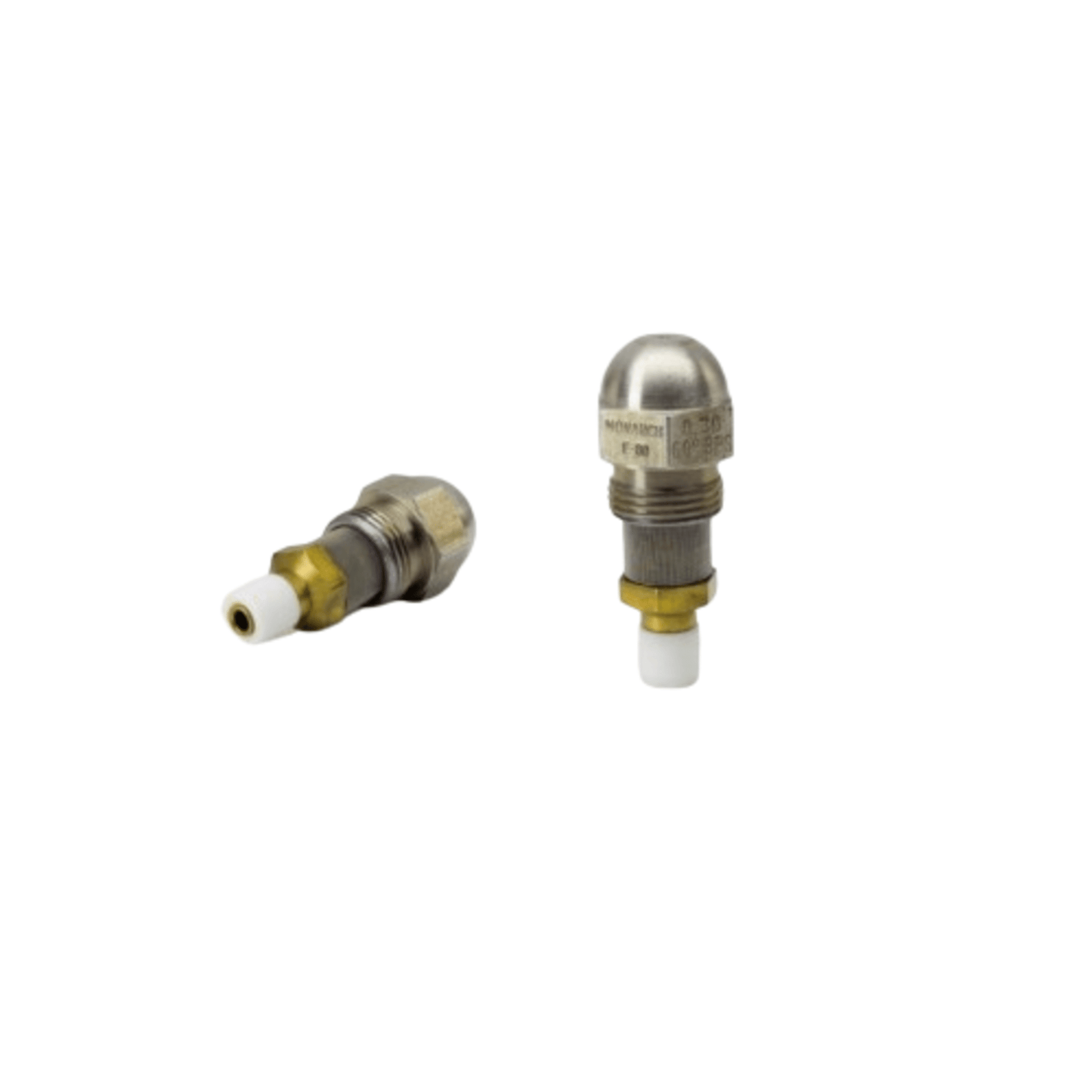

9.50 80 BPS - Monarch - Oil Nozzle

9.50 80 BPS - Monarch - Oil Nozzle

SKU: MON-9.5080BPS

Regular price $86.25 CAD
Regular price Sale price $86.25 CAD
Sale Sold out
Shipping calculated at checkout.

The Monarch 9.50 80 BPS Oil Nozzle is a high-performance industrial nozzle designed for use in oil burner systems requiring precise fuel atomization and flow control. Here's a detailed breakdown:

🔧 Product Specifications

  • Model: 9.50 80 BPS
  • Flow Rate: 9.50 GPH (gallons per hour) at 100 PSI
  • Spray Angle: 80°
  • Spray Pattern: BPS (By-Passing Swirl) – allows variable orifice flow rates by diverting fluid from the swirl chamber
  • Material:
    • Tip & Disc: High-chrome stainless steel
    • Strainer Support: Brass with Monel screen (120 mesh)
    • O-ring: Viton
  • Operating Pressure: Rated for 100 PSI on #2 fuel oil; can be operated up to 250 PSI for higher viscosity oils (up to 70 SSU)
  • Spray Angle Variation: Widens by 5°–10° when the by-pass line is fully open
