Malco - Metal Snap Lock Punch - SL1R

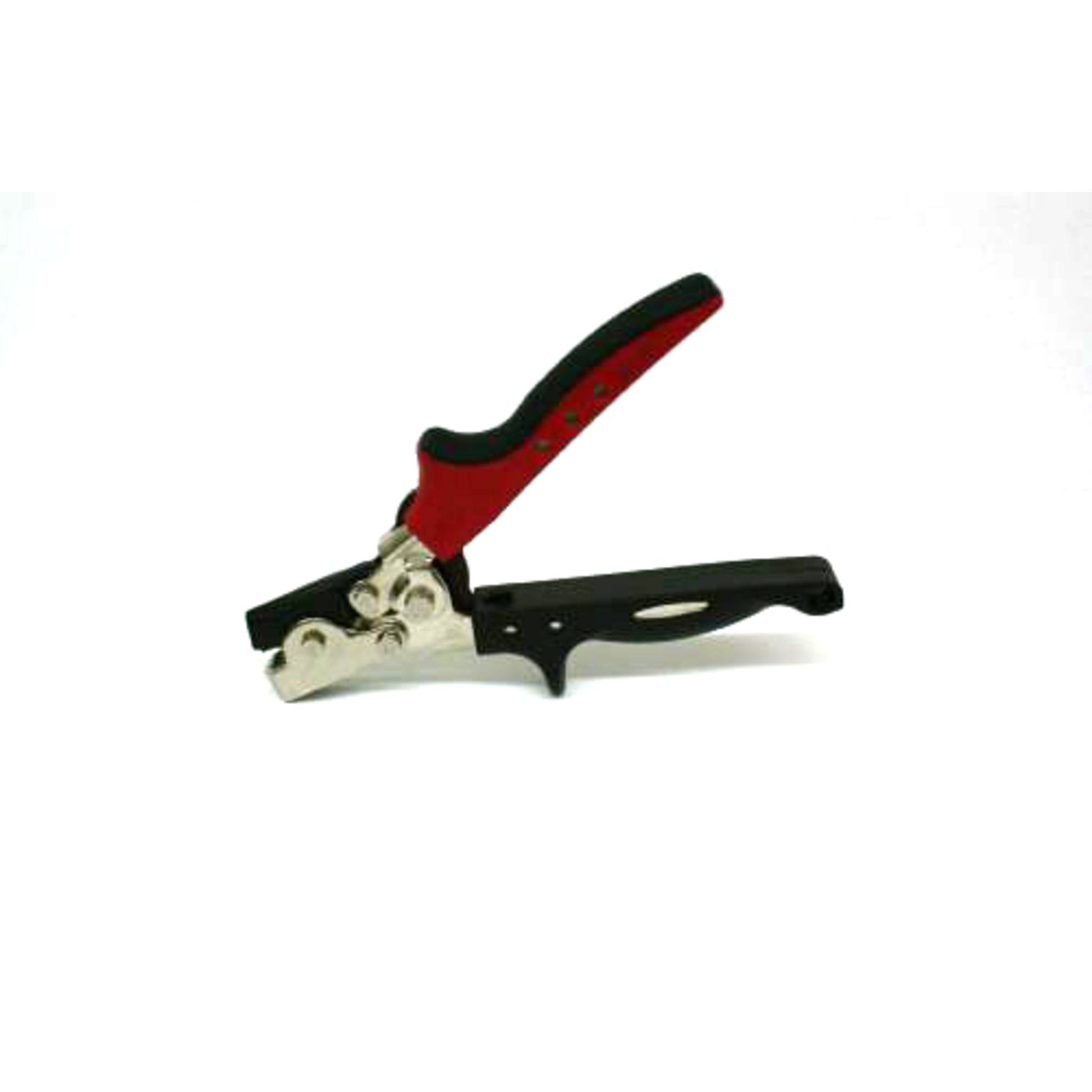

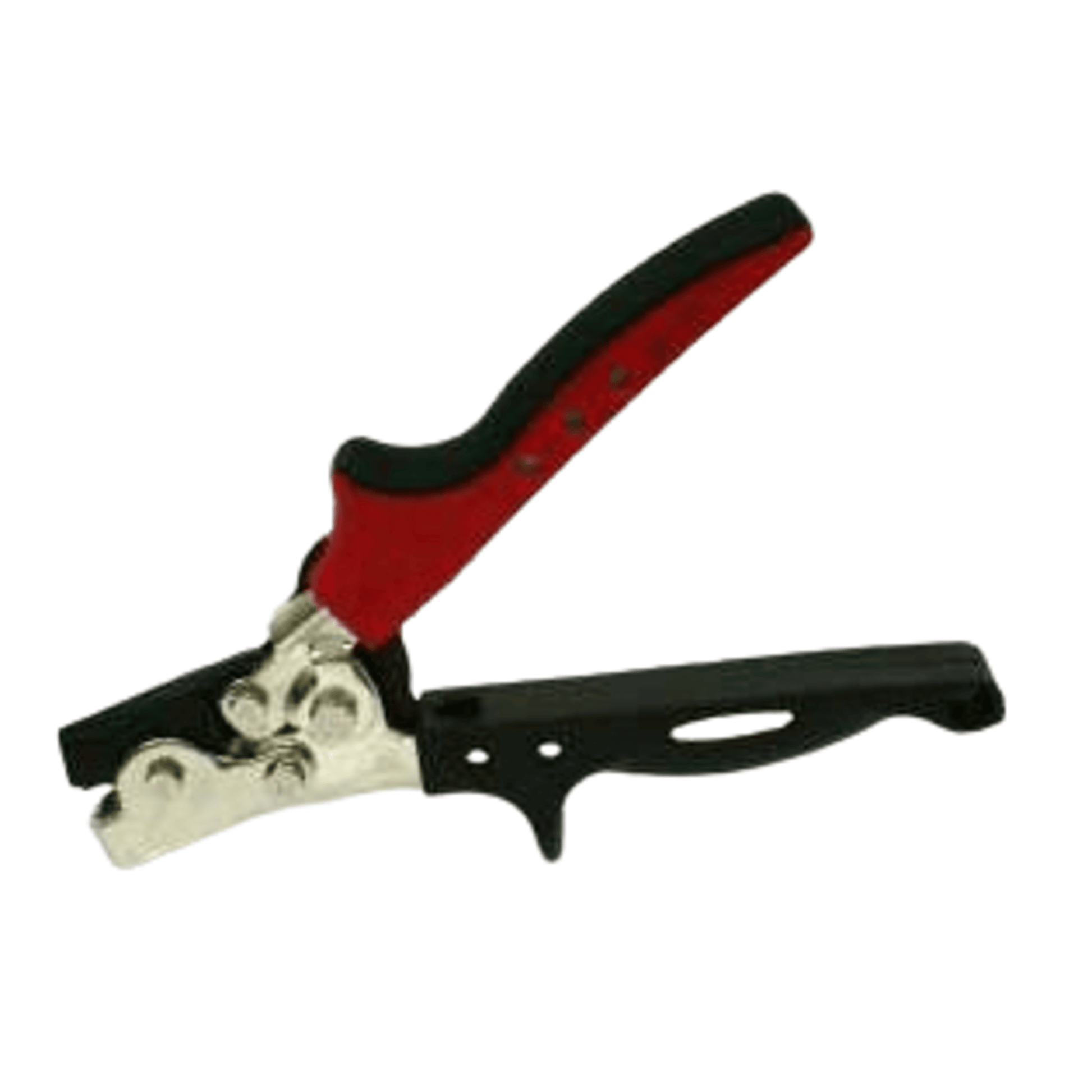

Malco SL1R Snap Lock Punch.

Join sheet metal, duct and pipe sections economically with the Snap Lock Punch. Punches raise a louvered shaped projection on metal edge for locking into rolled edge of sheet or piece to be joined. Metal pieces snap together and are fastened securely. Compound Handle Leverage for maximum ease of operation. Punch impression spaced 3/8 in. from edge of metal. Heavy forged cutting jaw.

Features

• Easy Hand Motion and Greater Control: A superior compound leverage mechanism offers maximum ease of operation. Comfortable opening and spring-actuated handles give additional comfort and control. Ergonomic Redline Handles with unique one-hand operation latch offer maximum compound leverage performance and natural fit and feel.
• SL1R joins sheet metal, duct and pipe sections economically.

Product Details

• Part Number: SL1R
• Brand: Malco
• Throat Depth: 3/8 in. (9.5 mm)
• Variable Leverage Ratio (High / Low) throughout stroke: 10.8 to 1.0 - 11.7 to 1.0
• Jaws: Alloy Steel Forging / Carbon Steel Shell
• Length: 8 in. (203 mm)
• Net Weight: 16 oz. (454 g)
• Capacity – Aluminum: .035 in. (0.89 mm)
• Capacity – Copper: .023 in. (0.58 mm)
• Capacity – Stainless Steel: 26 Gauge / .018 in. (0.46 mm)
• Capacity – Galvanized Steel: 24 Gauge / .028 in. (0.71 mm)
• Capacity – Mild Steel: 24 Gauge / .024 in. (0.61 mm)
• Replacement Parts: 5018 Replacement Spring
