Malco - Hand Notcher, 1" - N2R

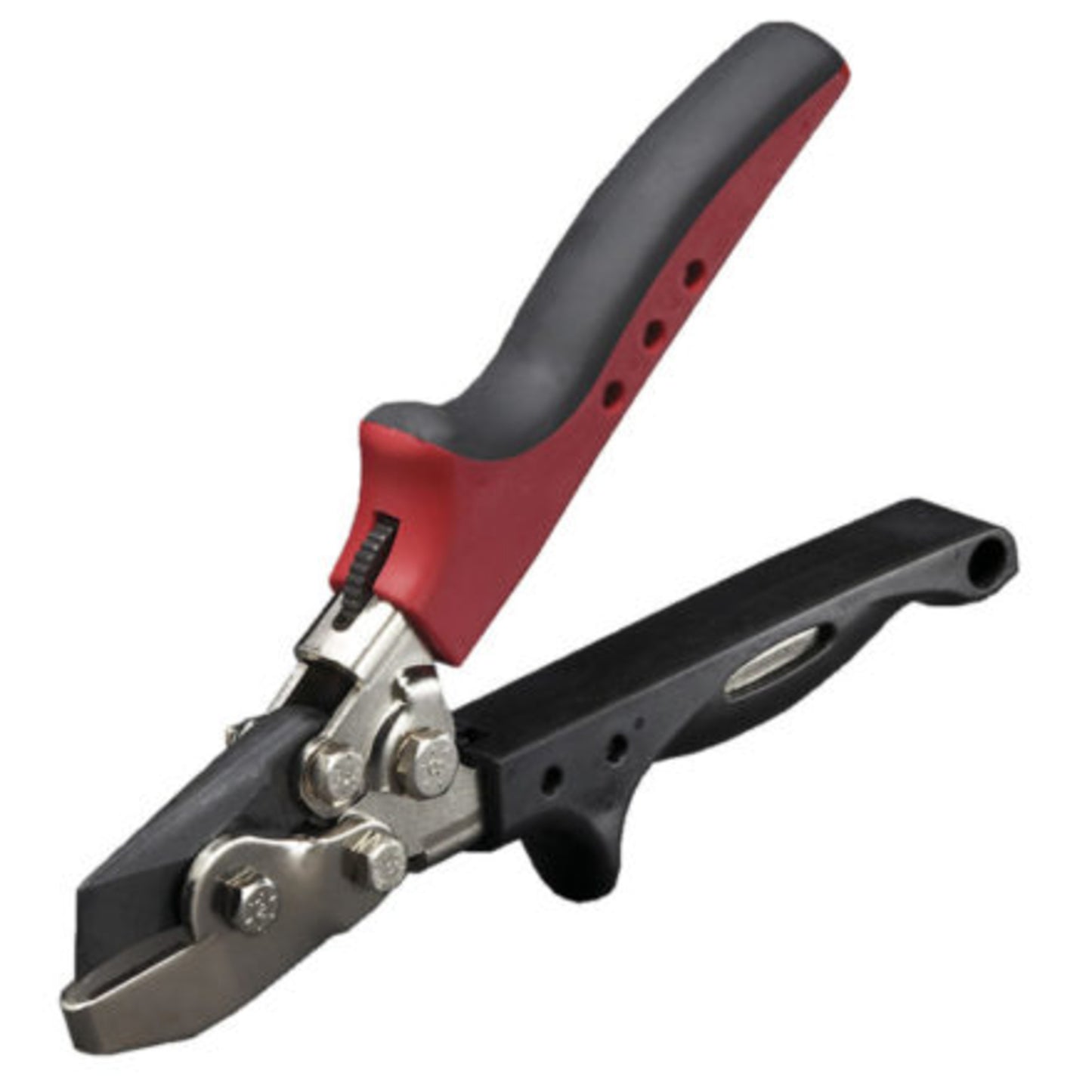

Malco N2R One-Inch Hand Notcher.

The N2R Notcher punches a BIG 1 in. (25.4 mm) deep “V” notch in common 24 to 30 (0.71-0.41 mm) ga. galvanized sheet metal quickly and easily. Folding and fabricating metal ductwork is easier than ever with the full 1 inch clearance the N2R single operation notcher provides. Precision-ground steel upper jaw and hardened stamped steel components.

Features

• Easy Hand Motion and Greater Control: A superior compound leverage mechanism offers maximum ease of operation. Comfortable opening and spring-actuated handles give additional comfort and control. Ergonomic Redline Handles with unique one-hand operation latch offer maximum compound leverage performance and natural fit and feel.
• Both the N1R and N2R Notchers make Fast, Clean, 30° “V” shaped cuts for HVAC duct fabrication.

Product Details

• Part Number: N2R
• Brand: Malco
• Throat Depth: 1 in. (25.4 mm)
• Variable Leverage Ratio (High / Low) throughout stroke: 6.6 to 1.0 - 7.0 to 1.0
• Jaws: Investment Casting / Carbon Steel Shell
• Net Weight: 17 oz. (482 g)
• Capacity – Aluminum: .035 in. (0.89 mm)
• Capacity – Copper: .023 in. (0.58 mm)
• Capacity – Stainless Steel: 26 Gauge / .018 in. (0.46 mm)
• Capacity – Galvanized Steel: 24 Gauge / .028 in. (0.71 mm)
• Capacity – Mild Steel: 24 Gauge / .024 in. (0.61 mm)
• Replacement Parts: 5018 Replacement Spring
