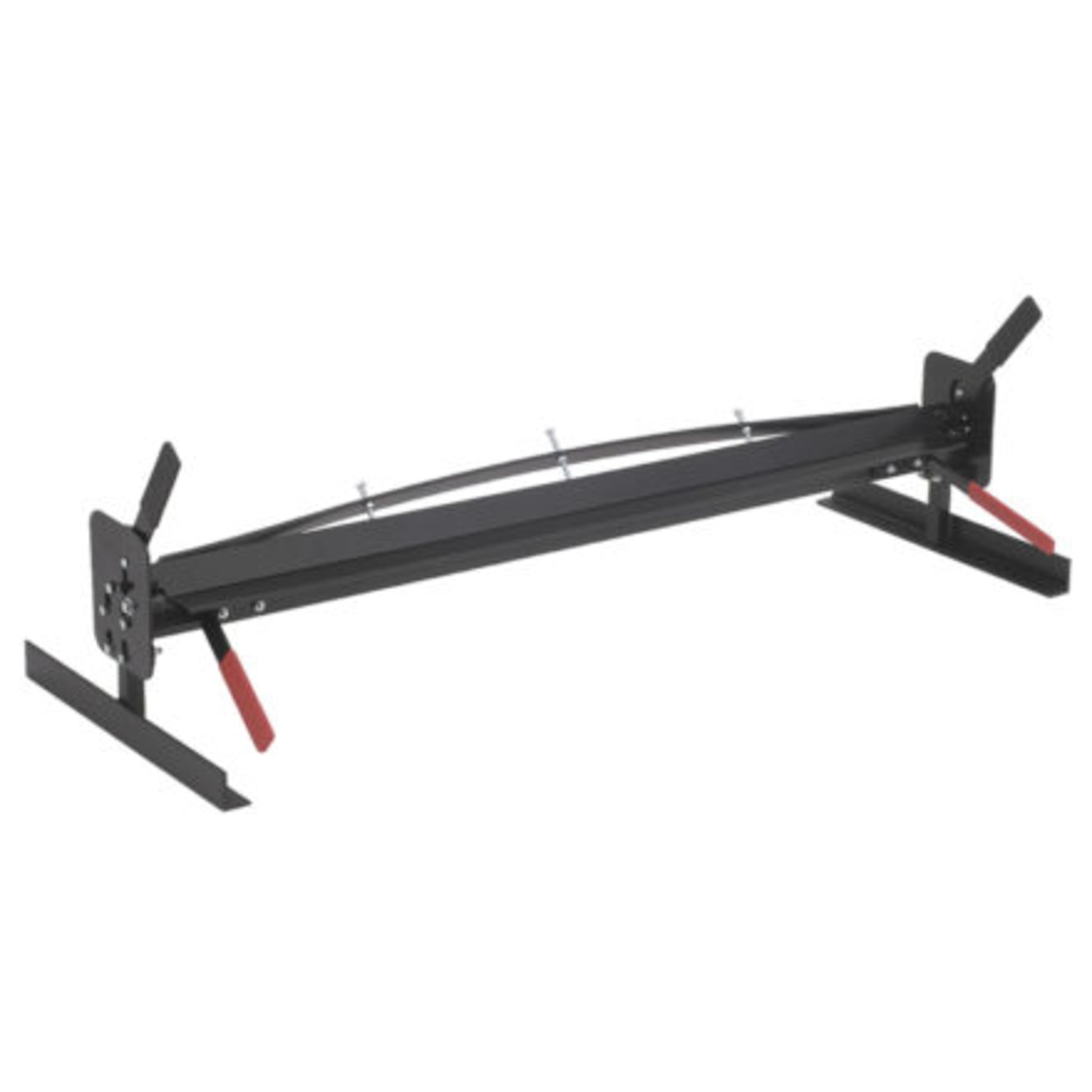

Malco MB48A, MINI BRAKE

The Malco MB48A Mini Brake is a portable and versatile tool designed for fabricating various metal components on the job site. Here are the key features and specifications:

Key Features:

• Portability: The MB48A is lightweight and can be easily transported to different job sites. It can be used on a workbench, tailgate, or with optional legs
• Bending Capacity: It can produce bends up to 135 degrees in sheet metals, including aluminum, copper, and 22-gauge galvanized steel
• No Fixed Throat Depth: This feature allows for bending sheet metal stock up to 4 feet wide, in any length, making it highly versatile for various fabricating tasks
• Strengthening Ribs: The anvil and apron are equipped with strengthening ribs to ensure consistent bends
• Cam-Over-Center Clamps: These clamps keep the anvil secure in any position, enhancing safety during operation
• Adjustable Components: The MB48A includes an adjustable strengthening rib on the anvil, preset at the factory for optimal performance

Specifications:

• Material Capacities:
  • Aluminum: 18 Ga. (0.040 in / 1.02 mm)
  • Soft Copper: 18 Ga. (0.040 in / 1.02 mm)
  • Zinc: 18 Ga. (0.040 in / 1.02 mm)
  • Galvanized Steel: 22 Ga. (0.034 in / 0.86 mm)
  • 55% Al-Zn Mild Steel: 22 Ga. (0.030 in / 0.76 mm)
• Bend Width: Maximum 48 inches (1.2 m), Minimum 2 inches (50.8 mm)
• Flange Height: Ranges from 1/2 inch (12.7 mm) to 3 inches (76.2 mm)
• Weight: Approximately 99 lbs (44.9 kg)

Applications:

The MB48A is ideal for fabricating plenums, large transitions, narrow roof flashing, and structures as small as a 4-inch square. Its compact size and portability make it perfect for on-the-job use, providing flexibility and precision
