Crown Champion ignition assembly - K97F

Original price $117.00 - Original price $117.00
Original price
$117.00
$117.00 - $117.00
Current price $117.00
SKU CRO-K97F
Availability:
Out the Door in 7-10 days

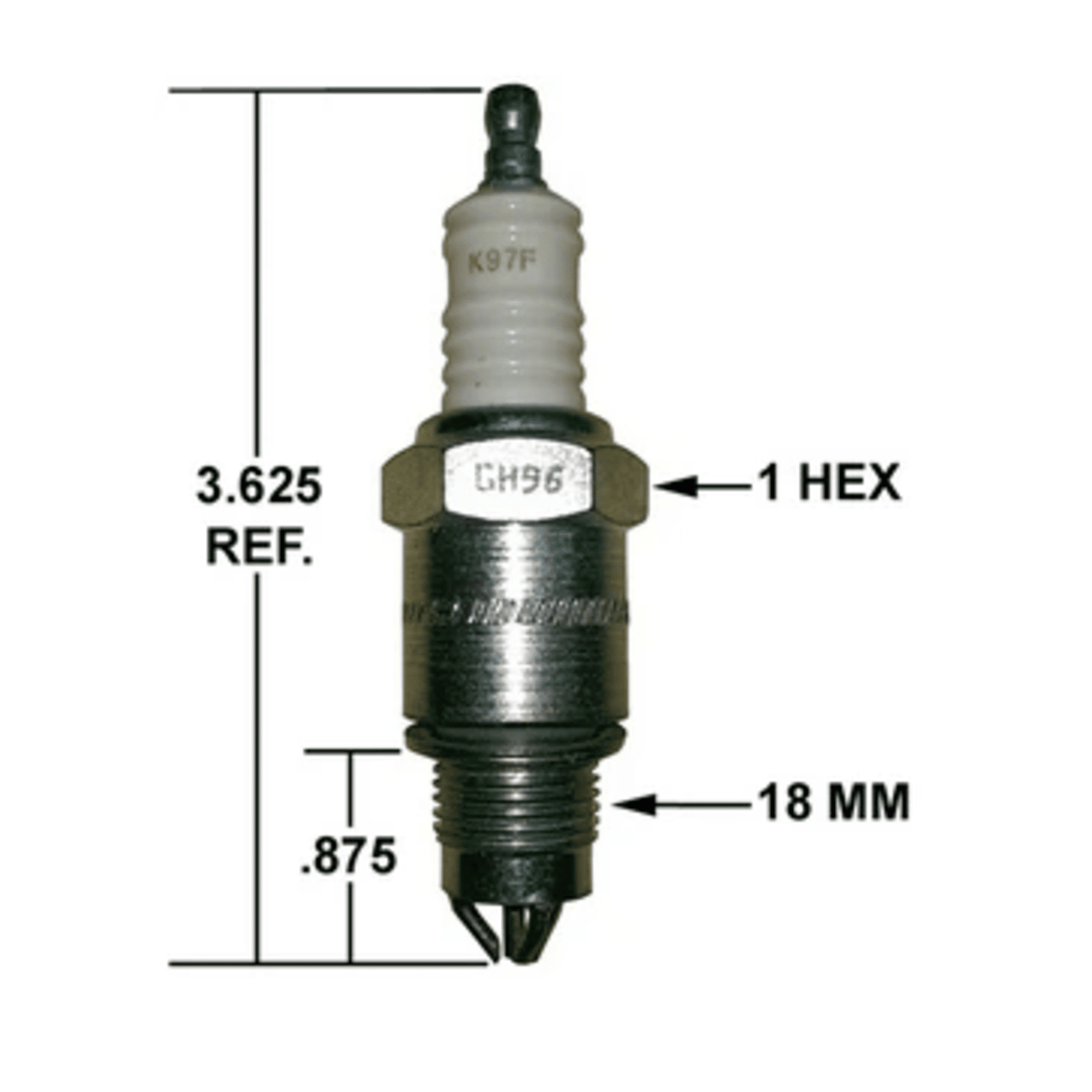

The Champion K97F Spark Plug (also known as part number 597) is a heavy-duty industrial and agricultural spark plug designed for high-compression and high-temperature environments.

🔧 Technical Specs

  • Thread Size: 18mm
  • Thread Reach: 17.6mm (0.691 inch)
  • Hex Size: 25.4mm (1 inch)
  • Seat Type: Flat (gasket)
  • Heat Range: 97
  • Preset Gap: 0.018 to 0.022 inch (0.46mm to 0.56mm)
  • Center Electrode: Nickel-Copper Alloy
  • Ground Electrode: Nickel-Copper Alloy
  • Number of Ground Electrodes: 3
  • Insulator Height: 68.32mm (2.690 inch)
  • Terminal Type: Removable
  • Tip Configuration: Projected
  • Design Features:
    • Built for high-load, high-temperature service
    • Compatible with alternative fuels (e.g., gas)
    • Supports CO₂ reduction
    • Designed for long-lasting durability
Replaces

Champion K97F · Westwood E5-K-97-F · Westwood K-97-F
