Cylinder 10 Ton 6" Treaded Hole Single Acting - Williams

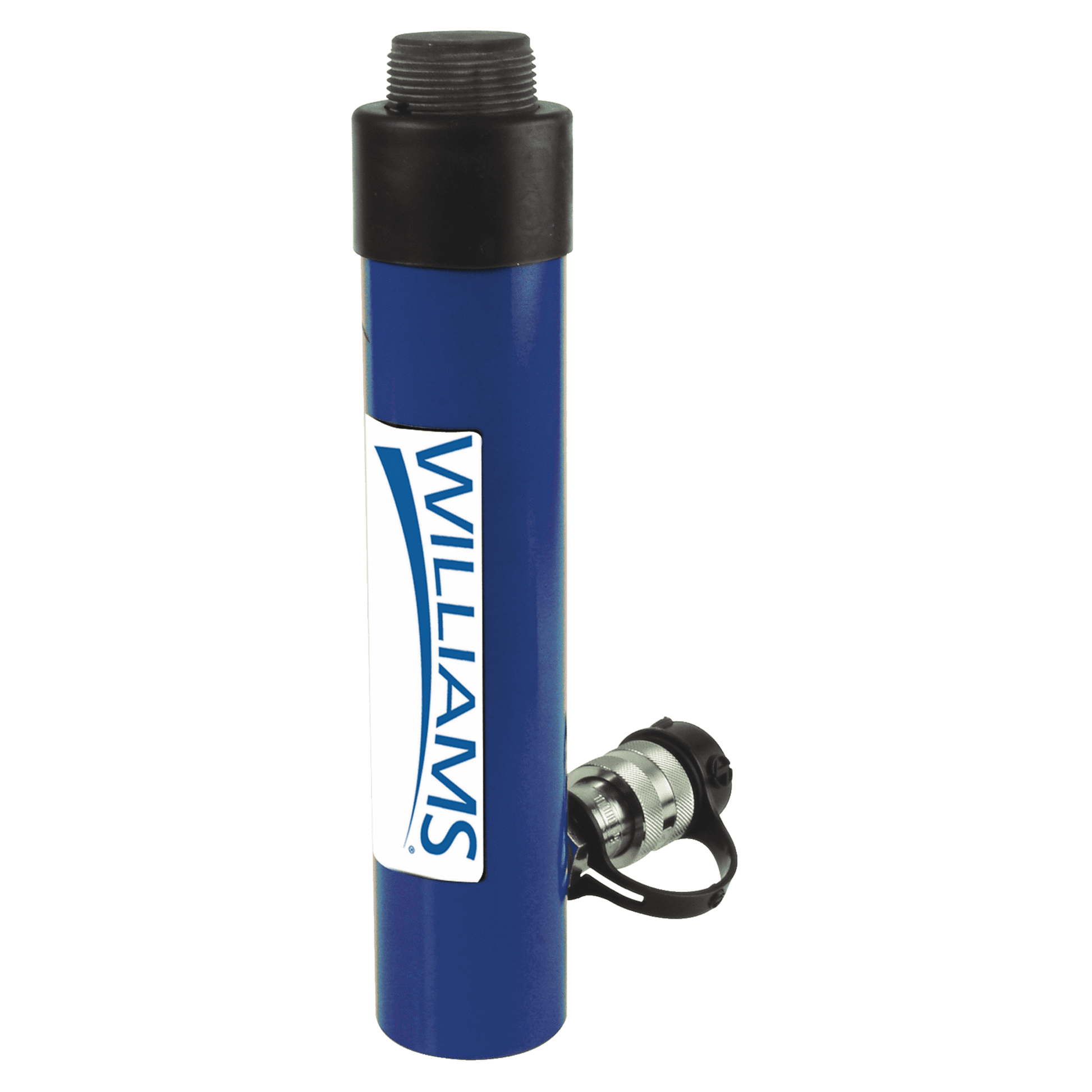

Williams 10 Ton Single-Acting Cylinder 6" Stroke, Threaded Hole (JHW6CT10T06)

The Williams JHW6CT10T06 is a robust single-acting hydraulic cylinder designed for heavy-duty industrial applications. With a 10-ton capacity and a 6-inch stroke, this cylinder features a threaded hole for easy mounting and secure load handling.

Key Features:

• Capacity: 10 tons
• Maximum Working Pressure: 10,000 psi (700 bar)
• Stroke: 6.00 in
• Collapsed Height: ~9.25 in
• Extended Height: ~15.25 in
• Cylinder Bore Diameter: ~1.50 in
• Plunger Diameter: ~1.25 in
• Oil Capacity: ~14.9 in³
• Port Size: 3/8"-18 NPTF
• Threaded Hole: For easy mounting and load attachment
