Williams - Cylinder 55 Ton Locking Nut 12" Stoke - 6CN55T12
Original price
$4,117.67
-
Original price
$4,117.67
Original price
$4,117.67
$4,117.67
-
$4,117.67
Current price
$4,117.67
SKU WIL-JHW6CN55T12
Availability:
Out the Door in 7-10 days

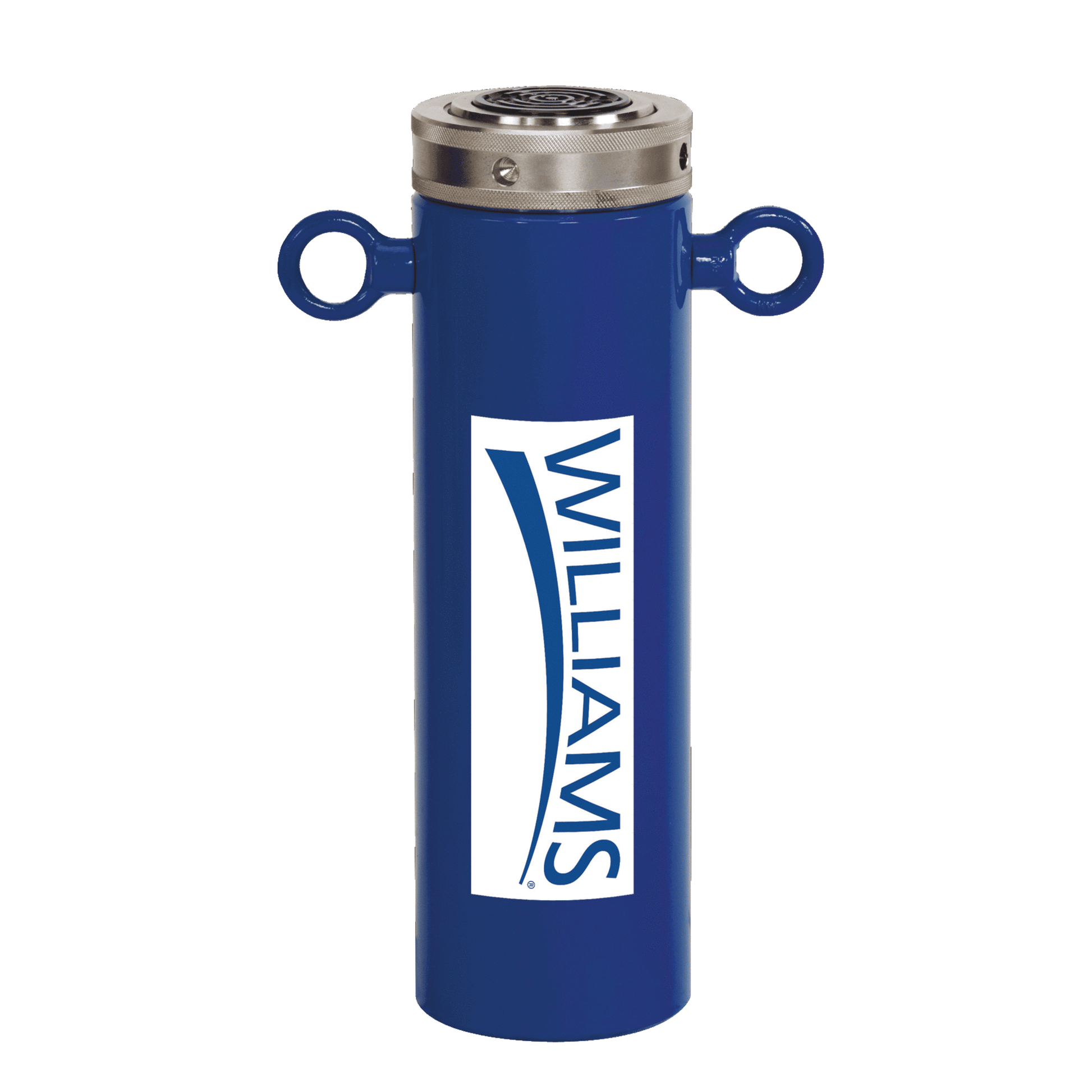

Williams JHW6CN55T12 55 Ton Locking Nut Cylinder 12" Stoke.
Features
- Overflow port prevents cylinders from over travel
- Single acting cylinder with mechanical safety lock nut
- Load return
- Ideal for lifting and holding loads
- Solid steel cylinder body
- Designed to support load for extended periods without hydraulic pressure
Product Details
- Part Number: JHW6CN55T12
- Brand: Williams
- Category: Hand Tools › Industrial Hydraulics
- Base To Inlet Port I (in): 1.1
- Collapsed Height A (in): 16.3
- Cylinder Bore Diameter C (in): 3.7
- Cylinder Capacity Tons: 55
- Cylinder Effective Area In2: 10.99
- Depth Of Plunger Hole G1 (in): .08
- Extended Height B (in): 28.1
- Lock Nut Length H (in): 1.4
- Maximum Working Pressure: 10,000 psi / 700 bar
- Oil Capacity In3: 129.8
- Outside Diameter D (in): 4.9
- Plunger Outside Thread E: Tw95-6N
- Saddle Diameter F (in): 2.8
- Saddle Protrusion From Plunger G2 (in): .51
- Stroke (in): 11.81
- Weight (lb): 87.1
