JHW6CL30T02 - Williams - 30 Ton Low Profile Cylinder

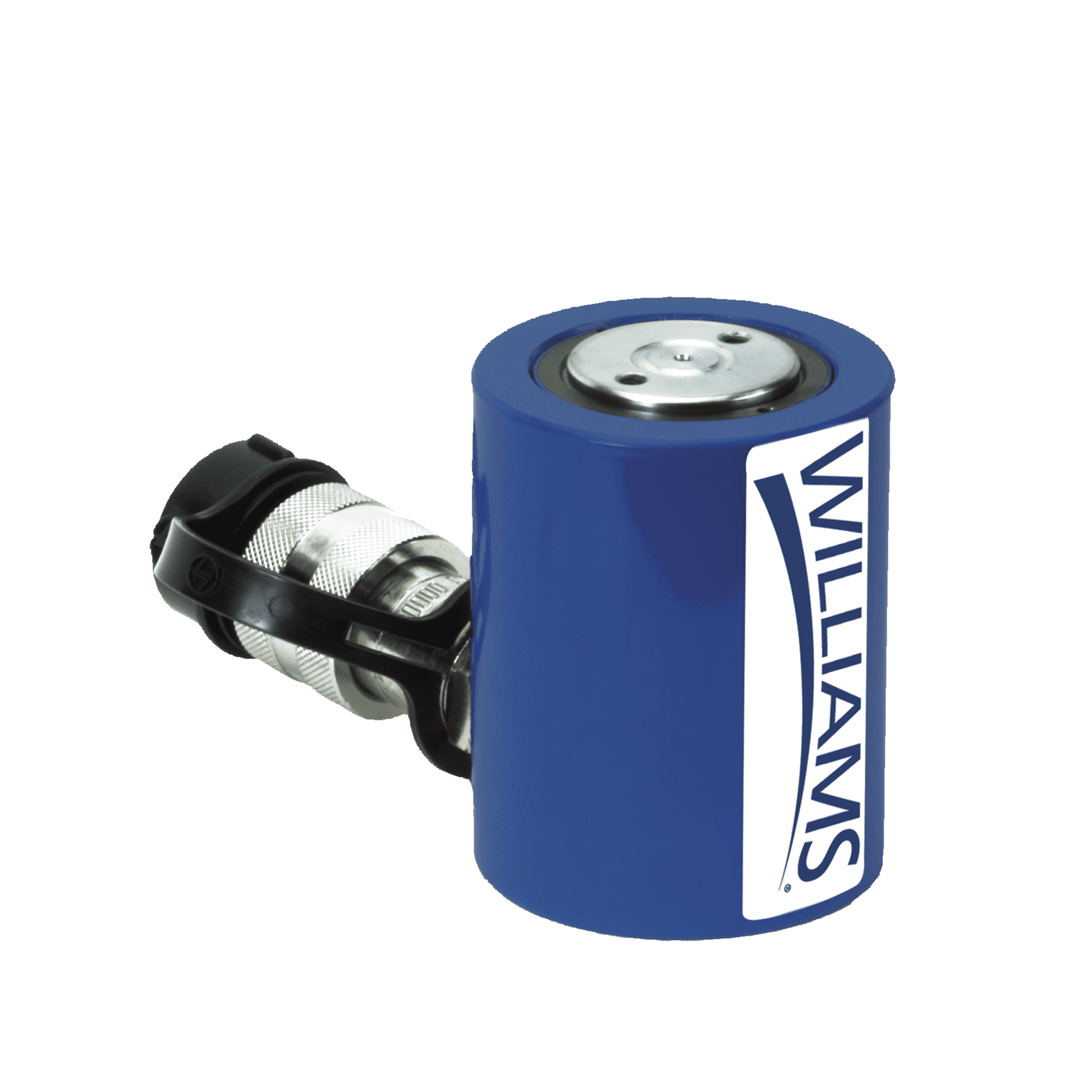

Williams 30 Ton Low Profile Cylinder (JHW6CL30T02)

The Williams JHW6CL30T02 is a heavy-duty, single-acting low-profile hydraulic cylinder designed for use in confined spaces. Built for durability and precision, this cylinder delivers up to 30 tons of lifting capacity with a compact design that ensures versatility in industrial applications.

Key Features:

• Capacity: 30 tons
• Maximum Working Pressure: 10,000 psi (700 bar)
• Stroke: 2.44 in
• Collapsed Height: 4.61 in
• Extended Height: 7.05 in
• Cylinder Bore Diameter: 2.87 in
• Plunger Diameter: 2.50 in
• Outside Diameter: 4.00 in
• Oil Capacity: 15.84 in³
• Effective Area: 6.49 in²
• Internal Pressure at Capacity: 9,245 psi
• Mounting: Bolt circle 1.56 in, thread M5, depth 0.32 in
• Weight: Approx. 15.2 lbs
• Port Size: 3/8"-18 NPTF
