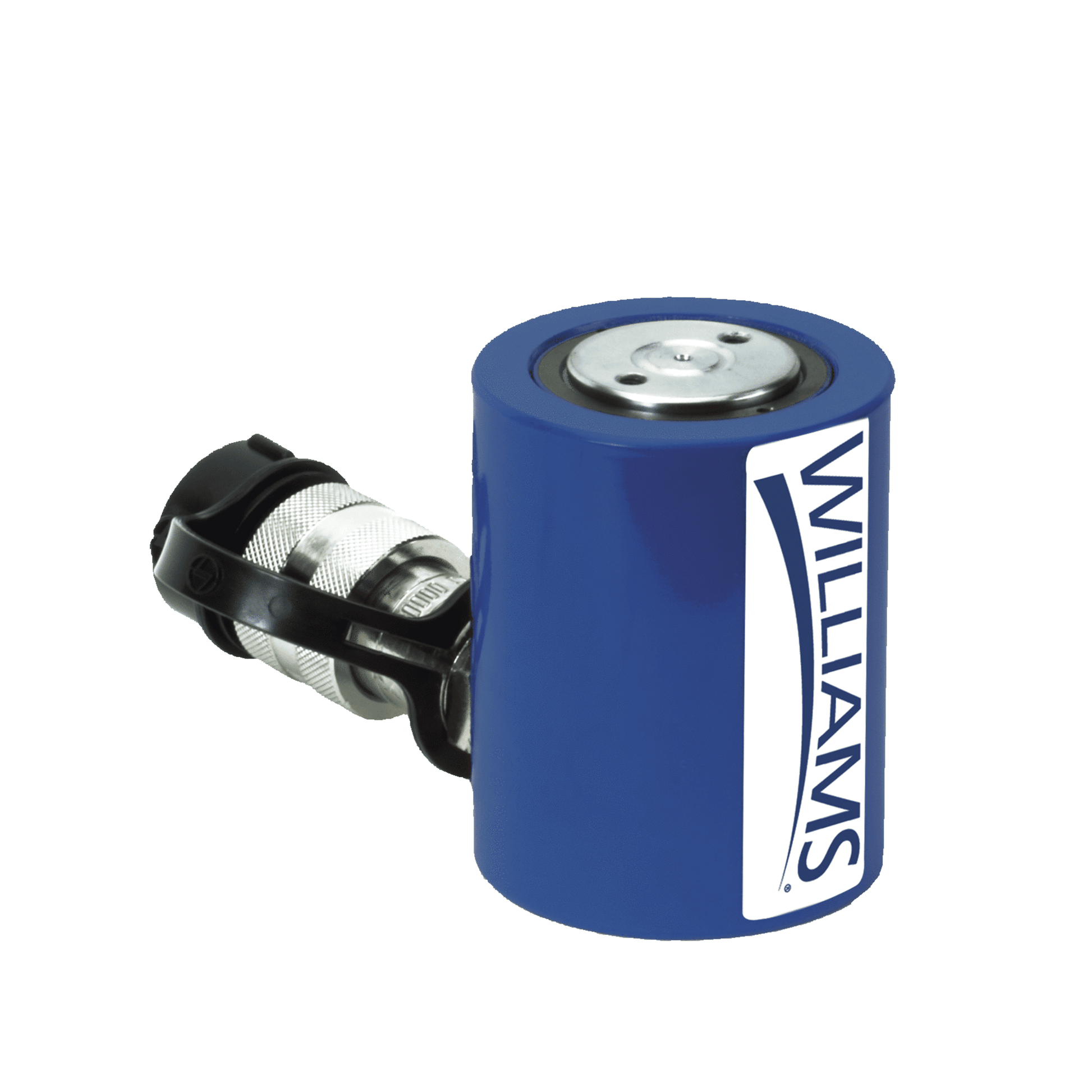

Williams 20 Ton Low Profile Cylinder (JHW6CL20T02)

The Williams JHW6CL20T02 is a rugged, single-acting low-profile hydraulic cylinder designed for high-force applications in confined spaces. With a 20-ton capacity and compact design, this cylinder delivers reliable performance for industrial lifting and pressing tasks.

Key Features:

• Capacity: 20 tons
• Maximum Working Pressure: 10,000 psi (700 bar)
• Stroke: 2.44 in
• Collapsed Height: 4.06 in
• Extended Height: 6.50 in
• Cylinder Bore Diameter: 2.25 in
• Plunger Diameter: 1.75 in
• Outside Diameter: 3.50 in
• Oil Capacity: 10.98 in³
• Effective Area: 4.91 in²
• Internal Pressure at Capacity: 8,140 psi
• Port Size: 3/8"-18 NPTF
