JHW6CL10T01 - Williams - 10 Ton Low Profile Cylinder

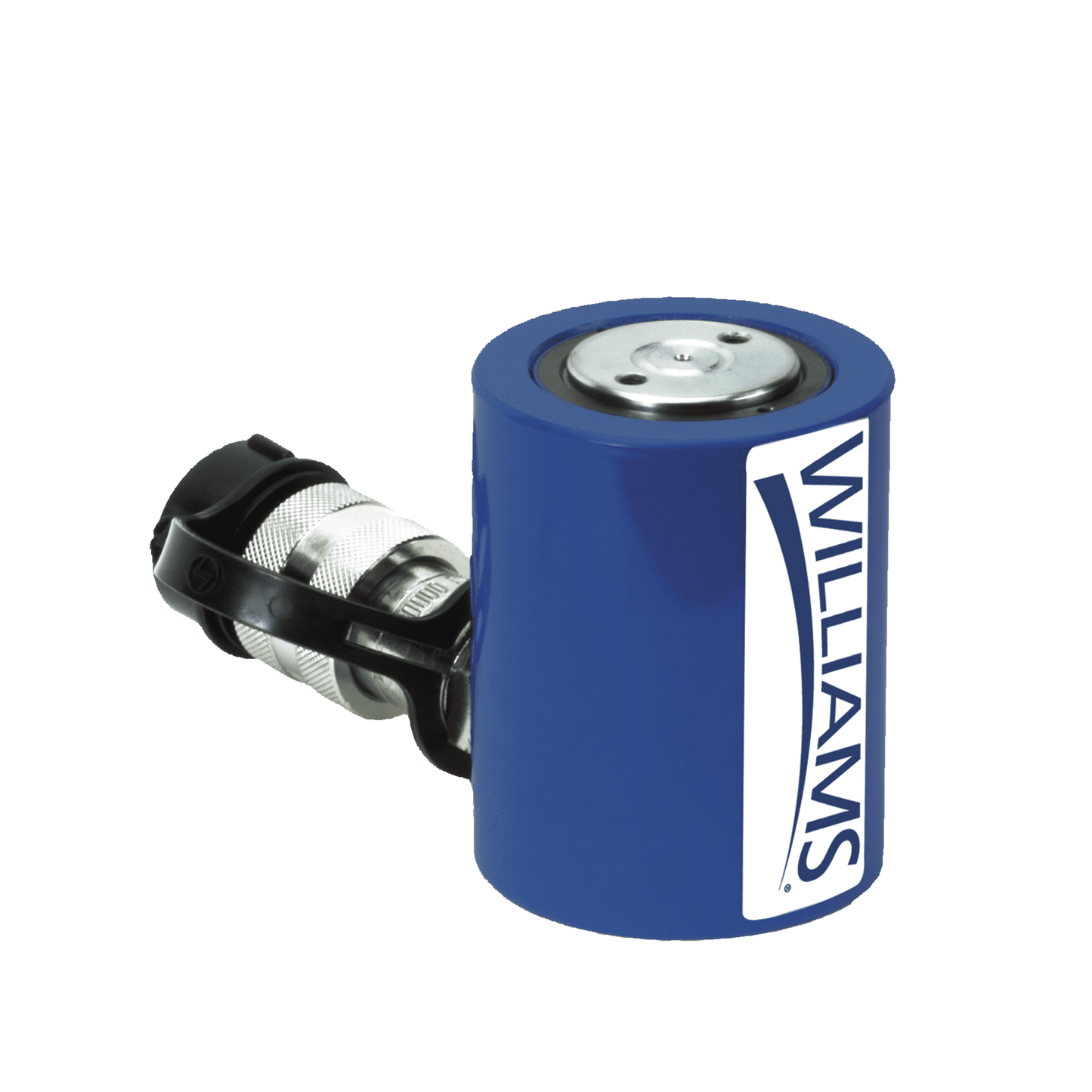

Williams 10 Ton Low Profile Cylinder (JHW6CL10T01)

The Williams JHW6CL10T01 is a compact, single-acting low-profile hydraulic cylinder designed for high-force applications in confined spaces. With a 10-ton capacity and rugged construction, this cylinder ensures reliable performance for industrial lifting and pressing tasks.

Key Features:

• Capacity: 10 tons
• Maximum Working Pressure: 10,000 psi (700 bar)
• Stroke: 1.97 in
• Collapsed Height: 3.15 in
• Extended Height: 5.12 in
• Cylinder Bore Diameter: 1.50 in
• Plunger Diameter: 1.25 in
• Outside Diameter: 2.50 in
• Oil Capacity: 4.91 in³
• Effective Area: 2.49 in²
• Internal Pressure at Capacity: 8,020 psi
• Port Size: 3/8"-18 NPTF
