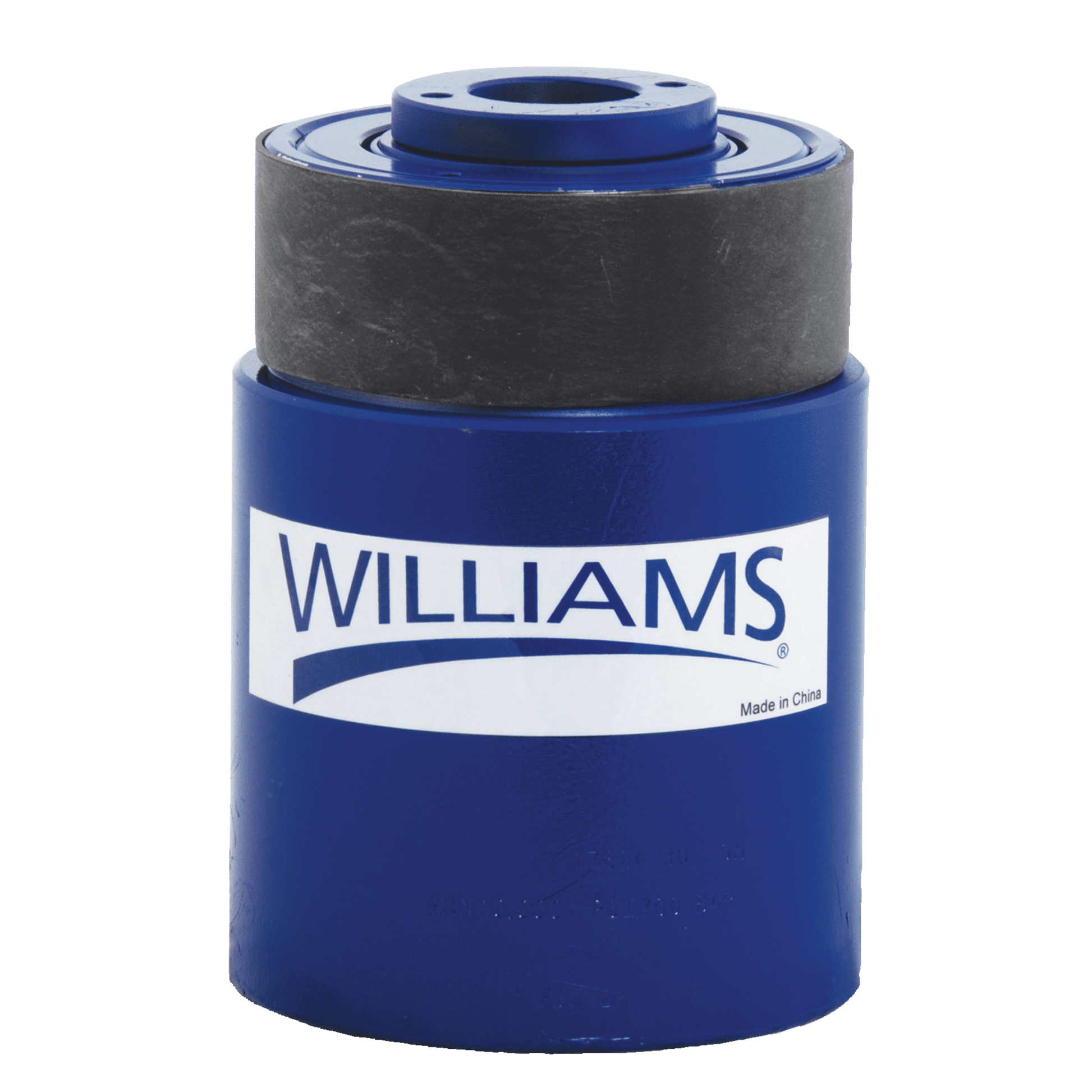

Williams - Cylinder 60T Single Acting 3" Stroke - 6CH60T03

Williams JHW6CH60T03 60T Single Acting Cylinders 3" Stroke.

Features

• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Collar thread protector
• Dual wipers help prevent contamination
• High flow coupler with dust cap
• 6 standard models

Product Details

• Part Number: JHW6CH60T03
• Brand: Williams
• Category: Hand Tools › Industrial Hydraulics
• Base Mounting Hole Thread Depth Z (in): .55
• Base To Inlet Port G (in): 1
• Collar Thread Dia H (in): 6-1/4 -12
• Collar Thread Lgth L (in): 2
• Cylinder Capacity Tons: 60
• Cylinder Effective Area In2: 13.05
• Internal Thread Length K (in): .75
• Max Height B (in): 12.77
• Min Height A (in): 9.77
• OD D (in): 6.252
• Oil Cap In3: 39.1
• Plunger ID C (in): 2.126
• Plunger Internal Thread J (in): 2-3/4"-16UN
• Plunger OD E (in): 3.66
• Pressure At Capacity (psi): 9,195
• Stroke (in): 3
• Weights (lb): 65.7, 81.1
