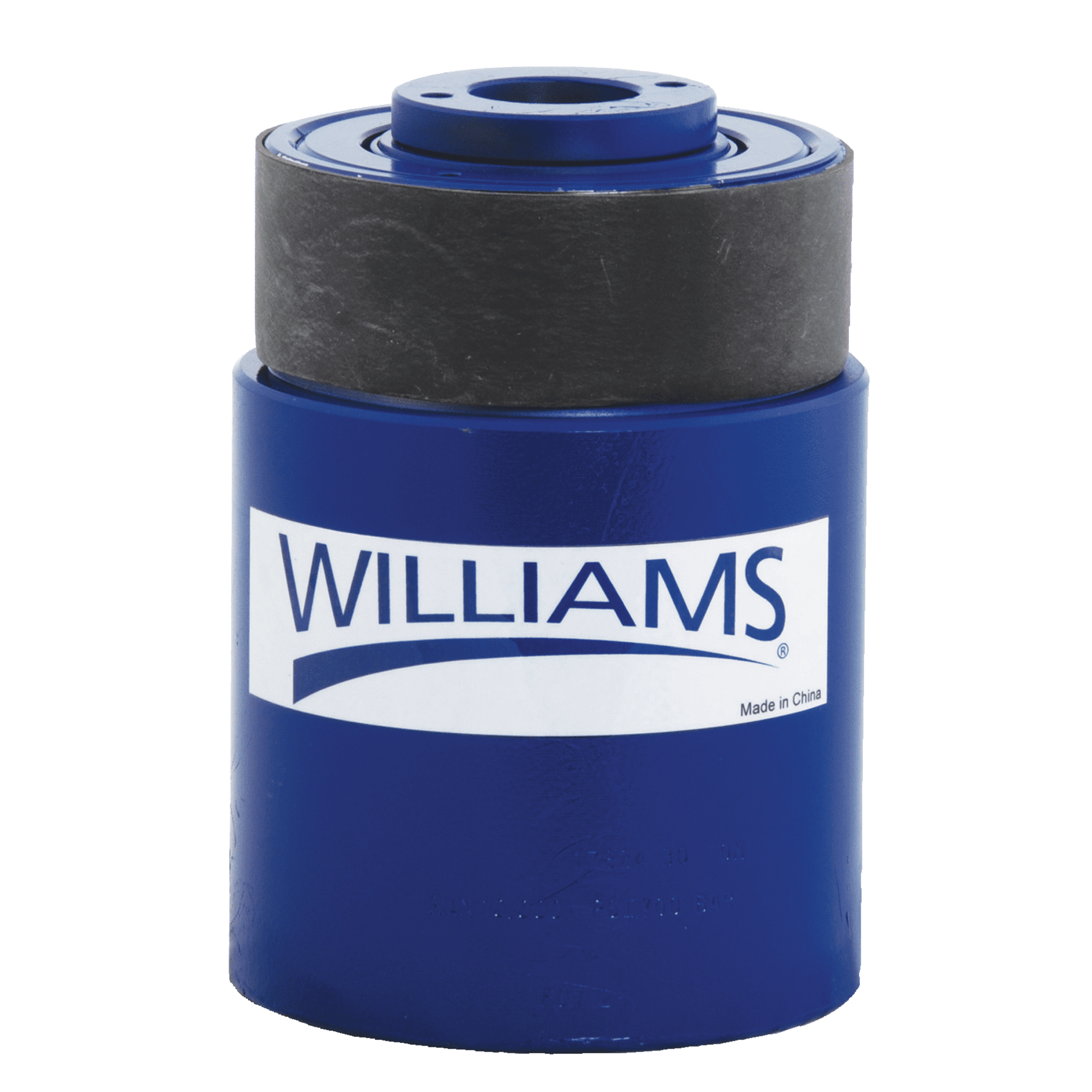

Williams - Cylinder 30 Ton Single Acting 6.13" Stroke - 6CH30T06

Williams JHW6CH30T06 30 Ton Single Acting Cylinders 6.13" Stroke.

Features

• Heavy duty compression spring
• Dual wipers help prevent contamination
• 6 standard models
• High flow coupler with dust cap
• Collar thread protector
• Ideal for some pulling and pushing applications

Product Details

• Part Number: JHW6CH30T06
• Brand: Williams
• Category: Hand Tools › Industrial Hydraulics
• Base Mounting Hole Thread Depth Z (in): .55
• Base To Inlet Port G (in): .81
• Collar Thread Dia H (in): 4-1/2 -12
• Collar Thread Lgth L (in): 1.75
• Cylinder Capacity Tons: 30
• Cylinder Effective Area In2: 6.32
• Internal Thread Length K (in): .87
• Max Height B (in): 19.13
• Min Height A (in): 13.02
• OD D (in): 4.5
• Oil Cap In3: 38.67
• Plunger ID C (in): 1.311
• Plunger Internal Thread J (in): 1-13/16"-16UN
• Plunger OD E (in): 2.48
• Pressure At Capacity (psi): 9,488
• Stroke (in): 6.11
• Weights (lb): 43
