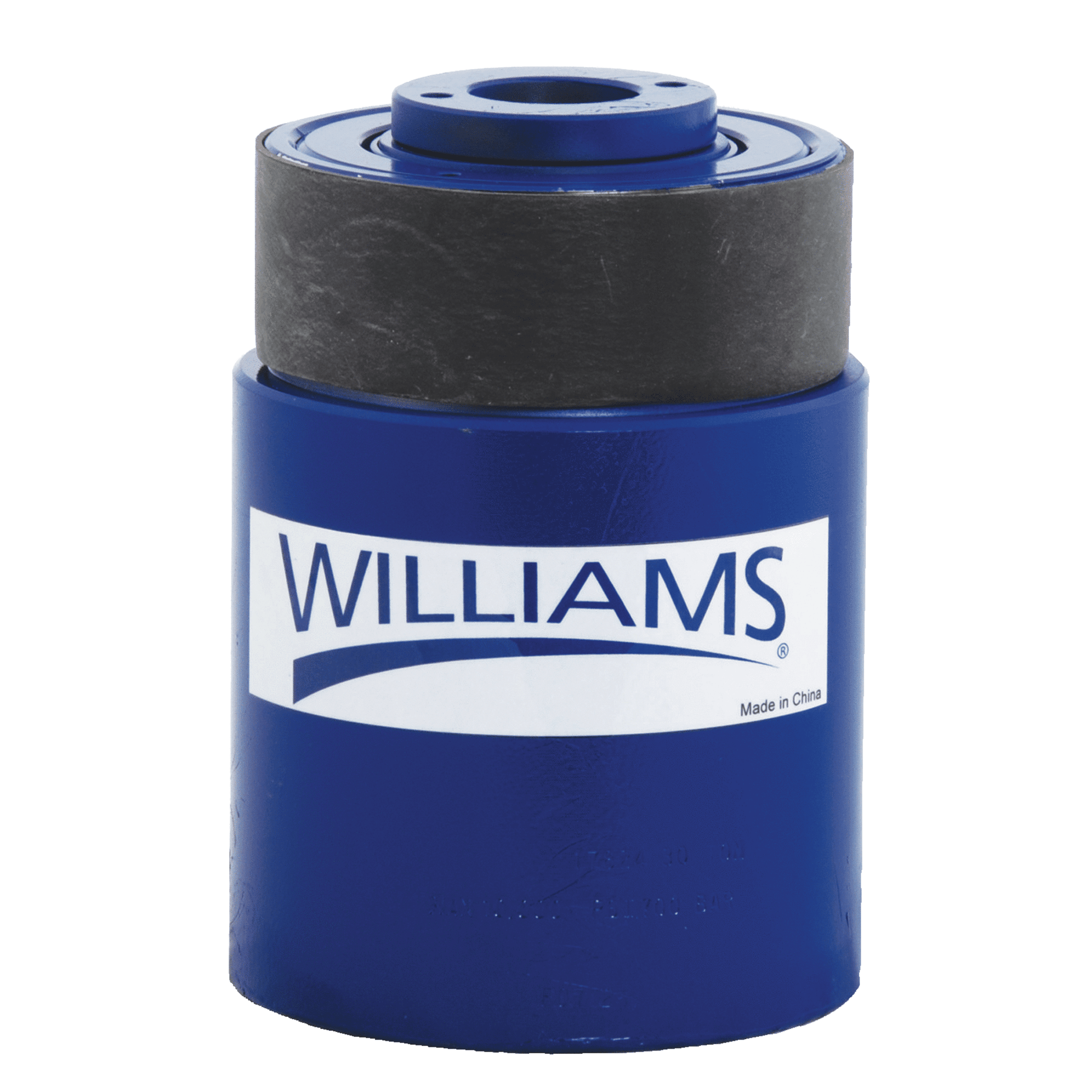

Williams - Cylinder 30 Ton Single Acting 2.5" Stroke - 6CH30T02
Original price
$2,747.81
-
Original price
$2,747.81
Original price
$2,747.81
$2,747.81
-
$2,747.81
Current price
$2,747.81
SKU WIL-JHW6CH30T02
Availability:
Out the Door in 7-10 days
Williams JHW6CH30T02 30 Ton Single Acting Cylinders 2.5" Stroke.
Features
- Heavy duty compression spring
- Dual wipers help prevent contamination
- Ideal for some pulling and pushing applications
- Collar thread protector
- High flow coupler with dust cap
- 6 standard models
Product Details
- Part Number: JHW6CH30T02
- Brand: Williams
- Category: Hand Tools › Industrial Hydraulics
- Base Mounting Hole Thread Depth Z (in): .55
- Base To Inlet Port G (in): .81
- Collar Thread Dia H (in): 4-1/2 -12
- Collar Thread Lgth L (in): 1.75
- Cylinder Capacity Tons: 30
- Cylinder Effective Area In2: 6.32
- Internal Thread Length K (in): .87
- Max Height B (in): 9.57
- Min Height A (in): 7.05
- OD D (in): 4.5
- Oil Cap In3: 15.93
- Plunger ID C (in): 1.311
- Plunger Internal Thread J (in): 1-13/16"-16UN
- Plunger OD E (in): 2.48
- Pressure At Capacity (psi): 9,488
- Stroke (in): 2.52
- Weights (lb): 22.9
