JHW6CH20T06 - Williams - 20 Ton Single Acting Cylinders 6" Stroke

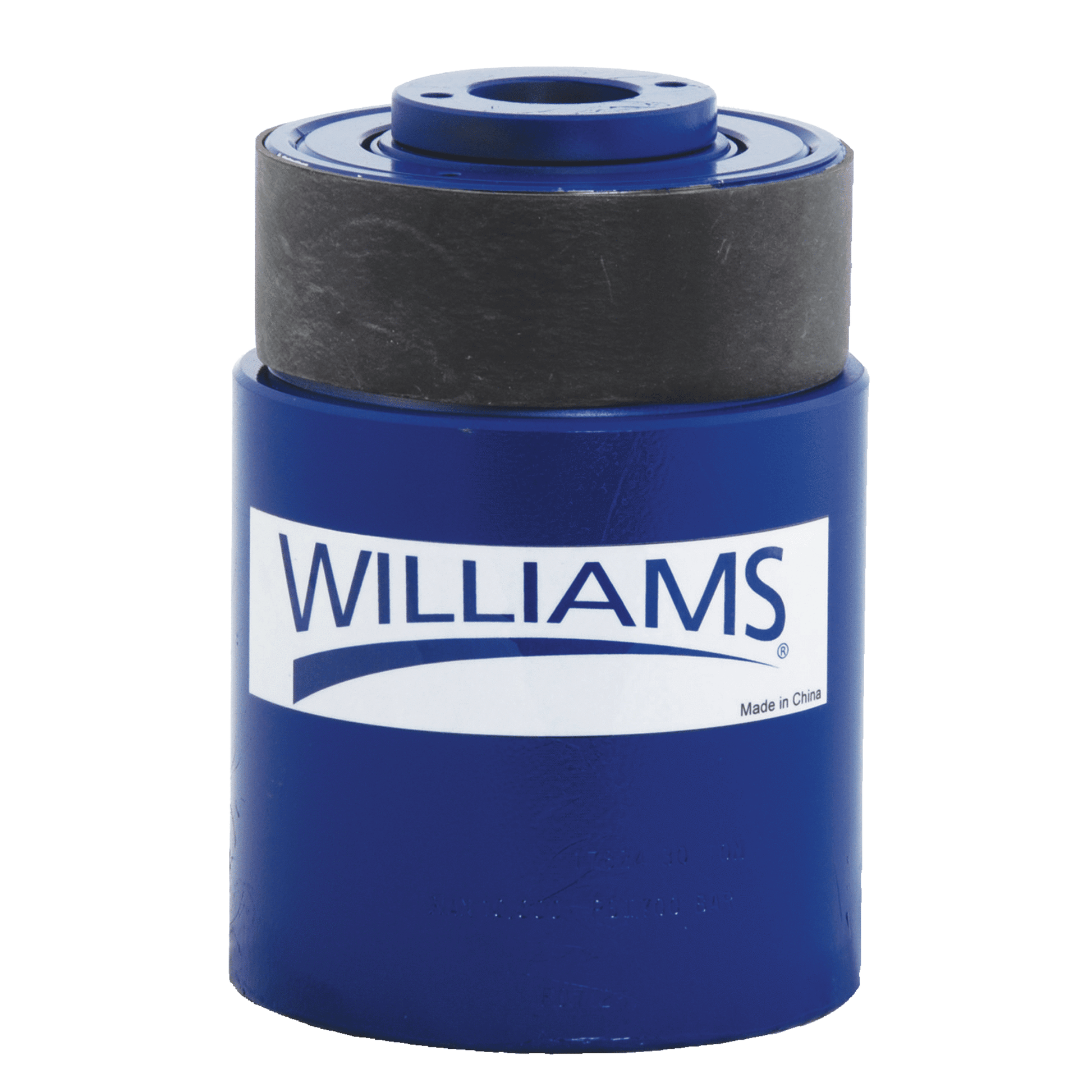

Williams 20 Ton Single-Acting Hydraulic Cylinder – 6" Stroke (JHW6CH20T06)

The Williams JHW6CH20T06 is a rugged single-acting hydraulic cylinder designed for industrial applications requiring high force and reliability. With a 20-ton capacity and a 6-inch stroke, this cylinder is ideal for lifting, pressing, and maintenance tasks in demanding environments.

Key Features:

• Capacity: 20 tons
• Maximum Working Pressure: 10,000 psi (700 bar)
• Stroke: 6.00 in
• Collapsed Height: ~8.00 in
• Extended Height: ~14.00 in
• Cylinder Bore Diameter: ~2.50 in
• Plunger Diameter: ~2.00 in
• Oil Capacity: ~18 in³
• Port Size: 3/8"-18 NPTF
