Cylinder 20 Ton Single Acting 2" Stroke - Williams

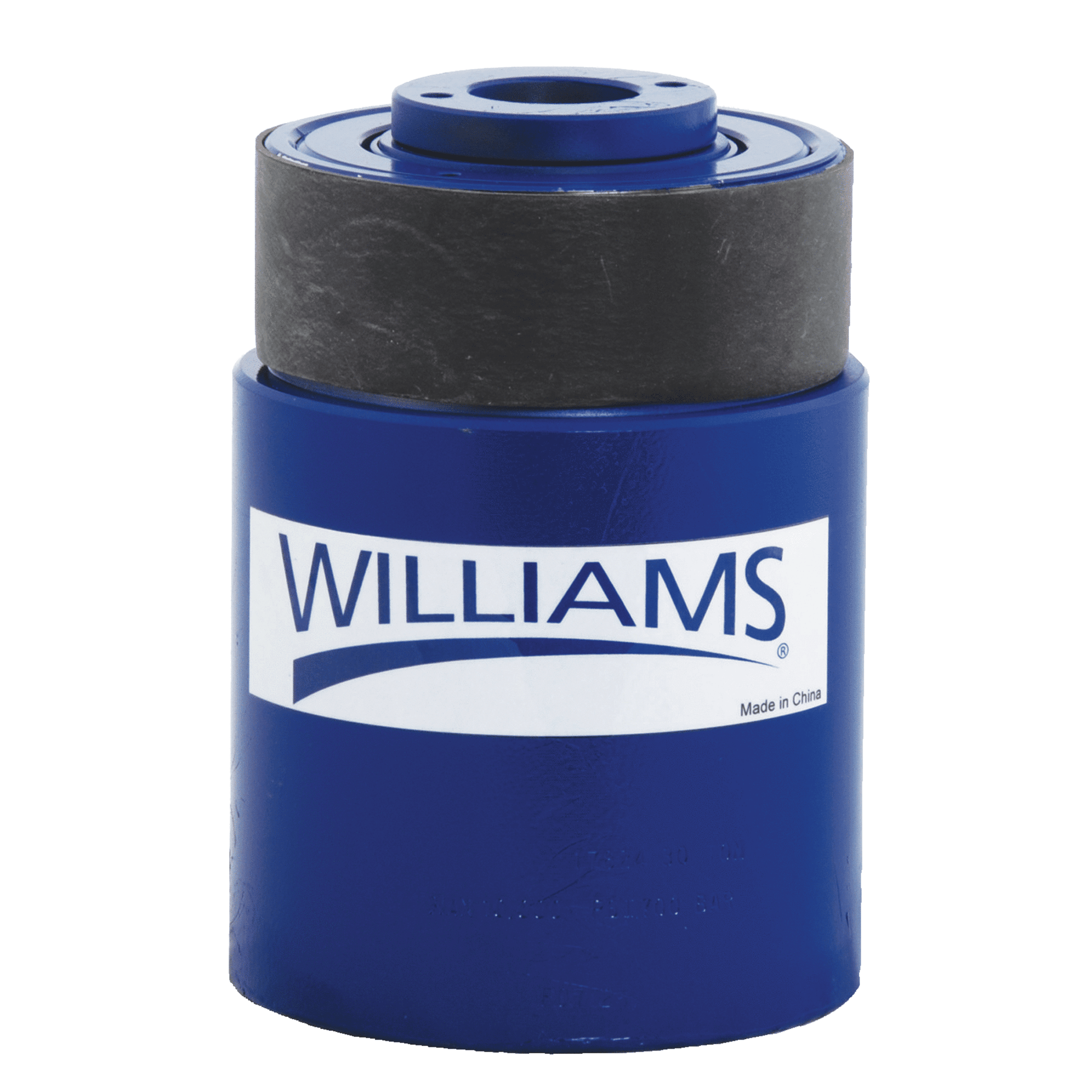

Williams 20 Ton Single-Acting Hydraulic Cylinder 2" Stroke (JHW6CH20T02)

The Williams JHW6CH20T02 is a compact, heavy-duty single-acting hydraulic cylinder designed for industrial applications requiring high force in tight spaces. With a 20-ton capacity and a 2-inch stroke, this cylinder is perfect for lifting, pressing, and maintenance tasks.

Key Features:

• Capacity: 20 tons
• Maximum Working Pressure: 10,000 psi (700 bar)
• Stroke: 2.00 in
• Collapsed Height: ~6.00 in
• Extended Height: ~8.00 in
• Cylinder Bore Diameter: ~2.50 in
• Plunger Diameter: ~2.00 in
• Oil Capacity: ~6.5 in³
• Port Size: 3/8"-18 NPTF
