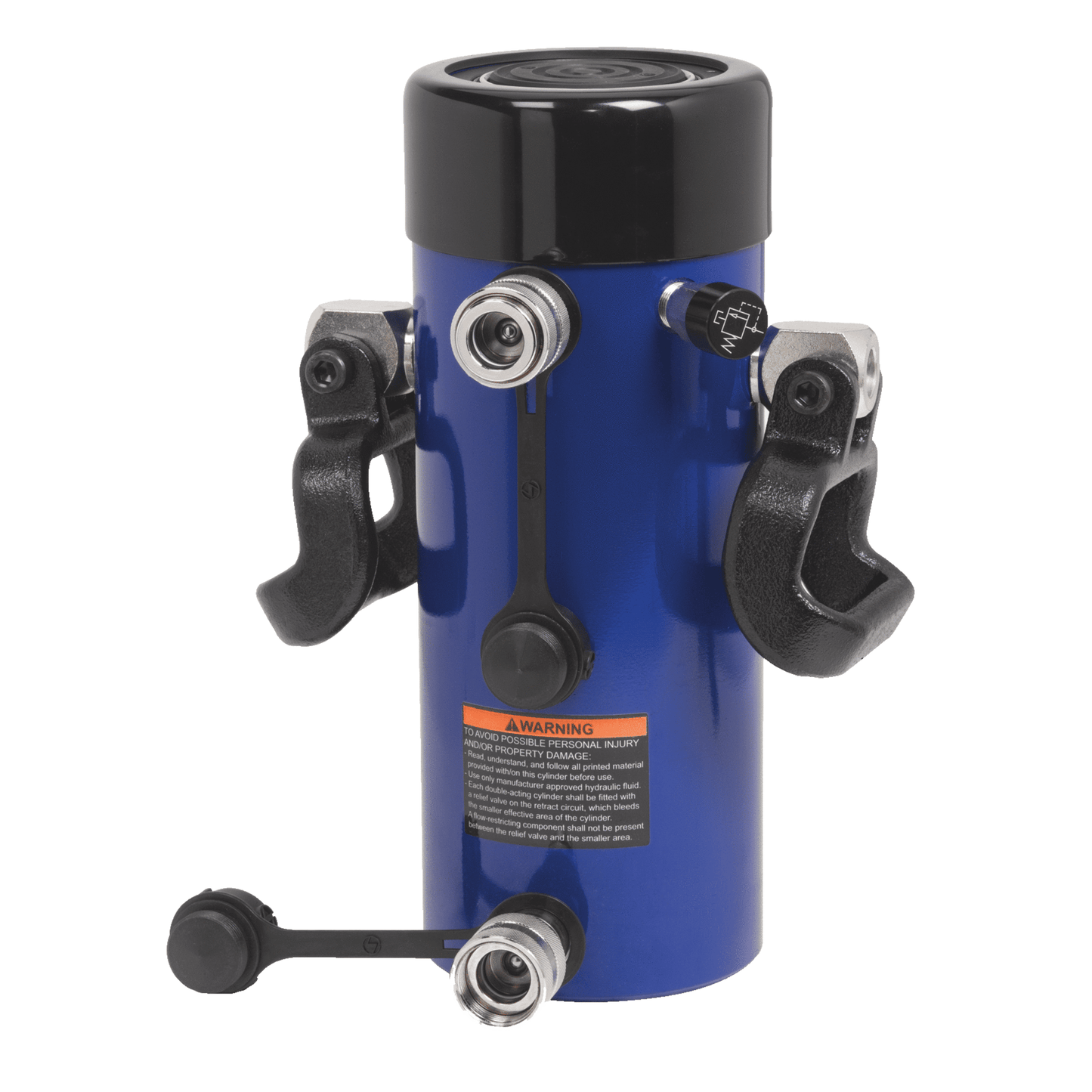

Williams - Cylinder 30 Ton Double-Act 14" Stroke - 6CD30T15

Williams JHW6CD30T15 30 Ton Double-Act Cylinder 14" Stroke.

Features

• Ideal for pushing and pulling
• Rod wiper seals out dirt and contamination
• High strength steel construction from gun drilled solid bar
• High flow 3/8" NPTF couplers
• One piece high grade alloy bearing for side load protection and long life

Product Details

• Part Number: JHW6CD30T15
• Brand: Williams
• Category: Hand Tools › Industrial Hydraulics
• Base To Adv Port G (in): 1.65
• Collapsed Height A (in): 21.65
• Collar Thread L (in): 3-5/16 - 12
• Collar Thread Length M (in): 1.93
• Cylinder Bore Dia C (in): 2.87
• Cylinder Capacity Tons: 30
• Cylinder Effective Area Pull In2: 3.19
• Cylinder Effective Area Push In2: 6.49
• Extended Height B (in): 36.14
• Maximum Cylinder Capacity Pull Ton: 16.2
• Maximum Cylinder Capacity Push Ton: 32.9
• Maximum Working Pressure: 10,000 psi / 700 bar
• Oil Capacity Pull (in): 46.26
• Oil Capacity Push In3: 94.09
• Outside Dia D (in): 3.98
• Plunger Dia E (in): 2.13
• Plunger Thread Length K (in): .98
• Saddle Dia F (in): 1.97
• Stroke (in): 14.49
• Top To Return Port H (in): 2.91
• Weight (lb): 60.6
