Williams - Cylinder 75 Ton Single Acting 13'' Stroke - 6C75T13
Original price
$5,573.79
-
Original price
$5,573.79
Original price
$5,573.79
$5,573.79
-
$5,573.79
Current price
$5,573.79
SKU WIL-JHW6C75T13
Availability:
Out the Door in 7-10 days

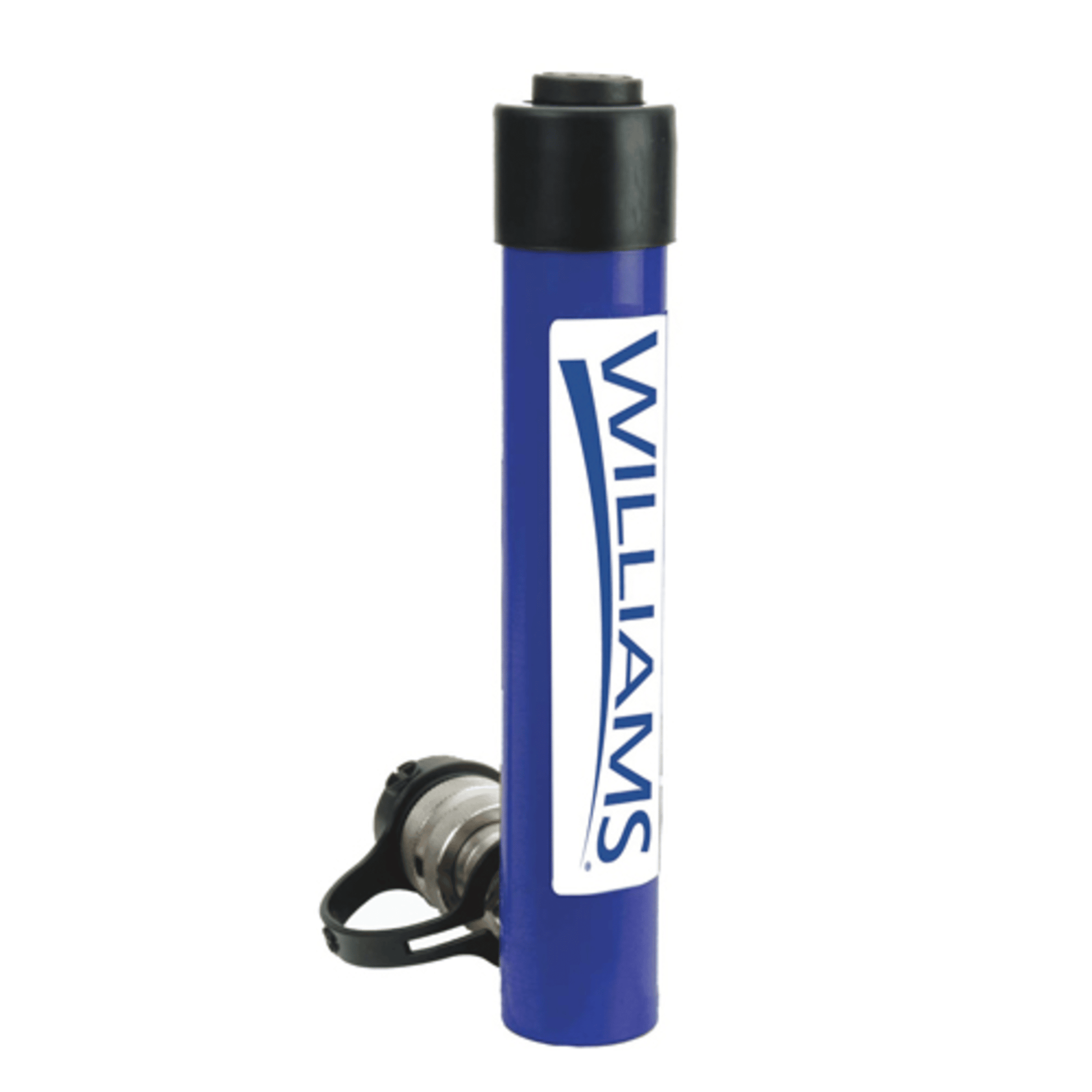

Williams JHW6C75T13 75 Ton Single Acting Cylinders 13'' Stroke.
Features
- Rod wiper seals out dirt and contamination
- Heavy duty return spring provides quicker retraction
- Collar fixture threads
- Industrial hard chrome plated ram helps prevent rust and corrosion
- Solid steel cylinder body
- Ideal for lifting and pressing
- Two base mounting holes on most models
- Snap in grooved saddles
- One piece high grade alloy bearing for side load protection and long life
- Collar thread protector
- High flow 3/8" NPTF couplers
- Internal plunger threads
- Polyurethane cup seal provides optimum performance
- 39 models
- High strength steel construction from gun drilled solid bar
Product Details
- Part Number: JHW6C75T13
- Brand: Williams
- Category: Hand Tools › Industrial Hydraulics
- Base To Inlet Port G (in): 1.18
- Collapsed Height A (in): 19.37
- Collar Thread H (in): 5-3/4 - 12
- Collar Thread Length L (in): 1.73
- Cylinder Bore Dia C (in): 4.53
- Cylinder Capacity Tons: 75
- Cylinder Effective Area In2: 16.1
- Extended Height B (in): 32.48
- Maximum Working Pressure: 10,000 psi / 700 bar
- Oil Capacity In3: 211.07
- Outside Dia D (in): 5.79
- Plunger Dia E (in): 3.74
- Pressure At Capacity (psi): 9,320
- Saddle Dia F (in): 2.76
- Stroke (in): 13.11
