JHW5ES10H2G - Williams - 1Hp Electric Pump with Solenoid Valve 2 Gallon 3 Way Valve Type

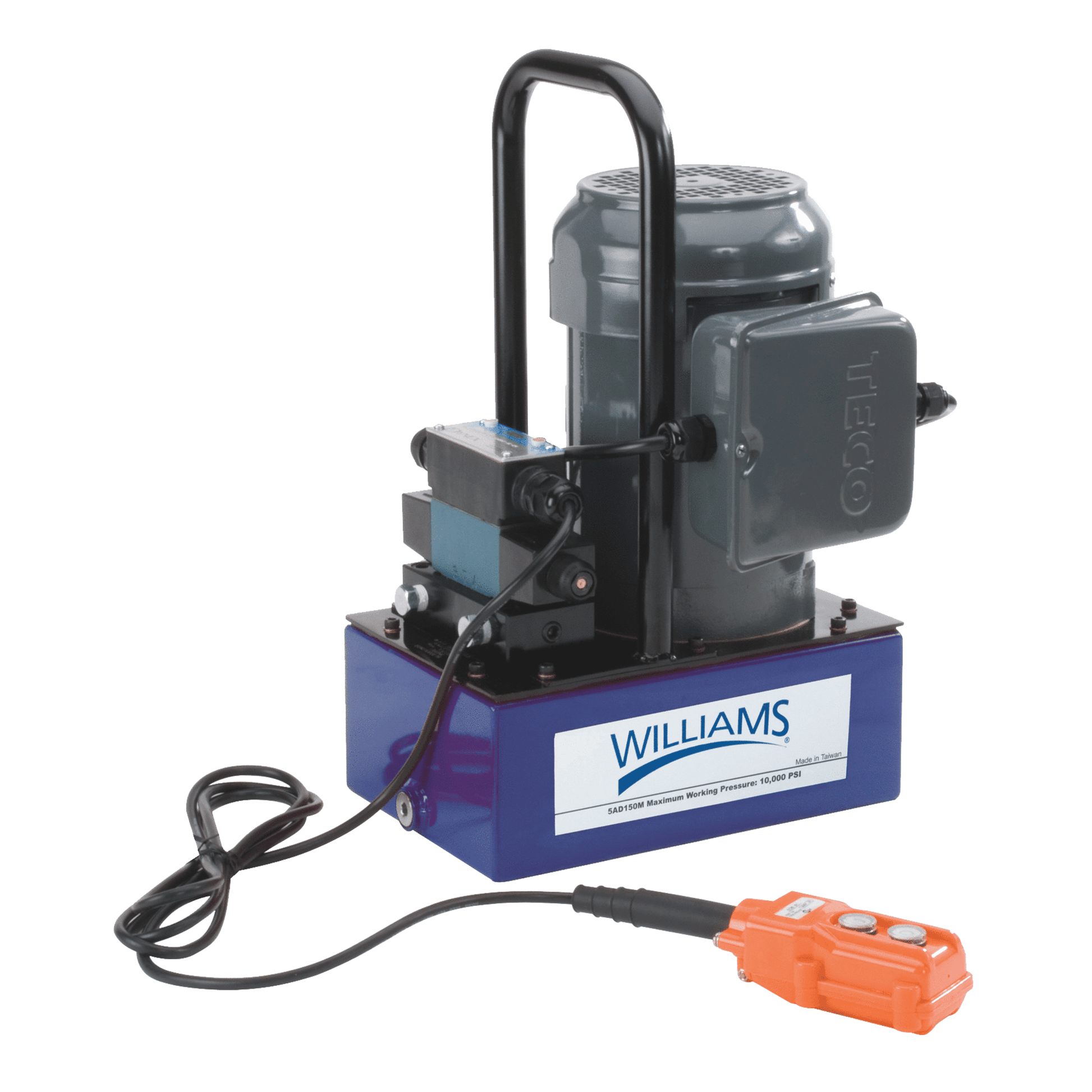

Williams Electric Hydraulic Pump – 1 HP, Solenoid Valve, 2-Gallon, 3-Way (JHW5ES10H2G)

The Williams JHW5ES10H2G is a powerful electric hydraulic pump designed for heavy-duty industrial applications. Featuring a 1 HP motor, 2-gallon oil reservoir, and a 3-way solenoid valve, this pump delivers high performance and reliability for operating single-acting cylinders.

Key Features:

• Motor Power: 1 HP
• Voltage: 115 V AC
• Current Draw: Approx. 12 A
• Usable Oil Capacity: 2 gallons
• Pressure Ratings:
  • 1st Stage: 350 psi
  • 2nd Stage: 10,000 psi
• Flow Rate:
  • 1st Stage: ~450 in³/min
  • 2nd Stage: ~30 in³/min
• Valve Type: 3-way, 2-position solenoid
• Valve Function: Advance / Auto Return
• Remote Control: 10 ft pendant for solenoid valve operation
• Noise Level: OSHA-compliant (approx. 80 dBA)
