JHW5ES05H1GR - Williams - .5Hp Electric Pump with Solenoid Valve 1 Gallon 4 Way Valve Type

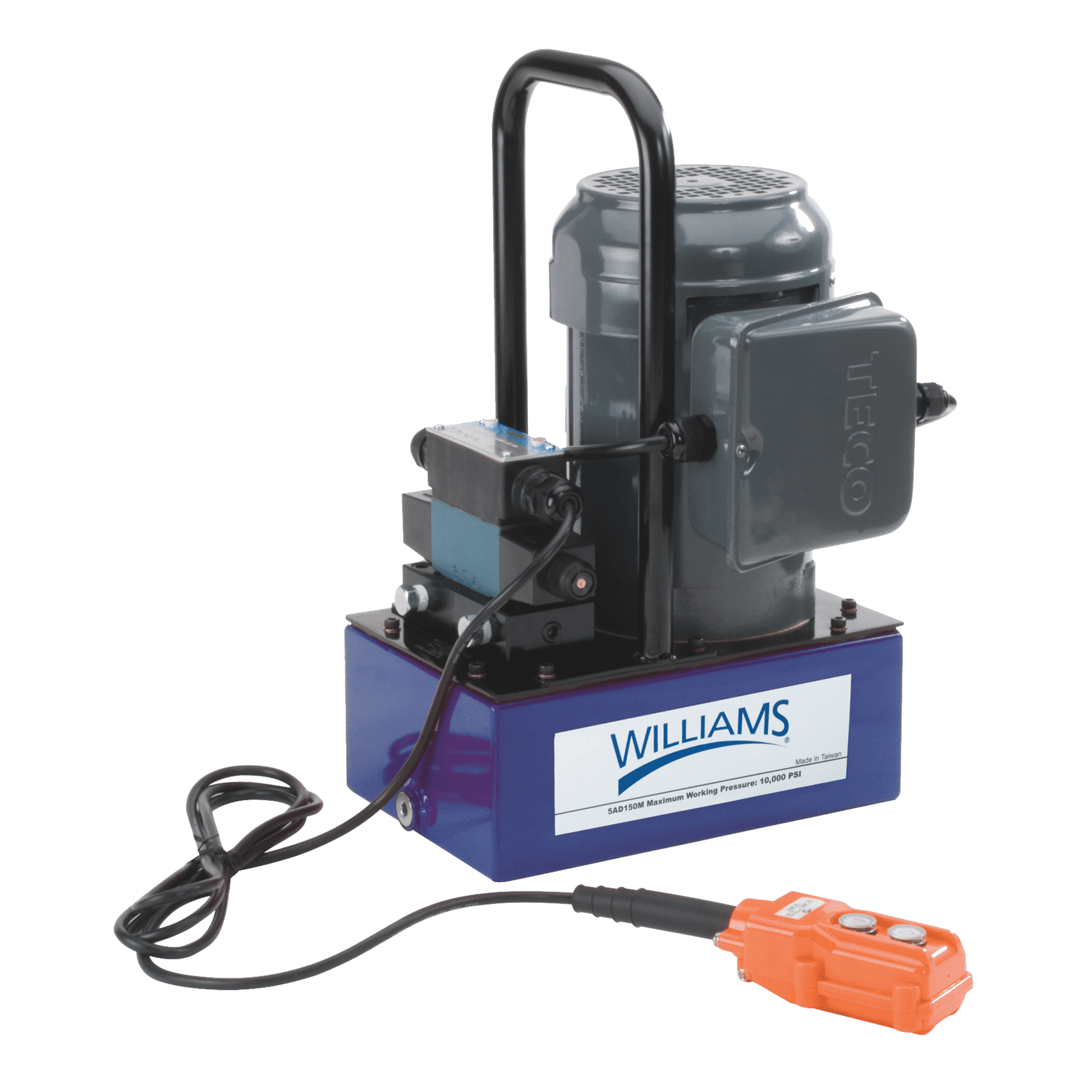

Williams Electric Hydraulic Pump – 0.5 HP, Solenoid Valve, 1-Gallon, 4-Way (JHW5ES05H1GR)

The Williams JHW5ES05H1GR is a compact, high-performance electric hydraulic pump designed for industrial applications requiring precision and reliability. Equipped with a 4-way, 3-position solenoid valve and a 1-gallon oil reservoir, this pump is ideal for operating double-acting cylinders in demanding environments.

Key Features:

• Motor Power: 0.5 HP
• Voltage: 115 V AC
• Current Draw: 9 A
• Usable Oil Capacity: 1 gallon
• Pressure Ratings:
  • 1st Stage: 350 psi
  • 2nd Stage: 10,000 psi
• Flow Rate:
  • 1st Stage: 233 in³/min
  • 2nd Stage: 18 in³/min
• Valve Type: 4-way, 3-position
• Valve Function: Advance / Hold / Return
• Remote Control: 10 ft pendant for solenoid valve operation
• Noise Level: 80 dBA (OSHA compliant)
