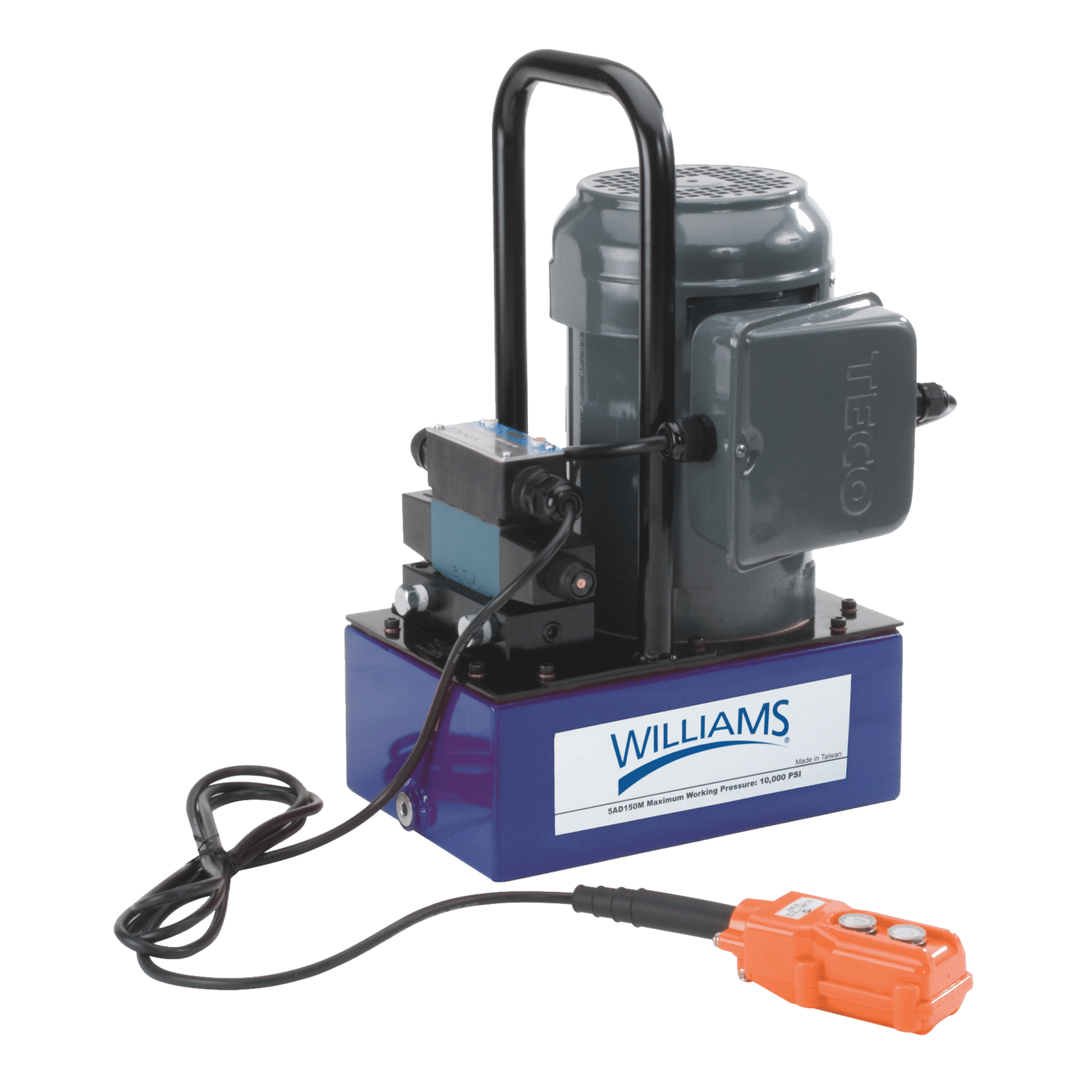

Williams Electric Hydraulic Pump 0.5 HP, Solenoid Valve, 1-Gallon, 3-Way (JHW5ES05H1G)

The Williams JHW5ES05H1G is a compact, high-performance electric hydraulic pump designed for industrial applications requiring precision and reliability. Featuring a 3-way solenoid valve and a 1-gallon oil reservoir, this pump is ideal for operating single-acting cylinders in demanding environments.

Key Features:

• Motor Power: 0.5 HP
• Voltage: 115 V AC
• Current Draw: 9 A
• Usable Oil Capacity: 1 gallon
• Pressure Ratings:
  • 1st Stage: 350 psi
  • 2nd Stage: 10,000 psi
• Flow Rate:
  • 1st Stage: ~233 in³/min
  • 2nd Stage: ~18 in³/min
• Valve Type: 3-way, 2-position solenoid
• Valve Function: Advance / Auto Return
• Remote Control: 10 ft pendant for solenoid valve operation
• Noise Level: OSHA-compliant (approx. 80 dBA)
