Williams - Electric Pump 1.5 H.P. 3 Gallon with Pendant Switch - 5E15H3GR
Original price
$8,261.72
-
Original price
$8,261.72
Original price
$8,261.72
$8,261.72
-
$8,261.72
Current price
$8,261.72
SKU WIL-JHW5E15H3GR
Availability:
Out the Door in 7-10 days

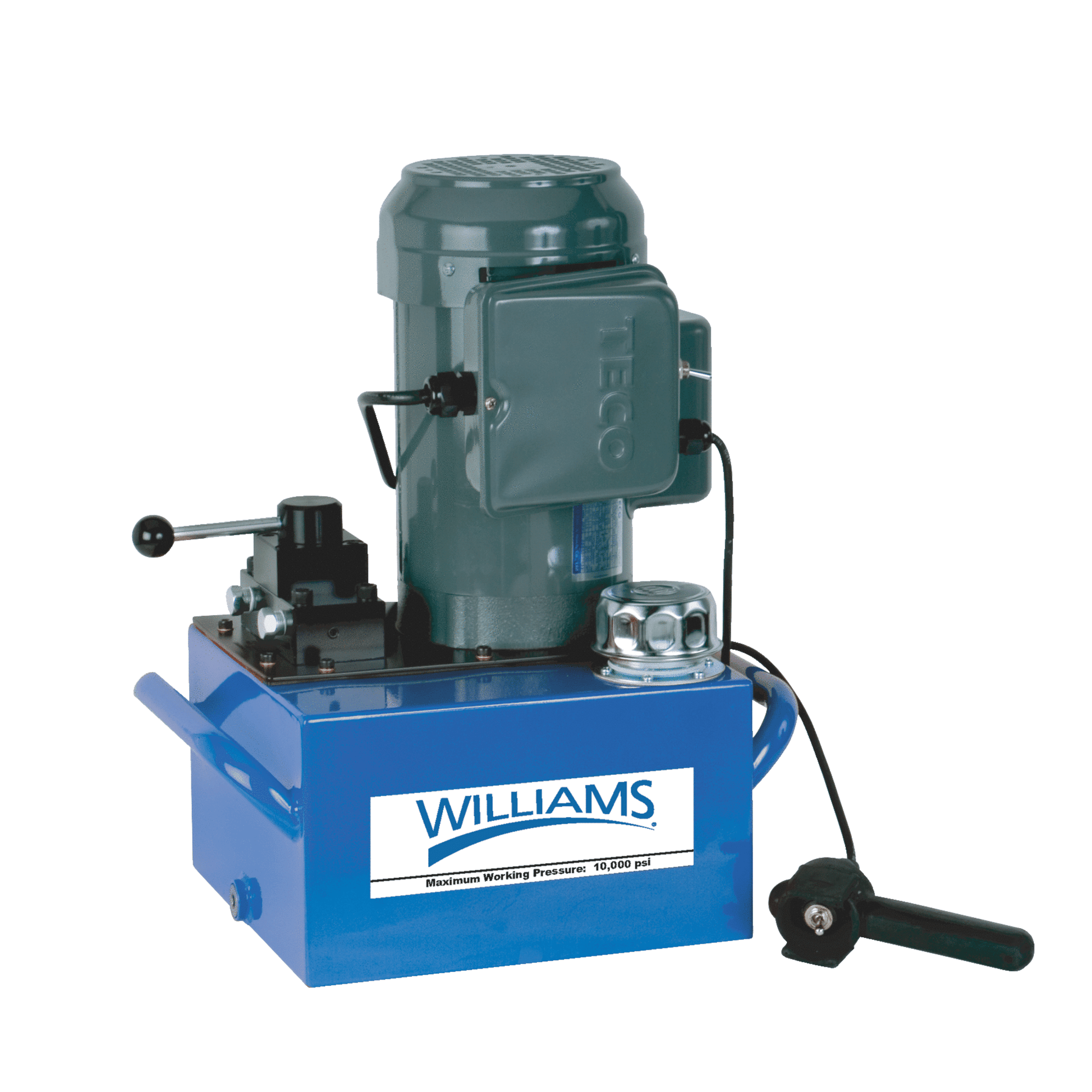

Williams JHW5E15H3GR 1.5 H.P. 3 Gallon Electric Pump with Pendant Switch.
Features
- 2 speed operation allows for faster cylinder advance
- Quiet operation meets OSHA regulations (80dBA)
- Internal filter keeps contamination from damaging pump
- 10 foot hand held remote control allows user to control cylinder in up or down position
- Full load starting capacities
Product Details
- Part Number: JHW5E15H3GR
- Brand: Williams
- Category: Hand Tools › Industrial Hydraulics
- Current Draw Amps: 17
- Dimensions (in) A: 16.65
- Dimensions (in) B: 12.01
- Dimensions (in) C: 19.72
- Dimensions (in) D: 7.24
- Dimensions (in) E: 8.19
- Dimensions (in) F: 10.51
- Dimensions (in) G: 4.53
- Dimensions (in) H: 12.36
- Motor Size Hp: 1.5
- Motor Voltage Volts: 115
- Oil Output Flow Rate 1St Stage In3 Min: 476
- Oil Output Flow Rate 2Nd Stage In3 Min: 61
- Pressure Rating 1St Stage (psi): 700
- Pressure Rating 2Nd Stage (psi): 10,000
- Usable Oil Capacity Gal: 3
- Used With Cylinder: Single Acting
- Valve Function: Advance/Hold/Return
- Valve Type: 3-way, 3-position
- Weight (lb): 88.5
