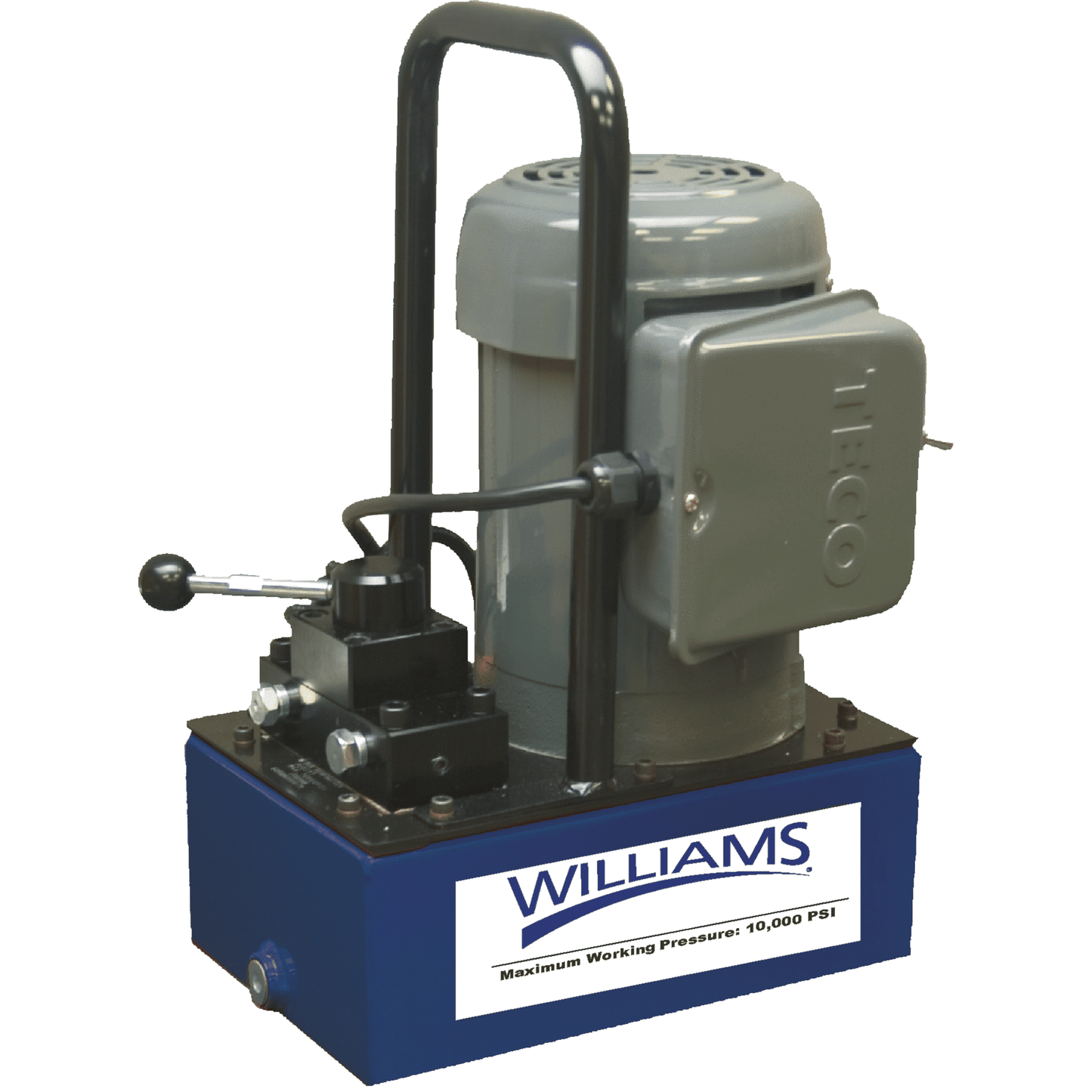

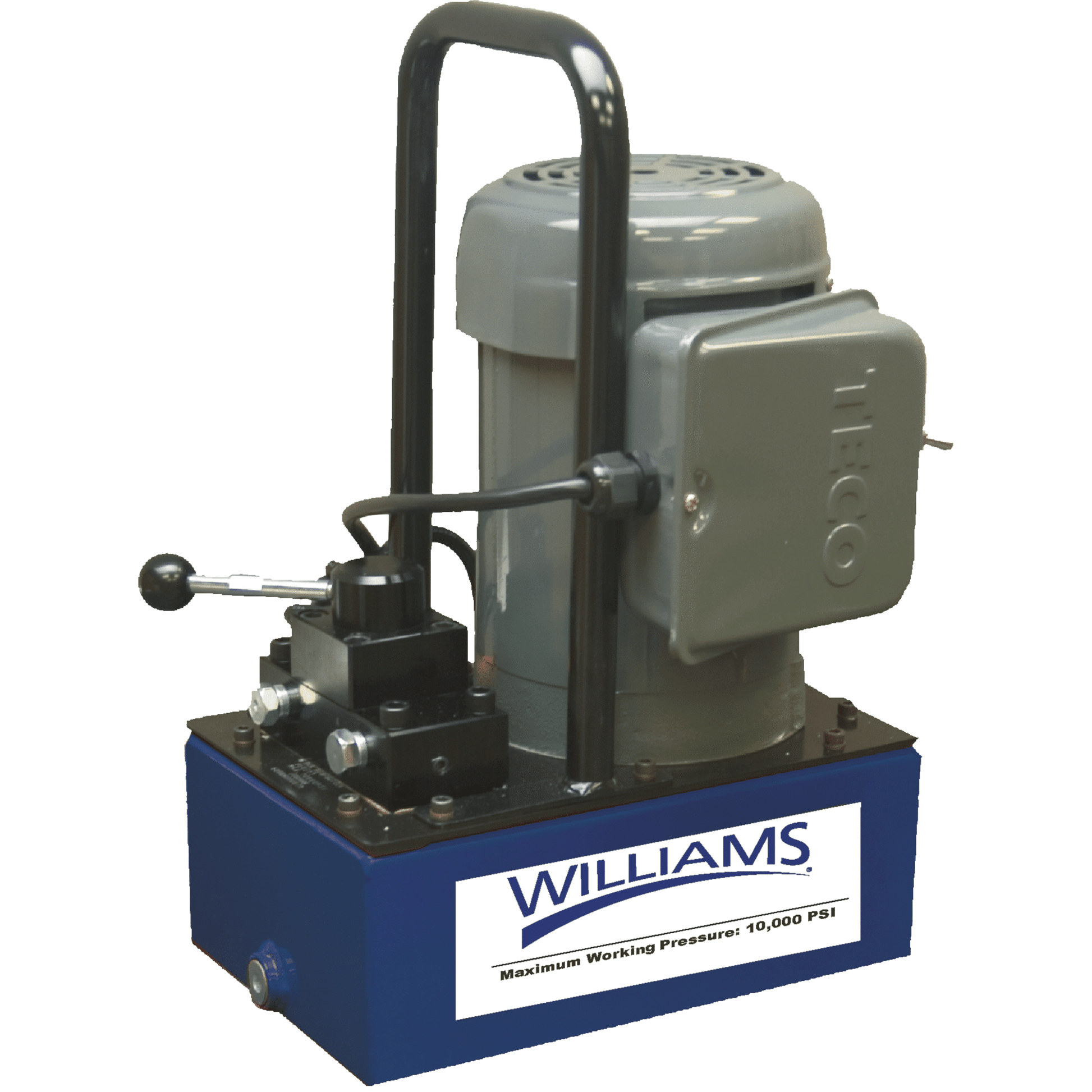

JHW5E15H3G - Williams - 1.5 H.P. 3 Gallon Electric Pump

Williams Electric Hydraulic Pump – 1.5 HP, 3-Gallon (JHW5E15H3G)

The Williams JHW5E15H3G is a heavy-duty electric hydraulic pump designed for maximum performance in industrial applications. With a powerful 1.5 HP motor and a 3-gallon oil reservoir, this pump delivers consistent hydraulic power for operating single-acting cylinders and other hydraulic tools.

Key Features:

• Motor Power: 1.5 HP
• Voltage: 115 V AC
• Current Draw: Approx. 12 A
• Usable Oil Capacity: 3 gallons
• Pressure Ratings:
  • 1st Stage: 350 psi
  • 2nd Stage: 10,000 psi
• Flow Rate:
  • 1st Stage: ~450 in³/min
  • 2nd Stage: ~30 in³/min
• Valve Type: 3-way, 2-position
• Valve Function: Advance / Auto Return
• Control: Pendant switch for motor on/off
• Noise Level: OSHA-compliant (approx. 80 dBA)
