JHW5E10H2G - Williams - 1.0 H.P. 2 Gallon Electric Pump

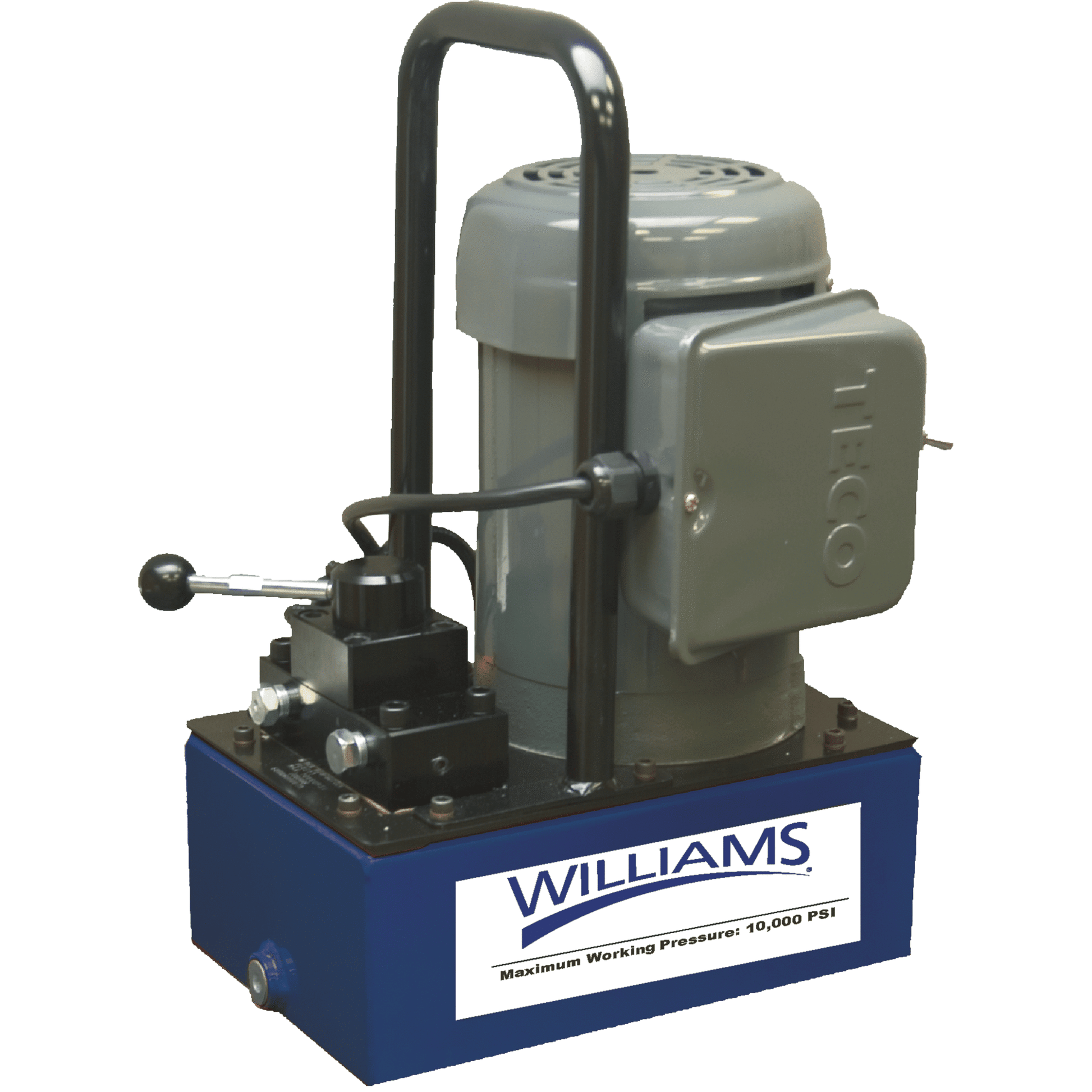

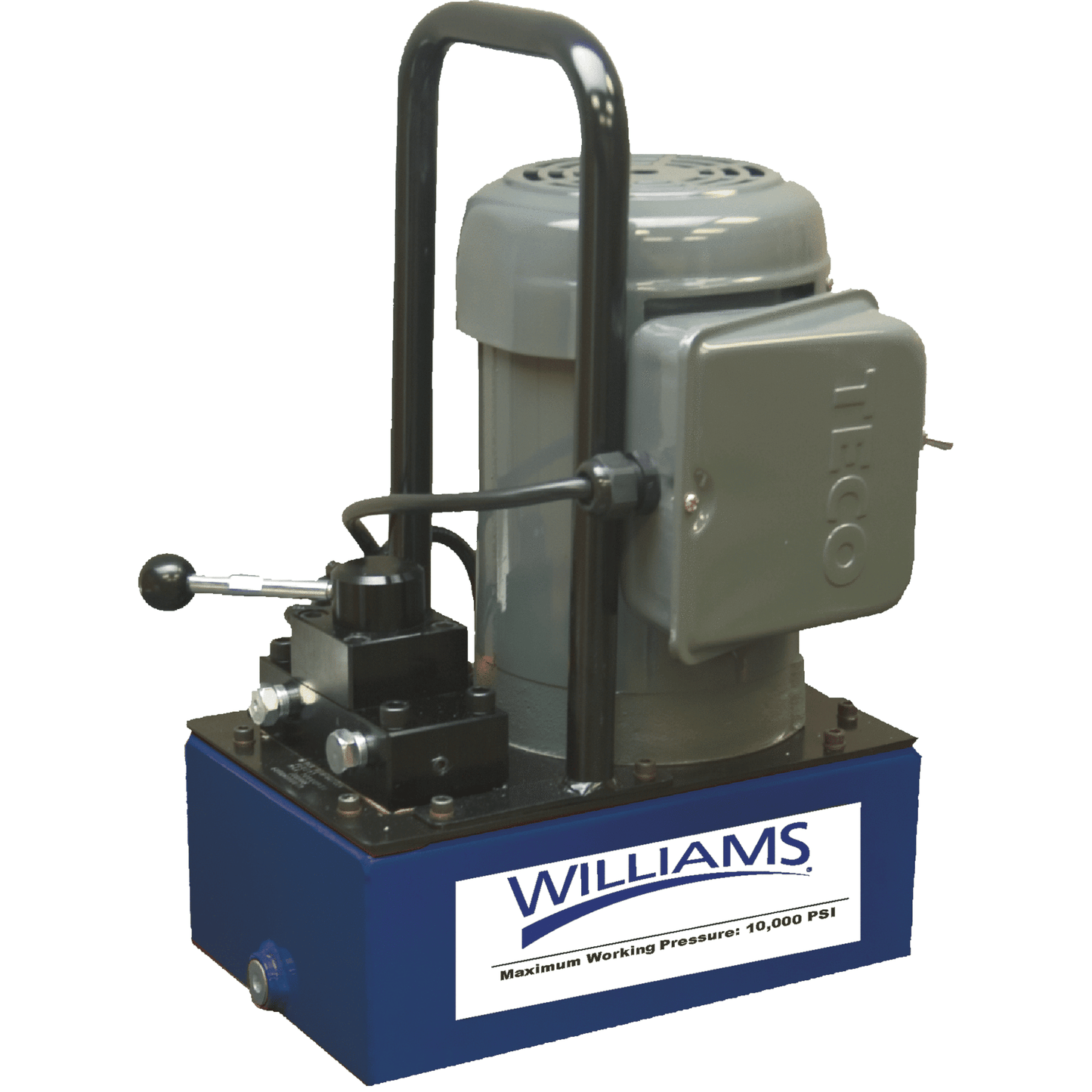

Williams Electric Hydraulic Pump – 1.0 HP, 2-Gallon (JHW5E10H2G)

The Williams JHW5E10H2G is a powerful and reliable electric hydraulic pump designed for industrial applications requiring consistent performance. Featuring a 1.0 HP motor and a 2-gallon oil reservoir, this pump is ideal for operating single-acting cylinders and other hydraulic tools.

Key Features:

• Motor Power: 1.0 HP
• Voltage: 115 V AC
• Current Draw: Approx. 12 A
• Usable Oil Capacity: 2 gallons
• Pressure Ratings:
  • 1st Stage: 350 psi
  • 2nd Stage: 10,000 psi
• Flow Rate:
  • 1st Stage: ~450 in³/min
  • 2nd Stage: ~30 in³/min
• Valve Type: 3-way, 2-position
• Valve Function: Advance / Auto Return
• Control: Pendant switch for motor on/off
• Noise Level: OSHA-compliant (approx. 80 dBA)
