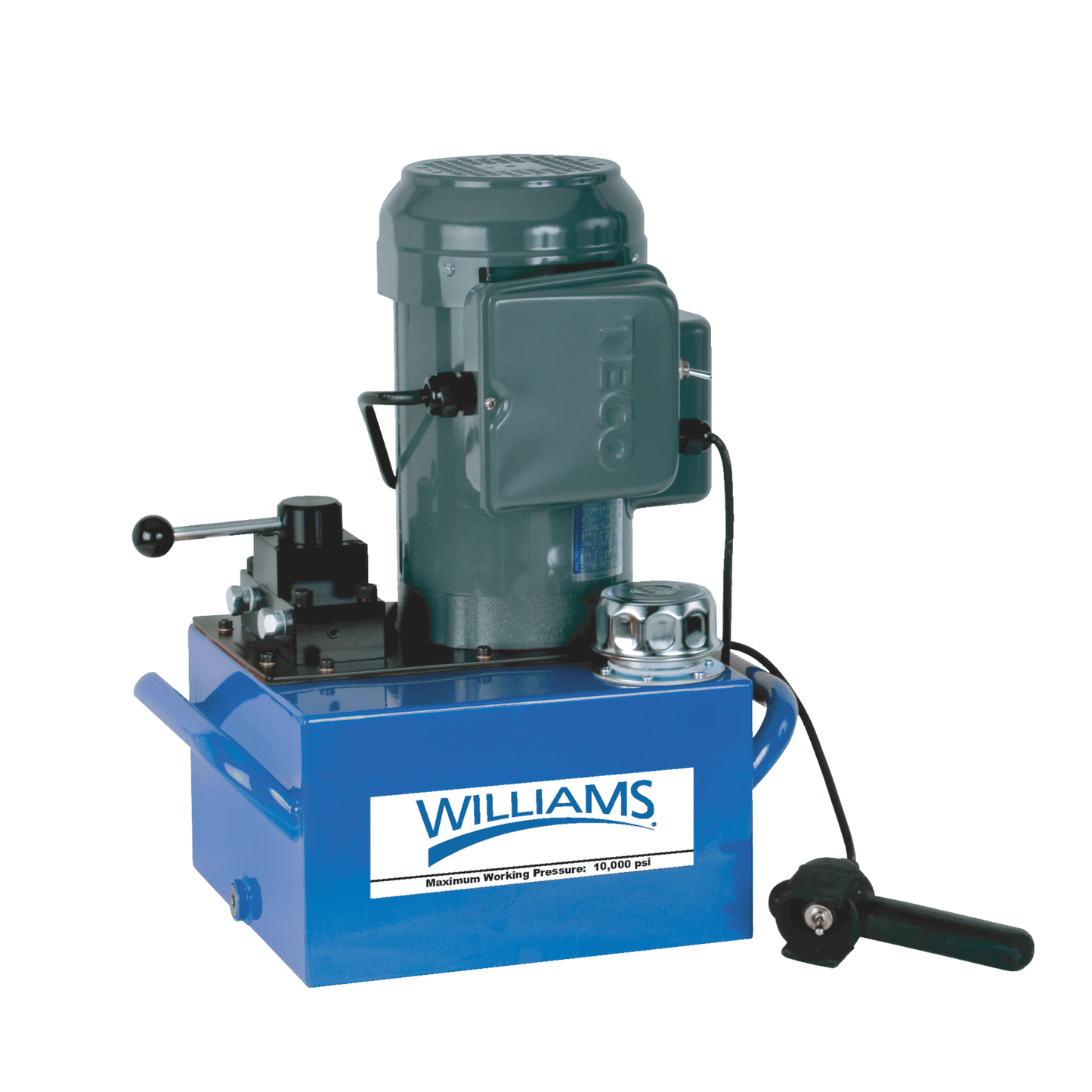

JHW5E05H1GR - Williams - 0.5 H.P. 1 Gallon Electric Pump with Pendant Switch

Williams Electric Hydraulic Pump – 0.5 HP, Pendant Switch, 1-Gallon (JHW5E05H1GR)

The Williams JHW5E05H1GR is a compact, industrial-grade electric hydraulic pump designed for reliability and efficiency in demanding applications. Featuring a 0.5 HP motor and a 1-gallon oil reservoir, this pump is ideal for operating single-acting cylinders and other hydraulic tools.

Key Features:

• Motor Power: 0.5 HP
• Voltage: 115 V AC
• Current Draw: Approx. 9 A
• Usable Oil Capacity: 1 gallon
• Pressure Ratings:
  • 1st Stage: 350 psi
  • 2nd Stage: 10,000 psi
• Flow Rate:
  • 1st Stage: ~233 in³/min
  • 2nd Stage: ~18 in³/min
• Valve Type: 3-way, 2-position
• Valve Function: Advance / Auto Return
• Control: 10 ft pendant switch for motor on/off
• Noise Level: OSHA-compliant (approx. 80 dBA)
