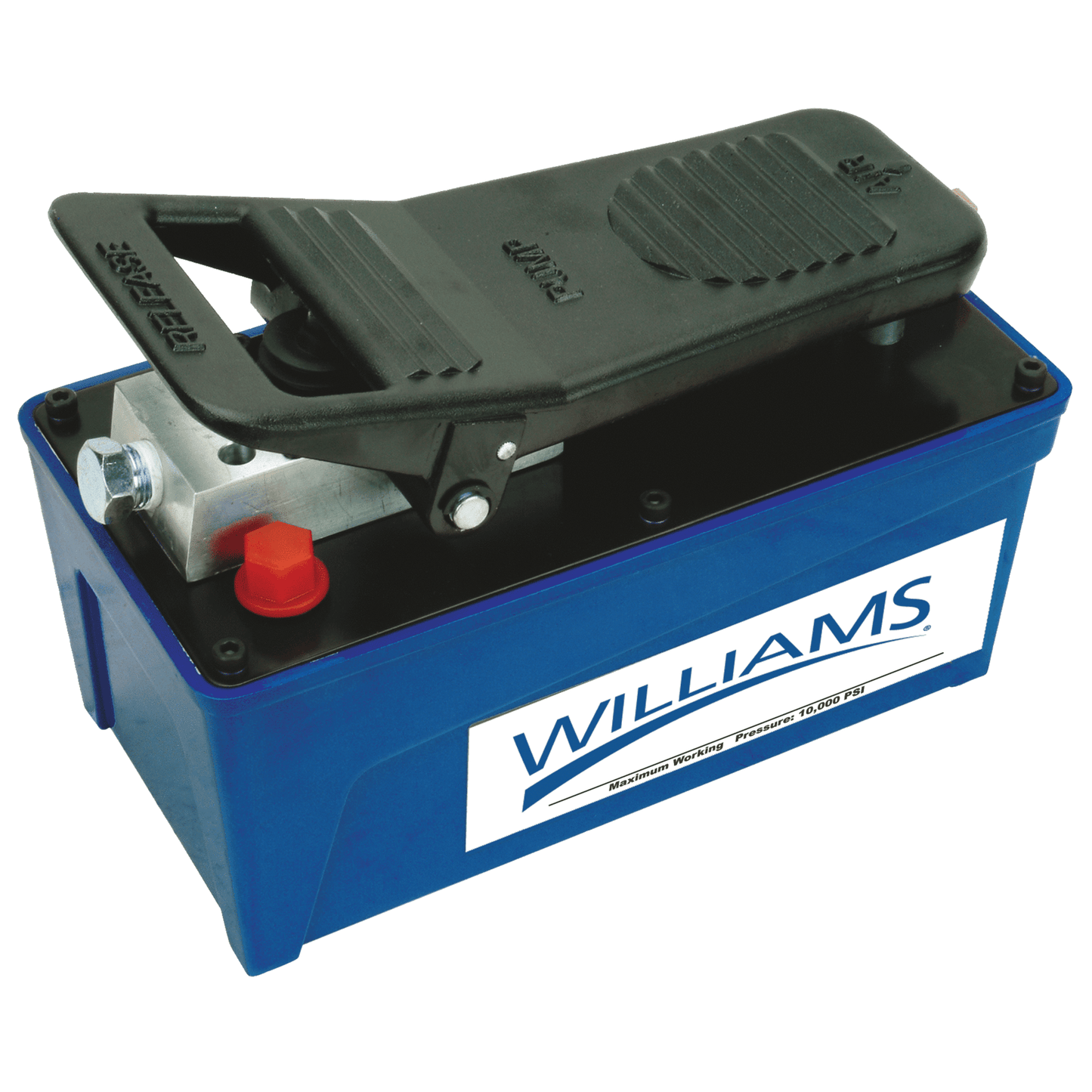

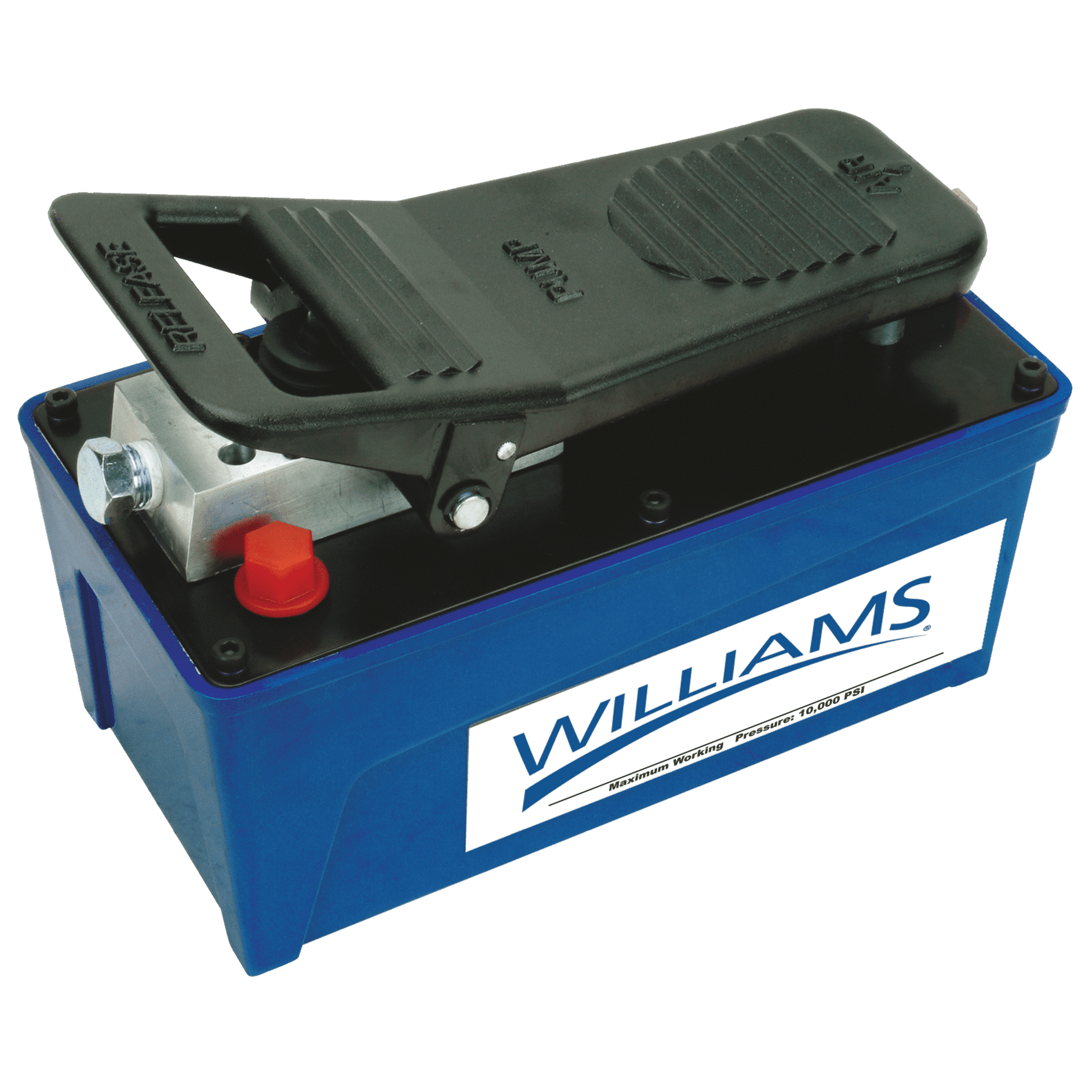

Williams - Air Pump 10,000 PSI Single Acting 36.6 Cu - 5AS60

Williams JHW5AS60 10,000 Psi Single Acting Air Pump 36.6 Cu.

Features

• Pressure relief valve for overload protection
• High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
• Suggested air pressure range: 90-175 psi / 6-12 bar
• Designed to be used with single acting cylinders
• 5AD150M offers a 4-way control valve for operation of double acting cylinders
• 5AS200 offers a turbo function that features high flow at high pressure condition
• Dust cover protection for the release control valve

Product Details

• Part Number: JHW5AS60
• Brand: Williams
• Category: Hand Tools › Industrial Hydraulics
• Dimensions (in) A: 16.54
• Dimensions (in) B: 9.84
• Dimensions (in) C: 7.01
• Dimensions (in) D: 6.18
• Dimensions (in) E: 5.59
• Input Air Pressure Range (psi): 100-200
• Maximum Working Pressure: 10,000 psi / 700 bar
• Oil Output Flow Rate In3 Min Load: 9
• Oil Output Flow Rate In3 Min No Load: 61
• Pressure Rating (psi): 10,000
• Usable Oil Capacity In3: 36.6
• Used With Cylinder: Single Acting
