Williams - Air Pump 10,000 PSI Single Acting 122 Cu - 5AS200
Original price
$1,137.82
-
Original price
$1,137.82
Original price
$1,137.82
$1,137.82
-
$1,137.82
Current price
$1,137.82
SKU WIL-JHW5AS200
Availability:
Out the Door in 7-10 days

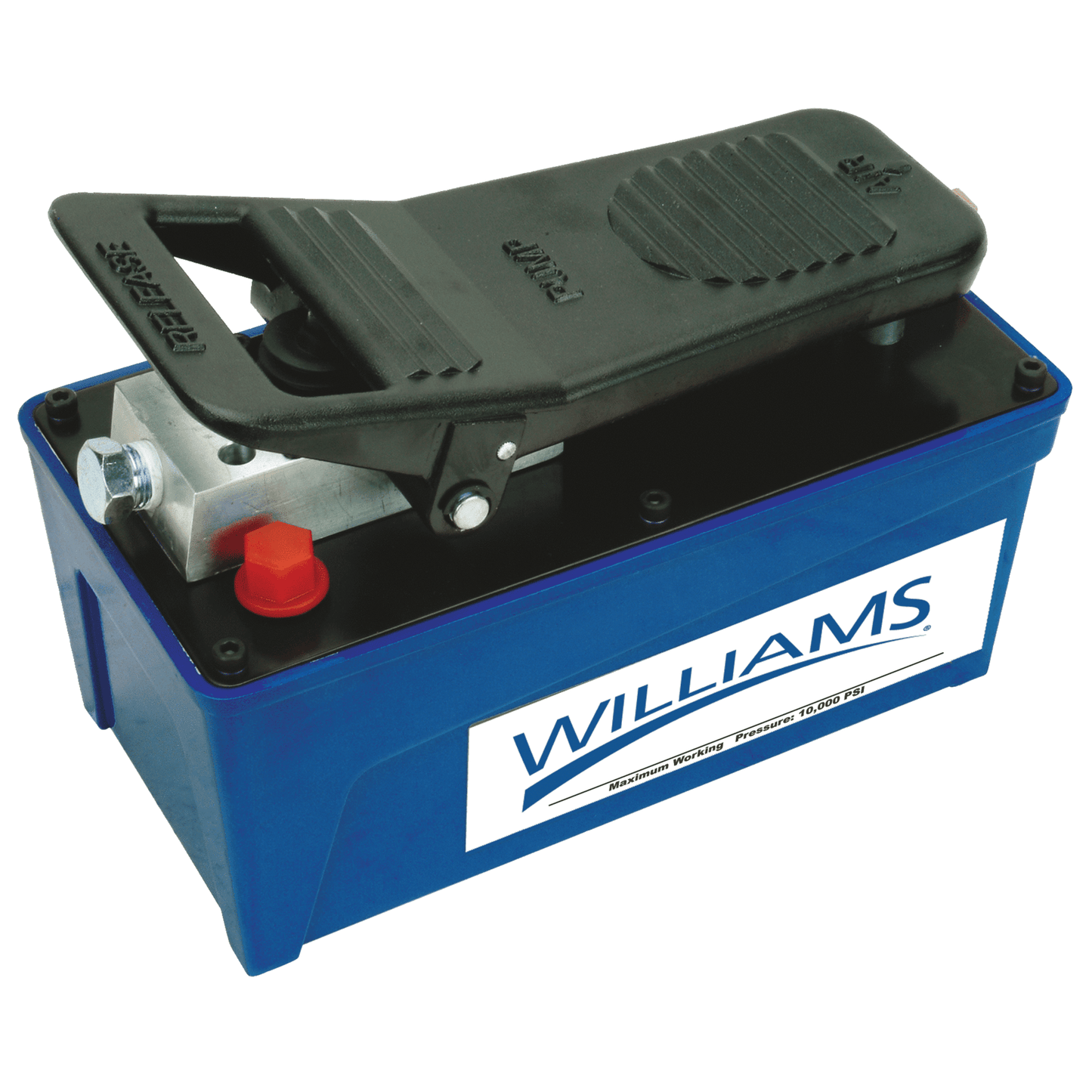

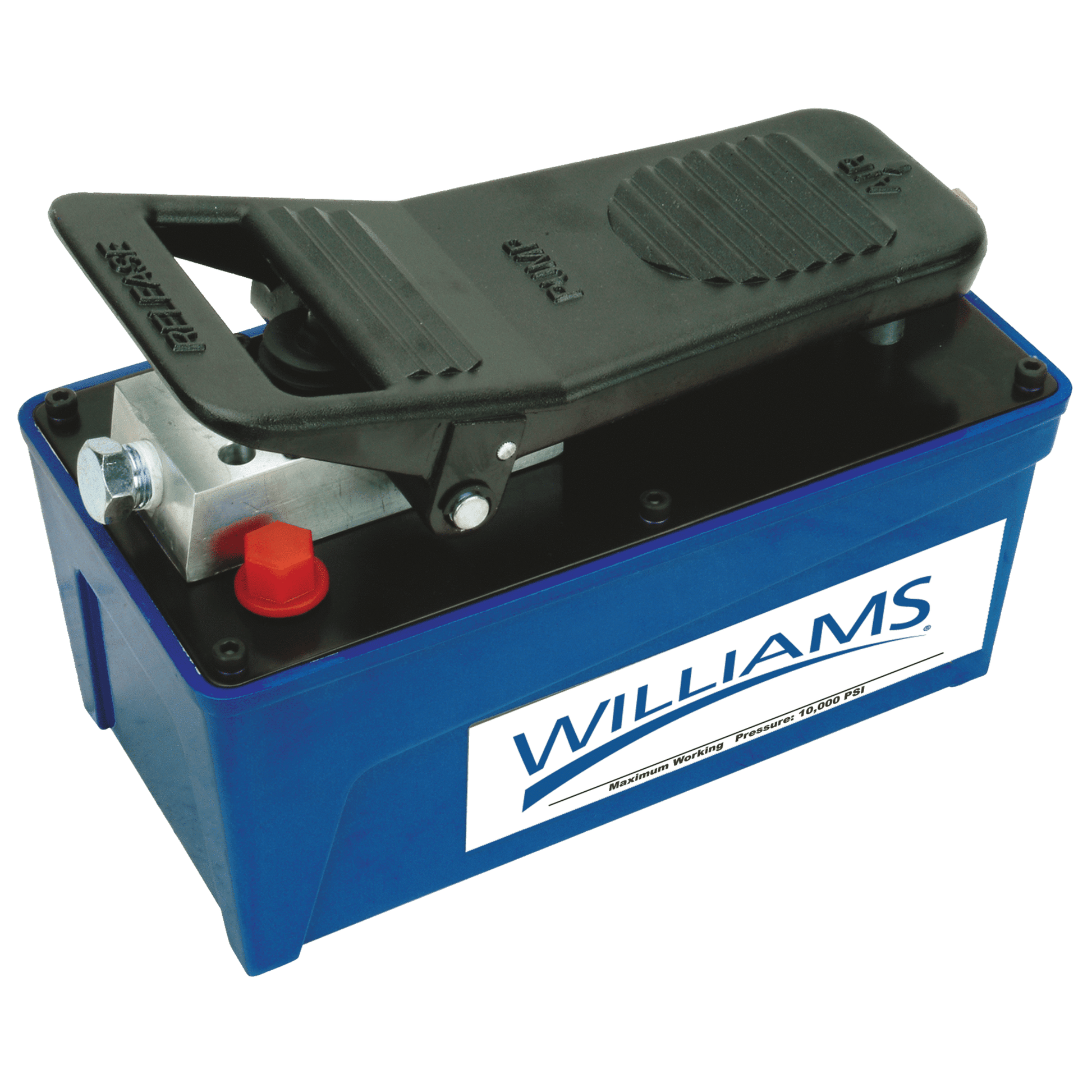

Williams JHW5AS200 10,000 Psi Single Acting Air Pump 122 Cu.
Features
- Designed to be used with single acting cylinders
- 5AS200 offers a turbo function that features high flow at high pressure condition
- Pressure relief valve for overload protection
- Dust cover protection for the release control valve
- 5AD150M offers a 4-way control valve for operation of double acting cylinders
- High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
- Suggested air pressure range: 90-175 psi / 6-12 bar
Product Details
- Part Number: JHW5AS200
- Brand: Williams
- Category: Hand Tools › Industrial Hydraulics
- Dimensions (in) A: 11.57
- Dimensions (in) B: 6.02
- Dimensions (in) C: 7.91
- Dimensions (in) D: 6.18
- Dimensions (in) E: 5.98
- Input Air Pressure Range (psi): 100-200
- Maximum Working Pressure: 10,000 psi / 700 bar
- Oil Output Flow Rate In3 Min Load: 12
- Oil Output Flow Rate In3 Min No Load: 65
- Pressure Rating (psi): 10,000
- Usable Oil Capacity In3: 122.1
- Used With Cylinder: Single Acting
