Williams - Air Pump 10,000 PSI Air / 4 Way Double Acting - 5AD150M
Original price
$1,662.24
-
Original price
$1,662.24
Original price
$1,662.24
$1,662.24
-
$1,662.24
Current price
$1,662.24
SKU WIL-JHW5AD150M
Availability:
Out the Door in 7-10 days

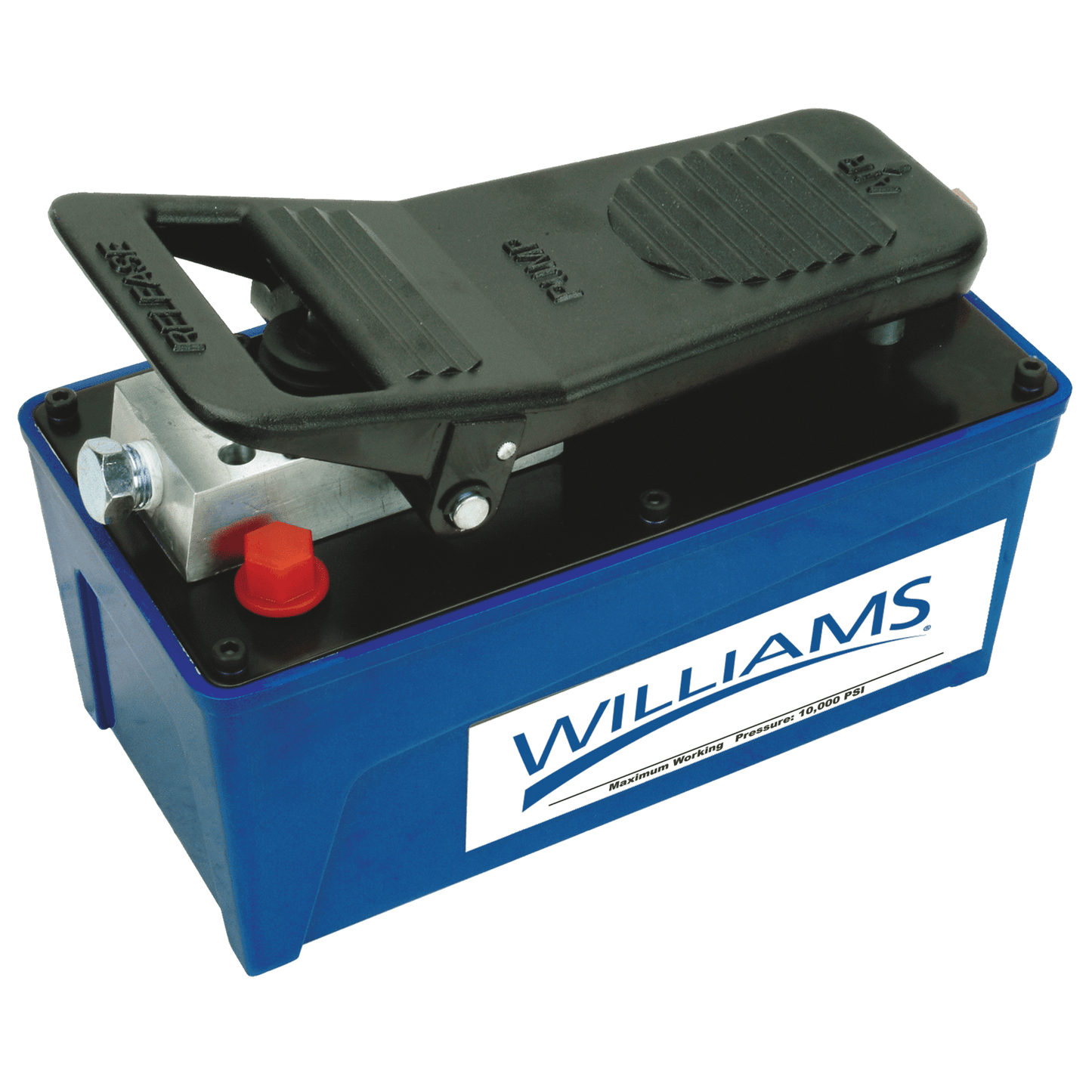

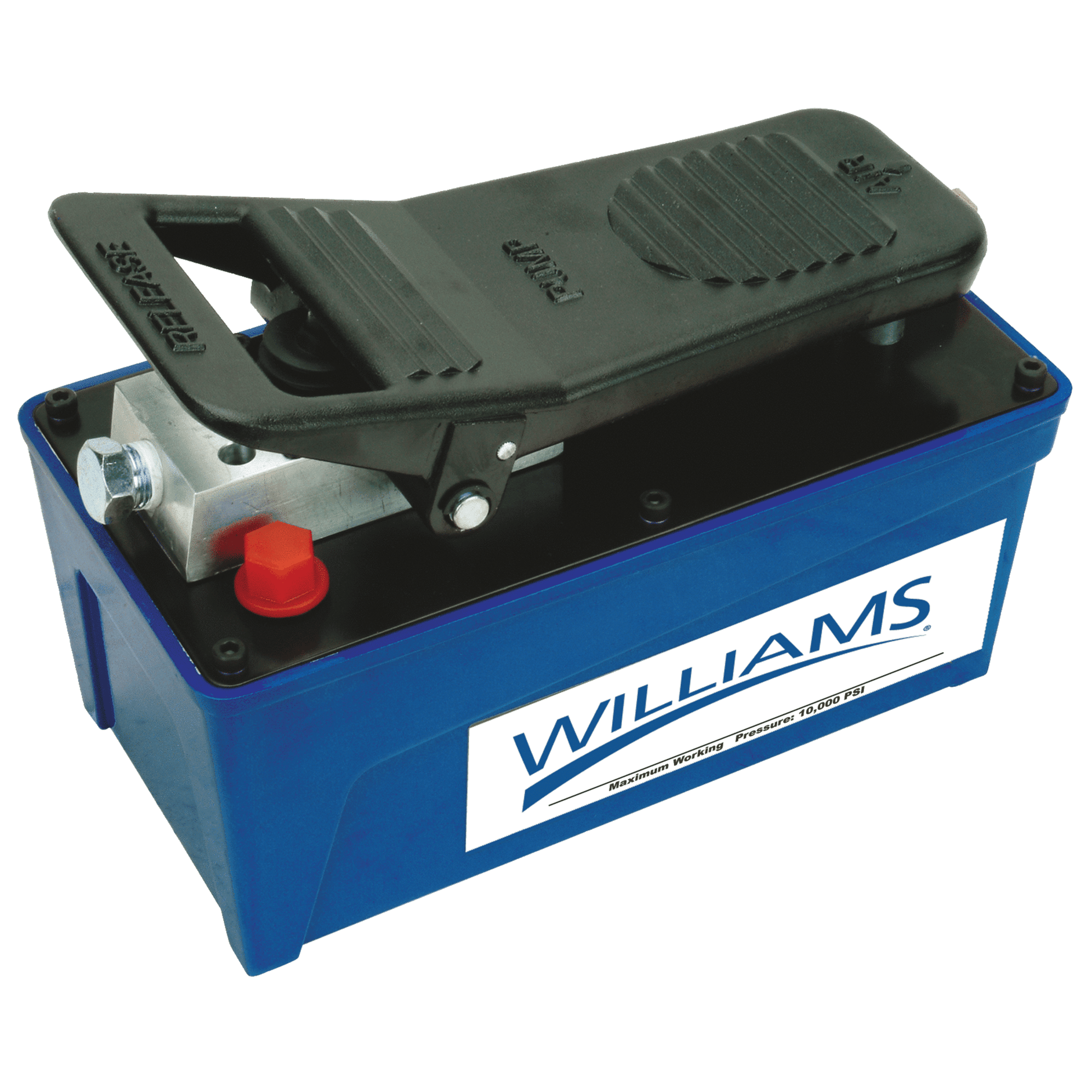

Williams JHW5AD150M 10,000 Psi Air Pump / 4 Way Double Acting Air Pump.
Features
- Dust cover protection for the release control valve
- Suggested air pressure range: 90-175 psi / 6-12 bar
- 5AD150M offers a 4-way control valve for operation of double acting cylinders
- Designed to be used with single acting cylinders
- Pressure relief valve for overload protection
- High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
- 5AS200 offers a turbo function that features high flow at high pressure condition
Product Details
- Part Number: JHW5AD150M
- Brand: Williams
- Category: Hand Tools › Industrial Hydraulics
- Dimensions (in) A: 10.35
- Dimensions (in) B: 5
- Dimensions (in) C: 7.99
- Dimensions (in) D: 5.35
- Dimensions (in) E: 5.35
- Input Air Pressure Range (psi): 100-200
- Maximum Working Pressure: 10,000 psi / 700 bar
- Oil Output Flow Rate In3 Min Load: 11
- Oil Output Flow Rate In3 Min No Load: 66
- Pressure Rating (psi): 10,000
- Usable Oil Capacity In3: 91.5
- Used With Cylinder: Double Acting
