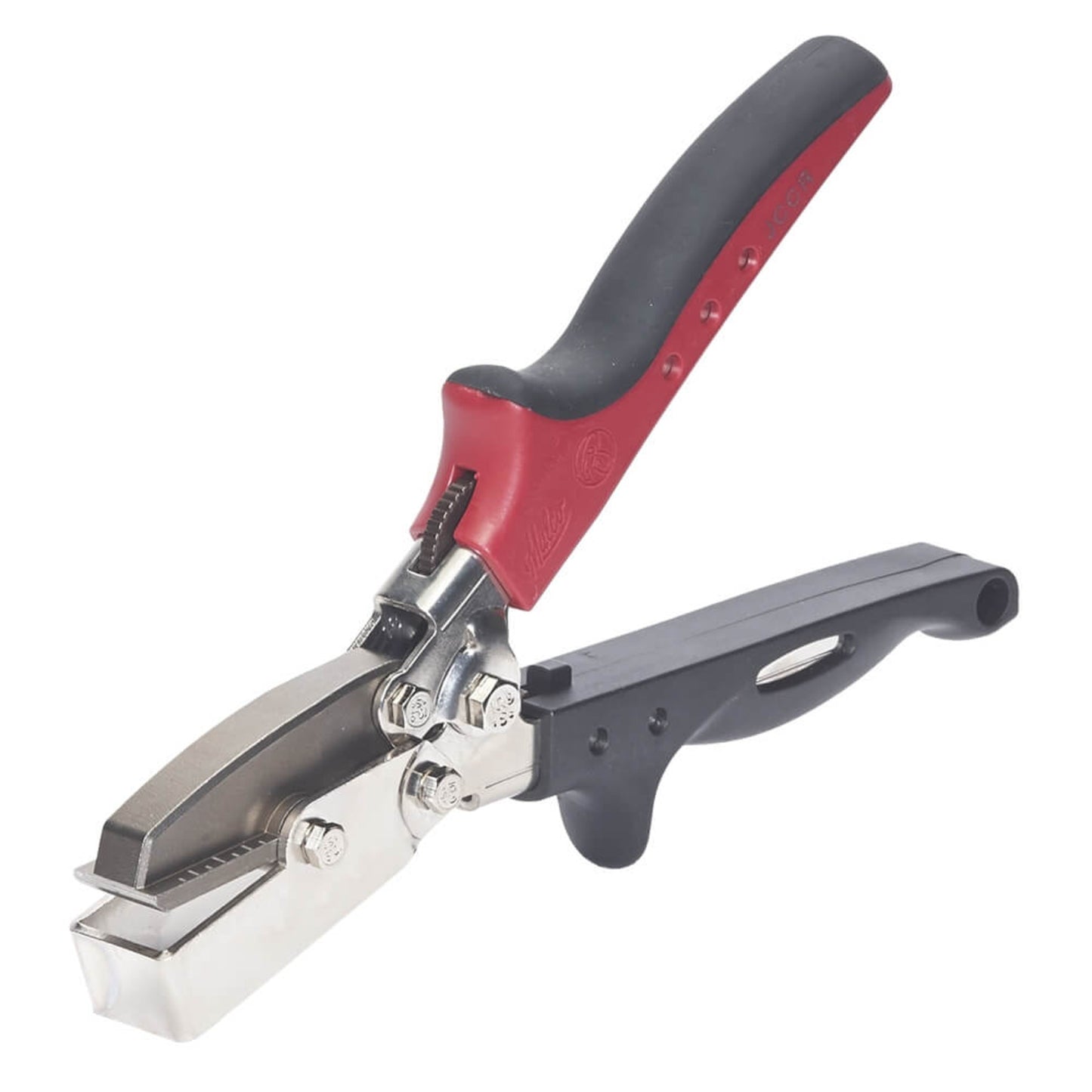

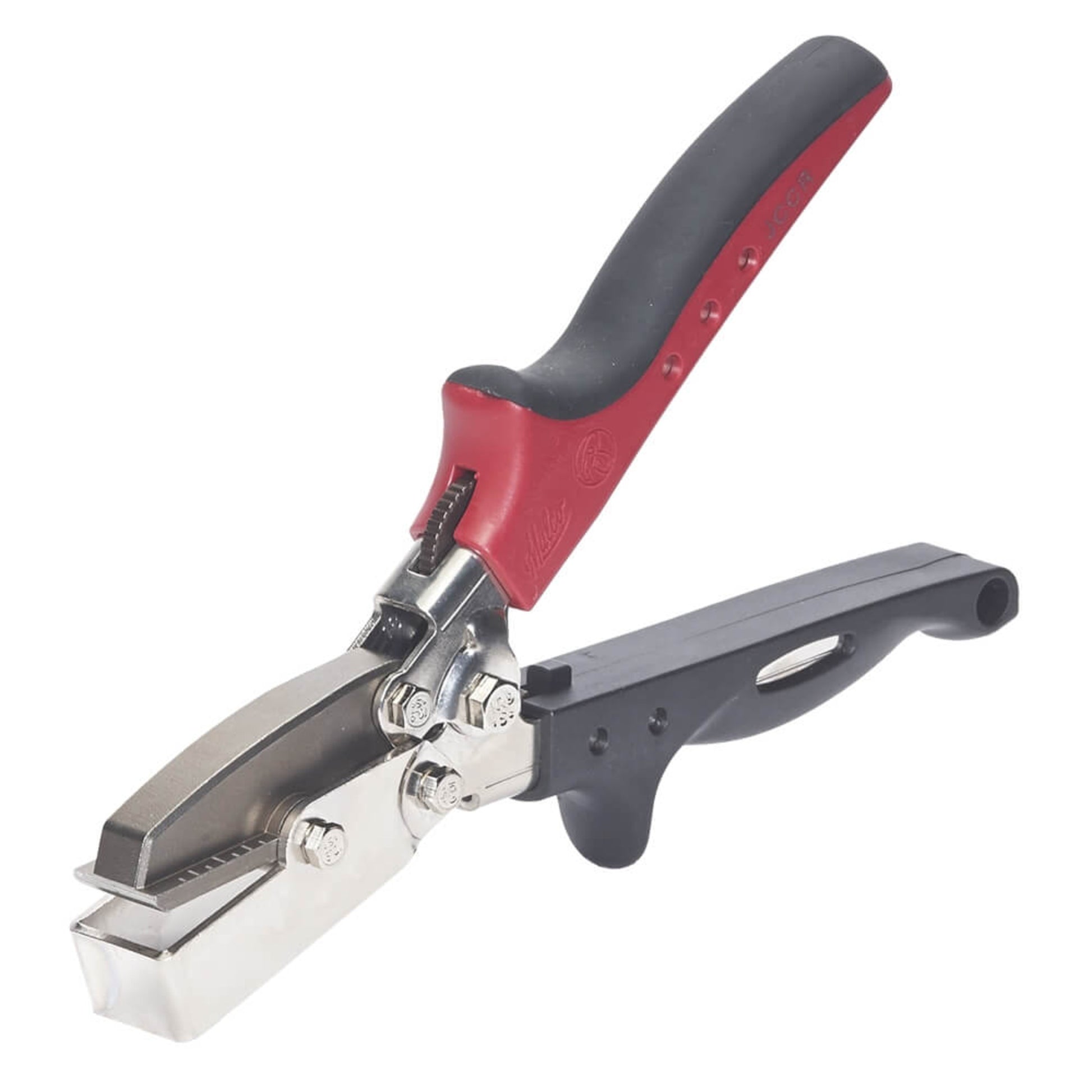

JCCR - Malco - J CHANNEL CUTTER, 5/8" (1EA)

The Malco JCCR is a professional-grade J-Channel Cutter designed specifically for 5/8-inch vinyl channels. Here's a detailed breakdown of its features and specifications:

🔧 Product Overview

• Model: JCCR
• Type: J-Channel Cutter
• Channel Size Compatibility: 5/8 inch (15.9 mm)
• Knockout Width: 0.840 inches (21 mm)
• Material: Hardened all-steel construction
• Finish: Rust-resistant nickel chrome and black oxide
• Handle Type: Ergonomic RedLine Handles
• Mechanical Advantage: 7:1 compound leverage

🛠 Key Features

• Multi-Function Cutting: Makes drain tabs, downstream notch cutouts, and 45° miter trim cuts in vinyl channel.
• Precision Control: Graduations on the upper jaw gauge tab or notch depths from 3/8" to 1-1/4" (9.5 – 31.2 mm).
• Ergonomic Design: RedLine handle technology enhances comfort and control with:
  • Non-slip grip insert
  • Spring handle actuation
  • Thumb-operated latch
• One-Hand Operation: Engineered for ease of use with light hand pressure triggering a single-click signal for perfect cuts.
• Durability: Built for long service life in demanding job site conditions
