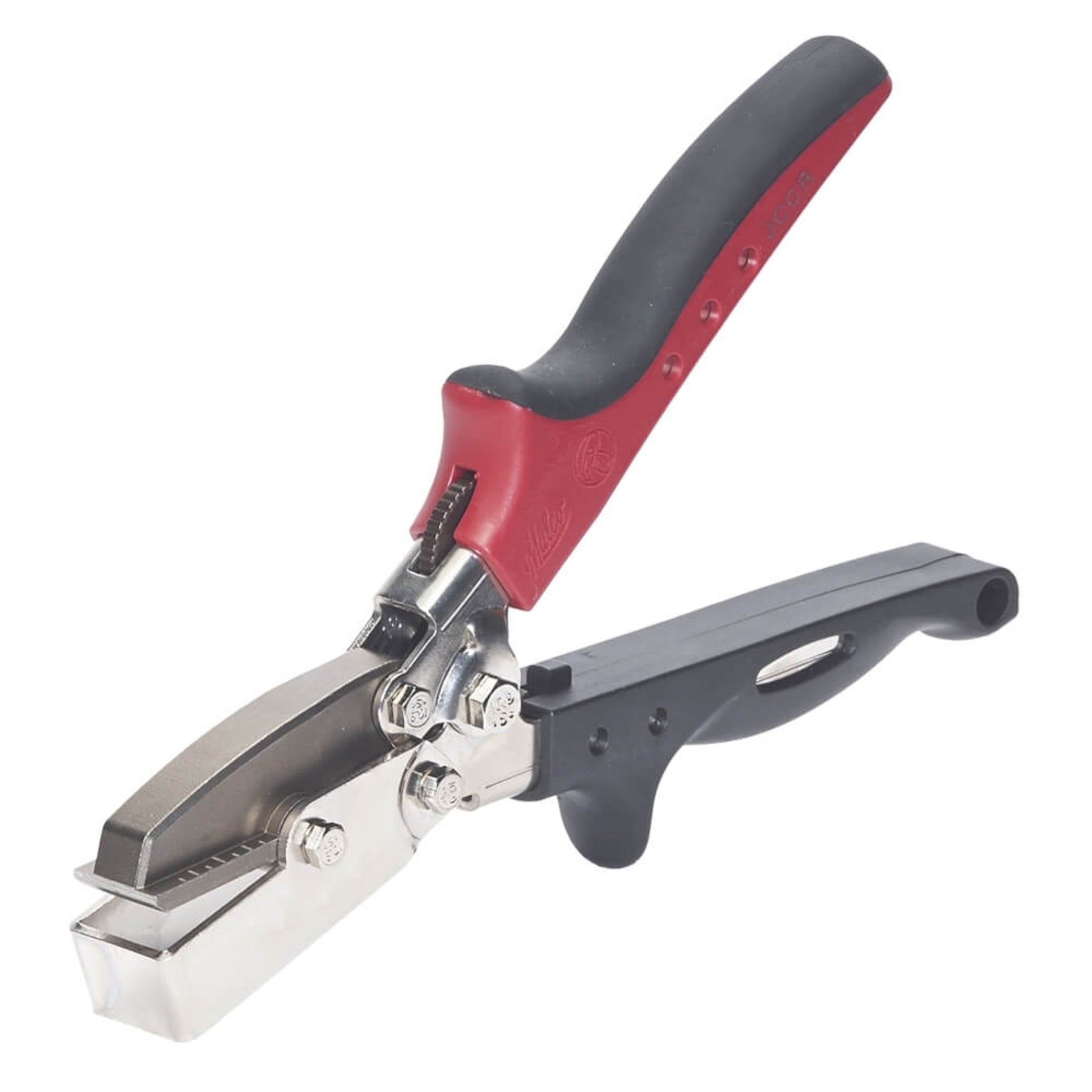

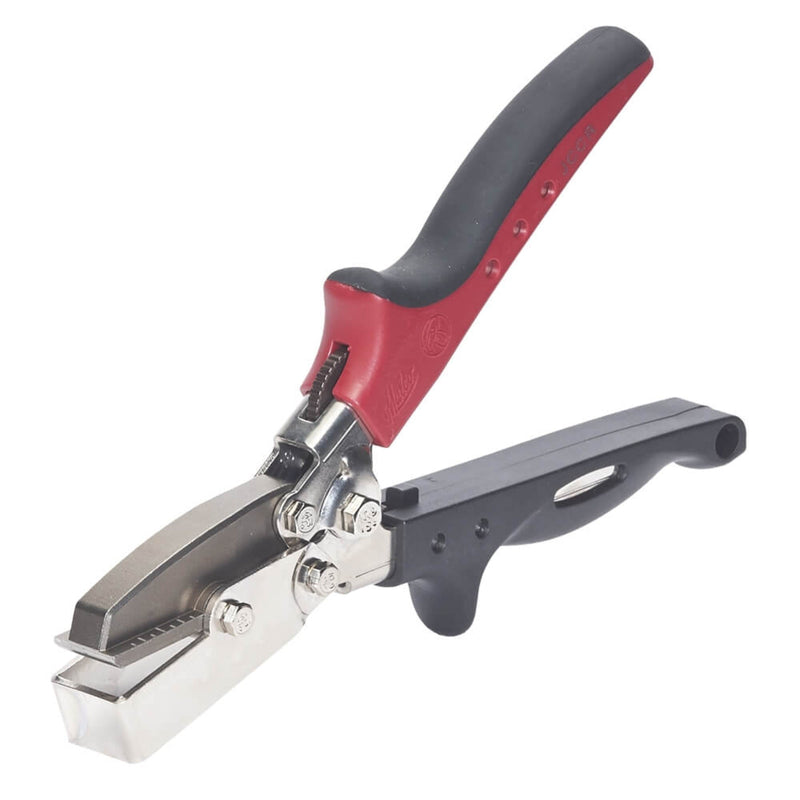

JCC75R - Malco - J CHANNEL CUTTER, 3/4" (1EA)

The Malco JCC75R is a professional-grade J-Channel Cutter designed for ¾-inch vinyl channels, commonly used in siding installations. Here's a comprehensive overview:

🔧 Product Overview

• Model: JCC75R
• Type: J-Channel Cutter
• Nominal Channel Size: ¾ inch (19.1 mm)
• Knockout Width: 0.975 inches (24 mm)
• Material: Hardened all-steel construction
• Finish: Rust-resistant nickel chrome and black oxide
• Handle Type: Ergonomic RedLine Handles
• Mechanical Advantage: 7:1 compound leverage

🛠 Key Features

• Multi-Function Cutting:
  • Makes drain tabs
  • Downstream notch cutouts
  • 45° miter trim cuts in vinyl channel
• Graduated Jaw:
  • Gauges tab or notch depths from 3/8" to 1-1/4" (9.5 – 31.2 mm)
• Ergonomic RedLine Handle Technology:
  • Non-slip grip insert
  • Spring handle actuation
  • Thumb-operated latch
  • Designed for one-hand operation
• Precision Control:
  • Light hand pressure triggers a single-click signal for accurate cuts
• Durability:
  • Built for long service life in field conditions

🔍 Note: Although labeled for ¾" J-channel, the actual knockout size is 1 inch to accommodate industry-standard sizing and prevent water damage from freezing
