Solenoid Valve 1-1/2 (40MM) for Refrigerant - Hansen
Original price
$2,148.33
-
Original price
$2,148.33
Original price
$2,148.33
$2,148.33
$2,148.33
-
$2,148.33
Current price
$2,148.33
SKU HAN-HS4A/4
Availability:
Call for Availability

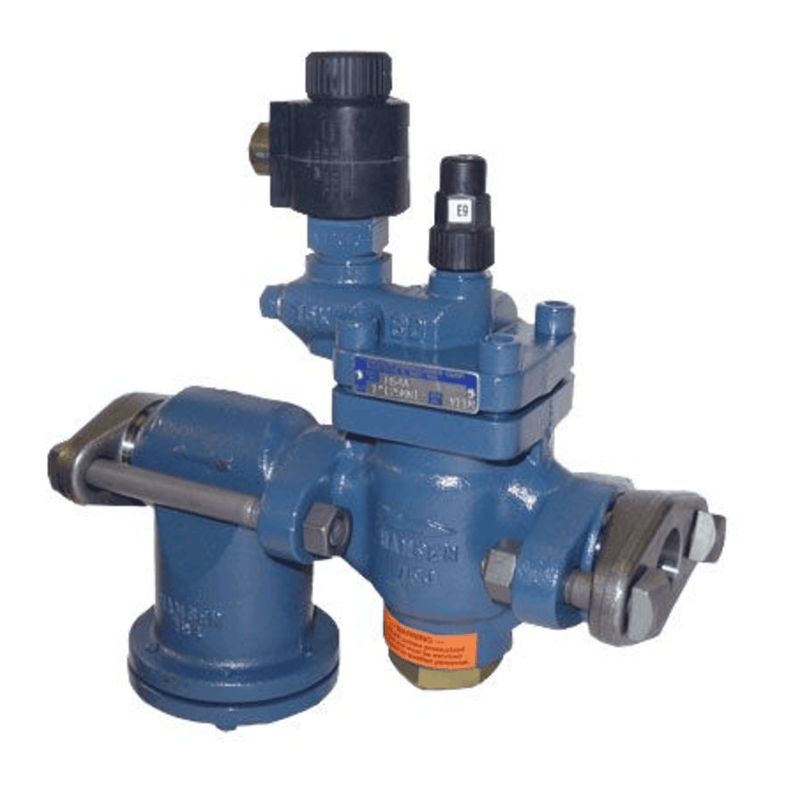

The Hansen HS4A/4 is a 1-1/2" (40mm) solenoid valve designed for refrigerant control in industrial refrigeration systems. It is part of the HS4A series, known for its rugged construction, dirt resistance, and reliable operation even in oil-free systems.
Key Specifications
- Model: HS4A/4
- Port Size: 1-1/2" (40mm)
- Connection Type: Flanged
- Body Material: Ductile iron (ASTM A536)
- Piston: Steel, disc type with spring-energized Teflon seal
- Main Seat: Stainless steel
-
Safe Working Pressure:
- Standard: 400 psig (28 bar)
- CO₂ Applications: 600 psig (41 bar)
- Operating Temperature: -60°F to +240°F (-50°C to +115°C)
- Dimensions: 12" L × 11" W × 9" H
- Weight: ~38 lbs
Features
- Pilot-Operated Design: Uses upstream pressure to open the valve when energized; spring closes it when de-energized.
- Superior Dirt Resistance: Teflon dirt-wiping piston seal and stainless steel spring ensure reliable operation.
- Manual Opening Stem: Located on top for easy access and longer seal life.
- Universal Coil Compatibility: Uses a single, low-wattage coil across all valve sizes.
- CSA Certified
- Refrigerant Compatibility: Ammonia, R22, R134a, CO₂, and other approved refrigerants
