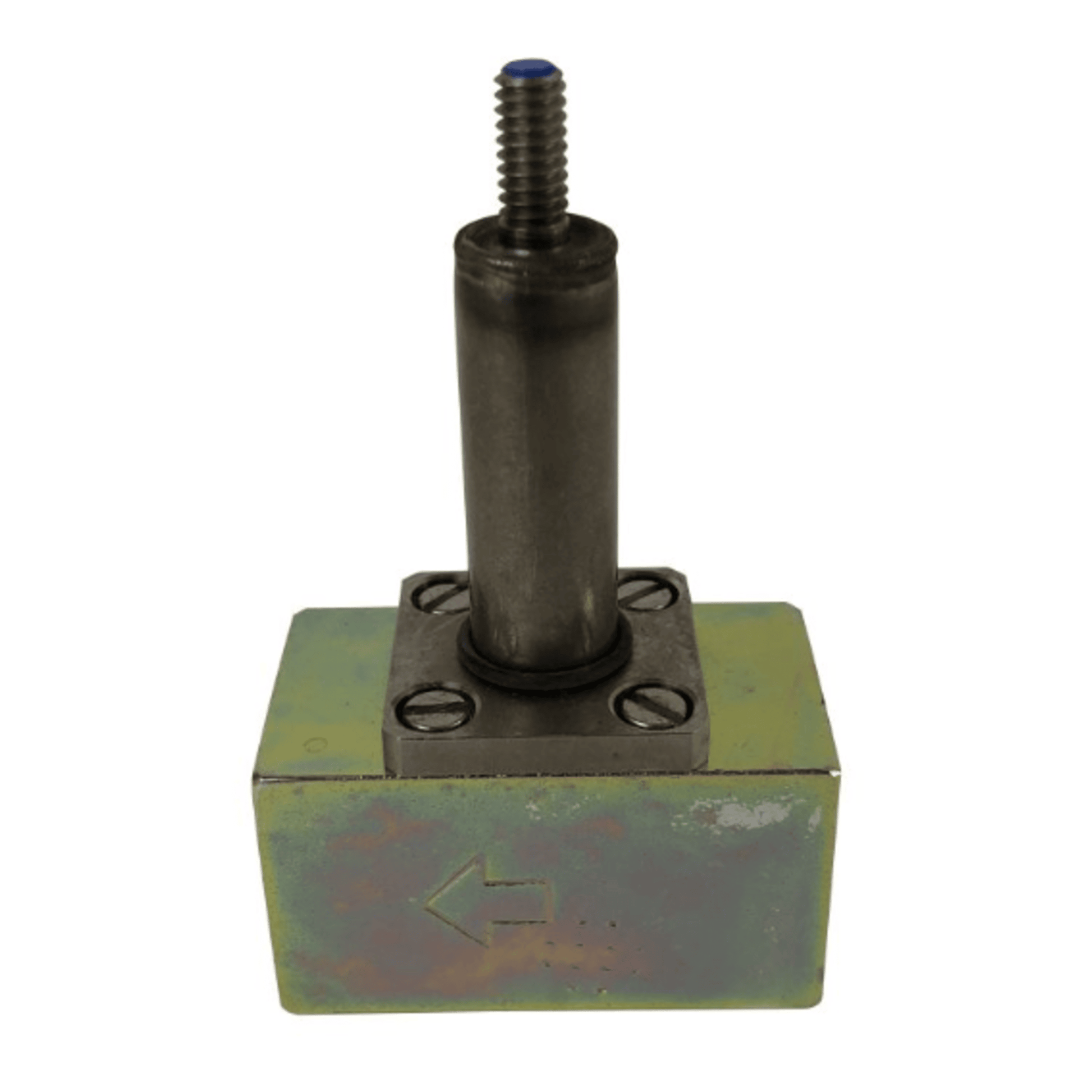

HS2F/1 - Hansen - 5/32 Solenoid Valve, Flanged

The Hansen HS2F/1 is a 5/32" (4 mm) flanged solenoid valve designed for industrial refrigeration systems. It is part of the HS2 series, known for compact, rugged, and reliable performance in demanding environments.

Key Specifications

• Model: HS2F/1
• Port Size: 5/32" (4 mm)
• Connection Type: Flanged
• Body Material: Plated steel
• Seat Material: Teflon
• Safe Working Pressure:
  • Standard: 400 psig (27 bar)
  • CO₂ Applications: 600 psig (40 bar)
• Operating Temperature: -60°F to +240°F (-50°C to +115°C)
• Dimensions:
  • Width: 6.2"
  • Height: 4"
  • Length: 7.3"
• Weight: ~2 lbs

Features

• Direct Lift Design: Stainless steel plunger with Teflon seat ensures fast, reliable operation.
• Leak-Tested: Each valve is tested for tightness and reliability.
• Compact and Durable: Ideal for pilot control, liquid feed, defrost gas control, suction shutoff, and purge lines.
• Electrical Coil Options:
  • Standard ½" conduit fitting
  • DIN plug
  • Junction box
• CSA Certified
• Optional Accessories: Close-coupled strainers, pilot lights
