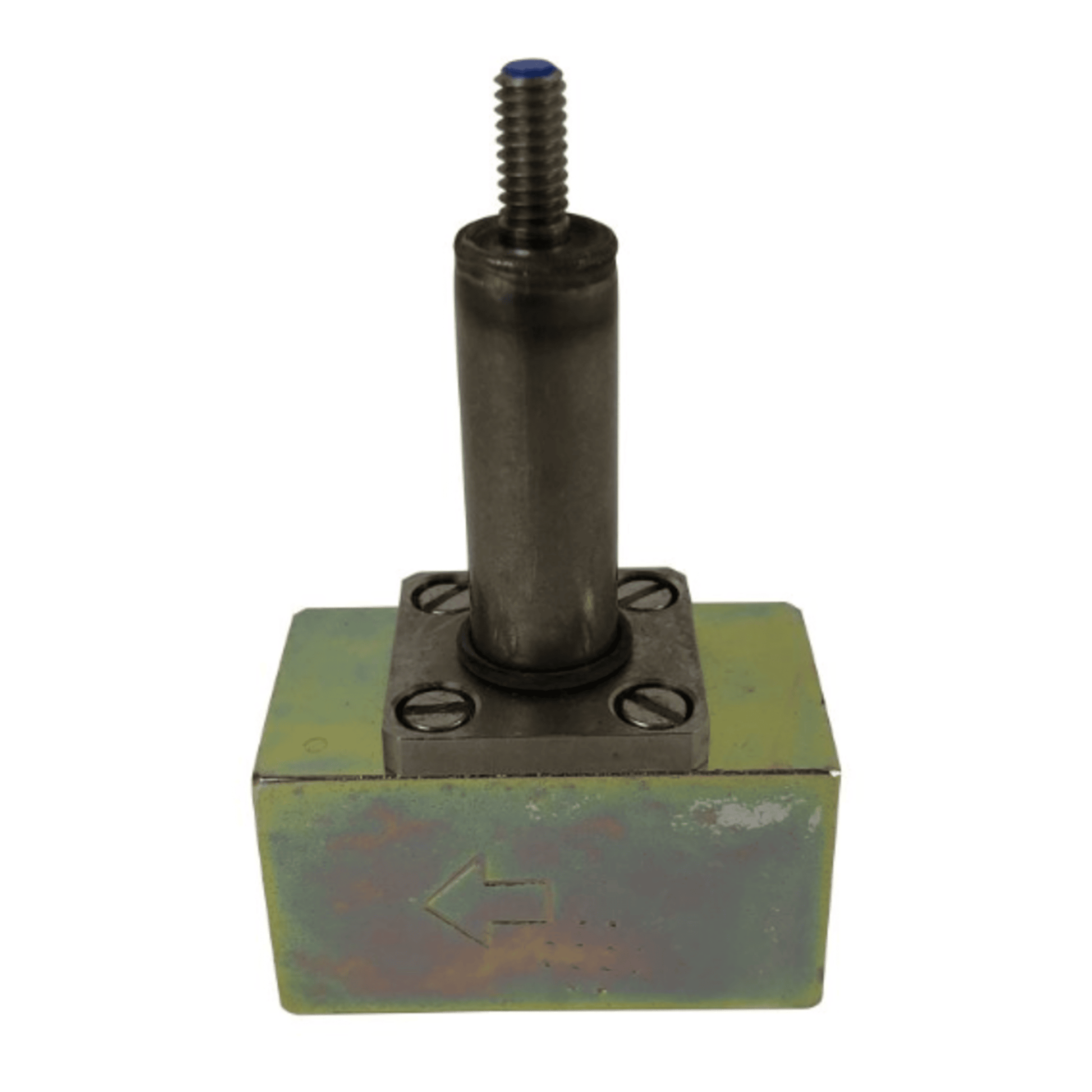

HS2B/1 - Hansen - 5/32 Brass Solenoid End Valve For Water 1/4 Threaded

The Hansen HS2B/1 is a 5/32" brass solenoid end valve specifically designed for water applications, with a 1/4" threaded connection. It is part of Hansen’s HS2 series, known for compact, rugged, and reliable solenoid valves used in industrial refrigeration and fluid control systems.

Key Specifications

• Model: HS2B/1
• Port Size: 5/32" (4 mm)
• Connection Type: 1/4" FPT (threaded)
• Body Material: Brass
• Seat Material: Teflon
• Plunger: Stainless steel, direct lift
• Safe Working Pressure:
  • Standard: 400 psig (27 bar)
  • Optional: 600 psig (40 bar) for CO₂
• Operating Temperature: -60°F to +240°F (-50°C to +115°C)
• Electrical Coil:
  • Voltage: 24V standard (others available)
  • Power: 19 watts
  • Connection: ½" NPSM conduit, DIN plug, or quick-disconnect
  • Enclosure: NEMA 3R (rainproof) and NEMA 4 (splashproof/IP65)

Features

• Designed for Water Use: Brass body construction ensures corrosion resistance in water applications.
• Compact and Durable: Ideal for pilot control or small flow systems.
• Direct Lift Operation: Ensures fast and reliable valve actuation.
• Self-Cleaning Action: Teflon seat and stainless steel orifice reduce sticking and fouling.
• CSA Certified
• Applications: Water control, pilot lines, small liquid feed systems, and general-purpose fluid shutoff
