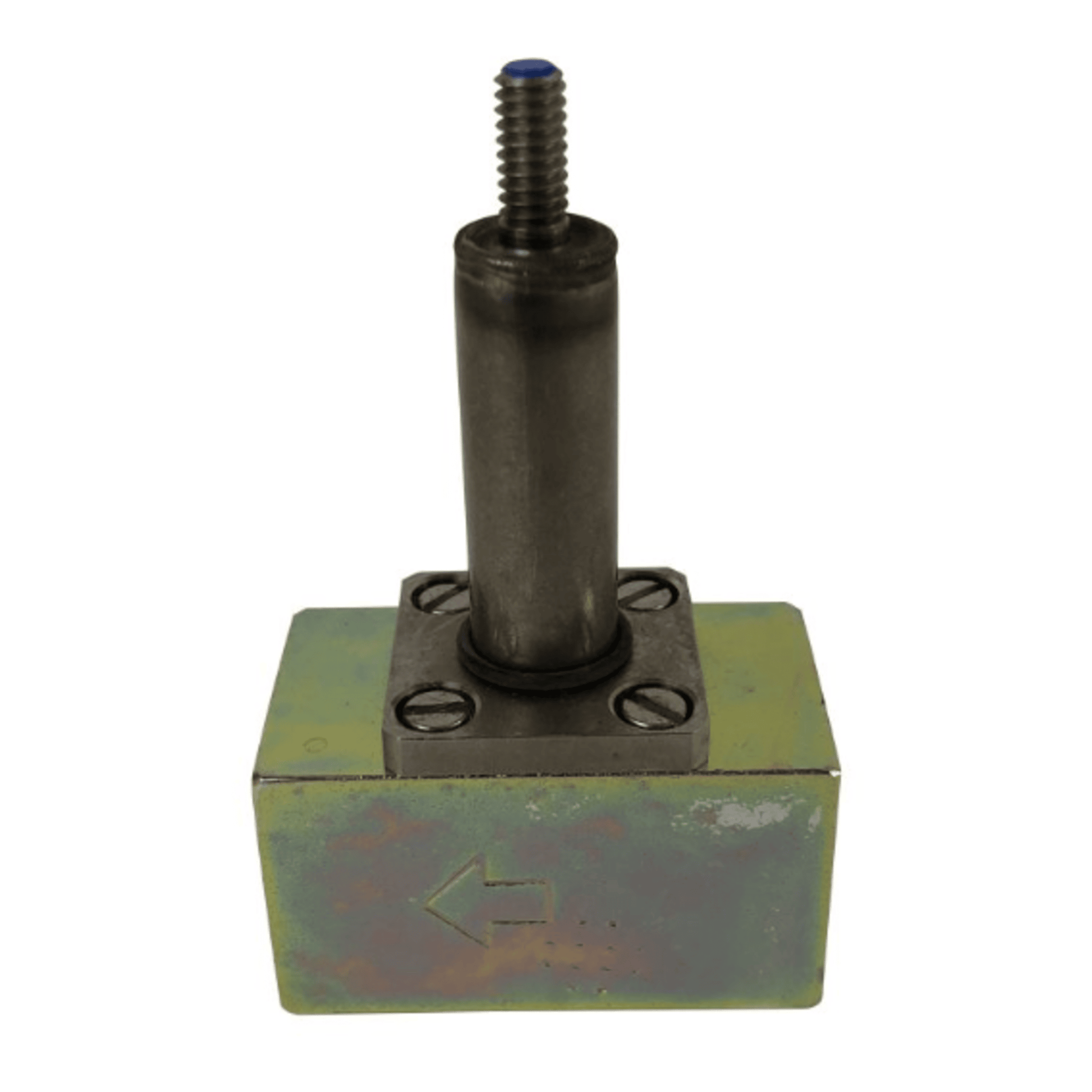

HS2/1 - Hansen - 5/32 Solenoid End Valve REF. 1/4 Threaded End Connection ECTN

The Hansen HS2/1 is a 5/32" (4 mm) solenoid end valve with a 1/4" threaded end connection, designed for industrial refrigeration systems. Here's a detailed overview of its specifications and features:

Key Specifications

• Model: HS2/1
• Port Size: 5/32" (4 mm)
• End Connection: 1/4" FPT (threaded)
• Body Material: Plated steel alloy
• Seat Material: Teflon
• Plunger: Stainless steel, direct lift
• Safe Working Pressure:
  • Standard: 400 psig (27 bar)
  • Optional: 754 psig (52 bar) for CO₂ applications
• Operating Temperature: -60°F to +240°F (-50°C to +115°C)
• MOPD (Max Operating Pressure Differential):
  • Standard: 300 psi (20 bar)
  • Optional: 580 psi (40 bar) available
• Electrical Coil:
  • Voltage: 24V standard (others available)
  • Power: 19 watts
  • Connection: ½" NPSM conduit fitting, DIN plug, or quick-disconnect options
  • Enclosure: NEMA 3R (rainproof) and NEMA 4 (splashproof/IP65)

Features

• Compact and Rugged Design: Ideal for pilot control or small flow applications.
• Direct Lift Operation: Ensures fast and reliable opening/closing.
• Self-Cleaning Action: Teflon seat and stainless steel orifice reduce sticking.
• Versatile Applications: Used for pilot control of larger valves, liquid stop, defrost gas control, and more.
• CSA Certified
• Heavy-Duty Construction: With removable solenoid tube and aluminum gasket for leak resistance
