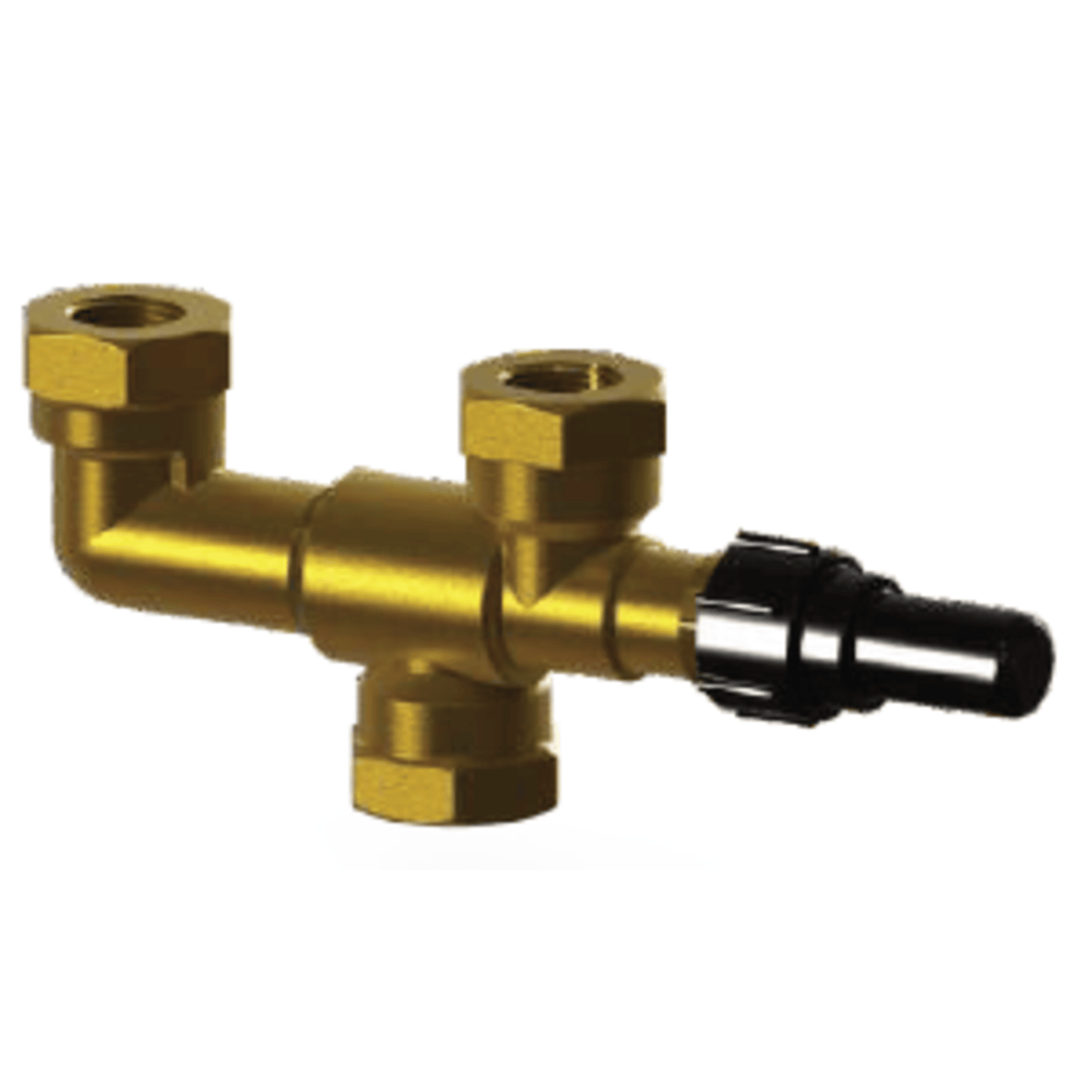

923 - Packed Stem Dual Shut-Off - Brass 9.525mm - Henry

The Henry 923 Three Way Dual Shut-Off Valve is designed for efficient and reliable operation in refrigeration and air conditioning systems. Here are the key technical specifications:

• Body Material: Forged Brass
• Inlet and Outlet Connection: 3/8" NPT (National Pipe Thread)
• Pressure Rating: Maximum working pressure of 675 psi (46.6 bar)
• Temperature Range: -20°F to +300°F (-29°C to +149°C)
• Stem Material: Hardened Steel
• Seal Material: Graphite-based packing for the stem seal
• Cap Material: Molded Plastic
• Design: Packed stem, non back-seating design
• Applications: Suitable for use with HCFC and HFC refrigerants, associated oils, and other industrial fluids non-corrosive to brass and steel
• Features:
  • Allows for the replacement of one pressure relief device while the other remains in service, ensuring continuous protection
  • Compact and robust design
  • Easy to install and maintain

This valve is ideal for maintaining system integrity and safety during servicing
