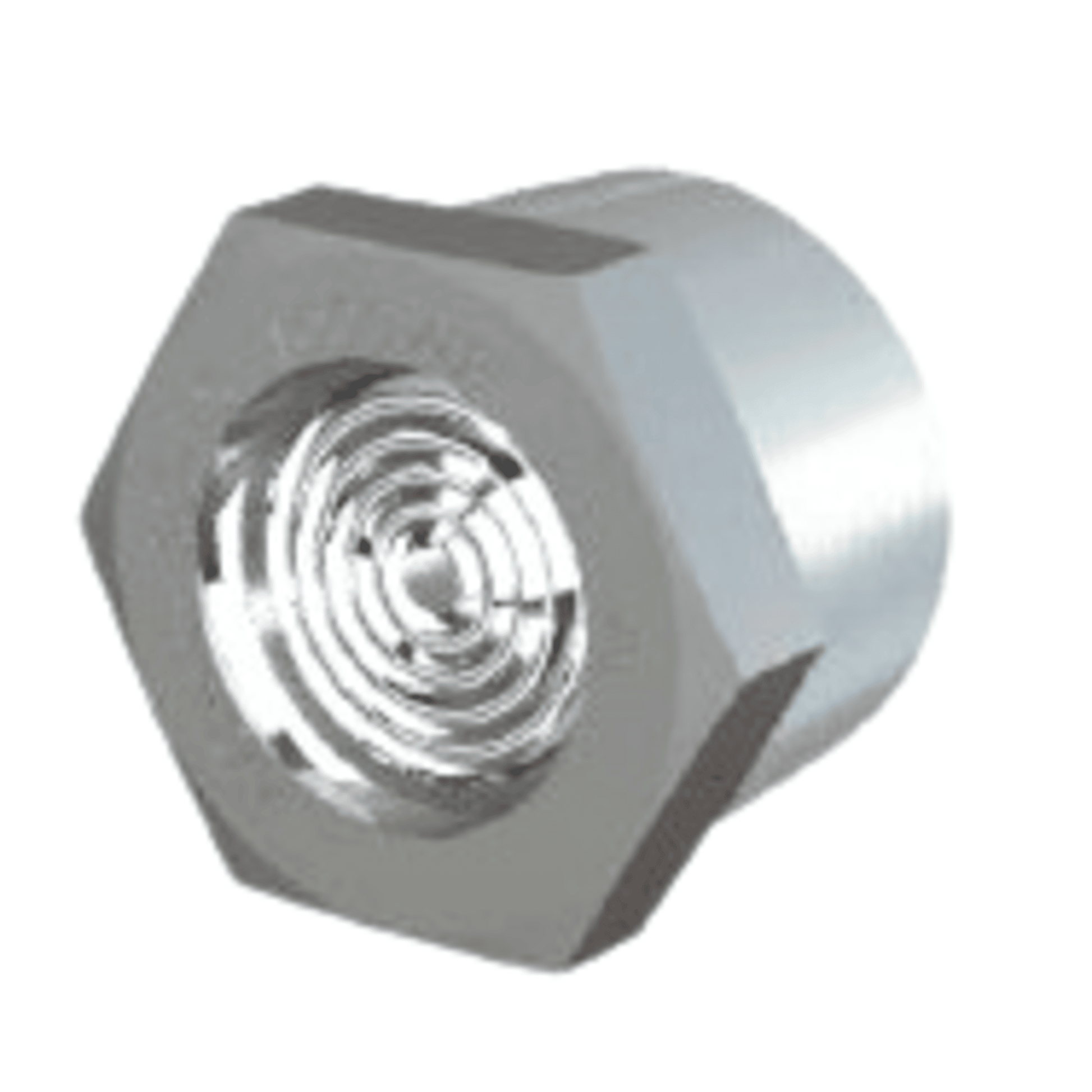

Henry - Sight Glass, Reflex Lens, 2" MPT, 51mm - SG-1116
Original price
$76.66
-
Original price
$76.66
Original price
$76.66
$76.66
-
$76.66
Current price
$76.66
SKU HEN-SG-1116
Availability:
We will Check on Delivery Time and Advise
Henry SG-1116 Sight Glass, Reflex Lens, 2" MPT, 51mm.
Have a visual indication of liquid level. This may be achieved by use of flat glass, “bullseye” glass, or with a floating ball.
Features
- NPT Male connection to tank fitting
- Hermetically fused viewing lens
- Rated for high pressure
- Nickel plated steel body for moderate corrosion protection
- Three styles of glass for visual detection
Product Details
- Part Number: SG-1116
- Brand: Henry Technologies
- Series: Liquid Level Sight Glass Screw In Type
- Category: System Indicators › Sight Glasses
- Suitable For: Conventional Refrigerants
- Max Working Pressure: 69 Barg (1000 PSIg) for UL 140 Barg (2030 PSIg) when used on CE/UKCA pressure equipment
- Operating Temperature Range: -29˚C to +150˚C (-20°F to +300°F)
- Refrigerant Compatibility: A2L, CO2, HCFC, HFC and R717 (except ball float models) where materially compatible
- Sizes Available: 1/2" NPT Male to 2" NPT Male
- Product Certification: CE, UKCA and UL
