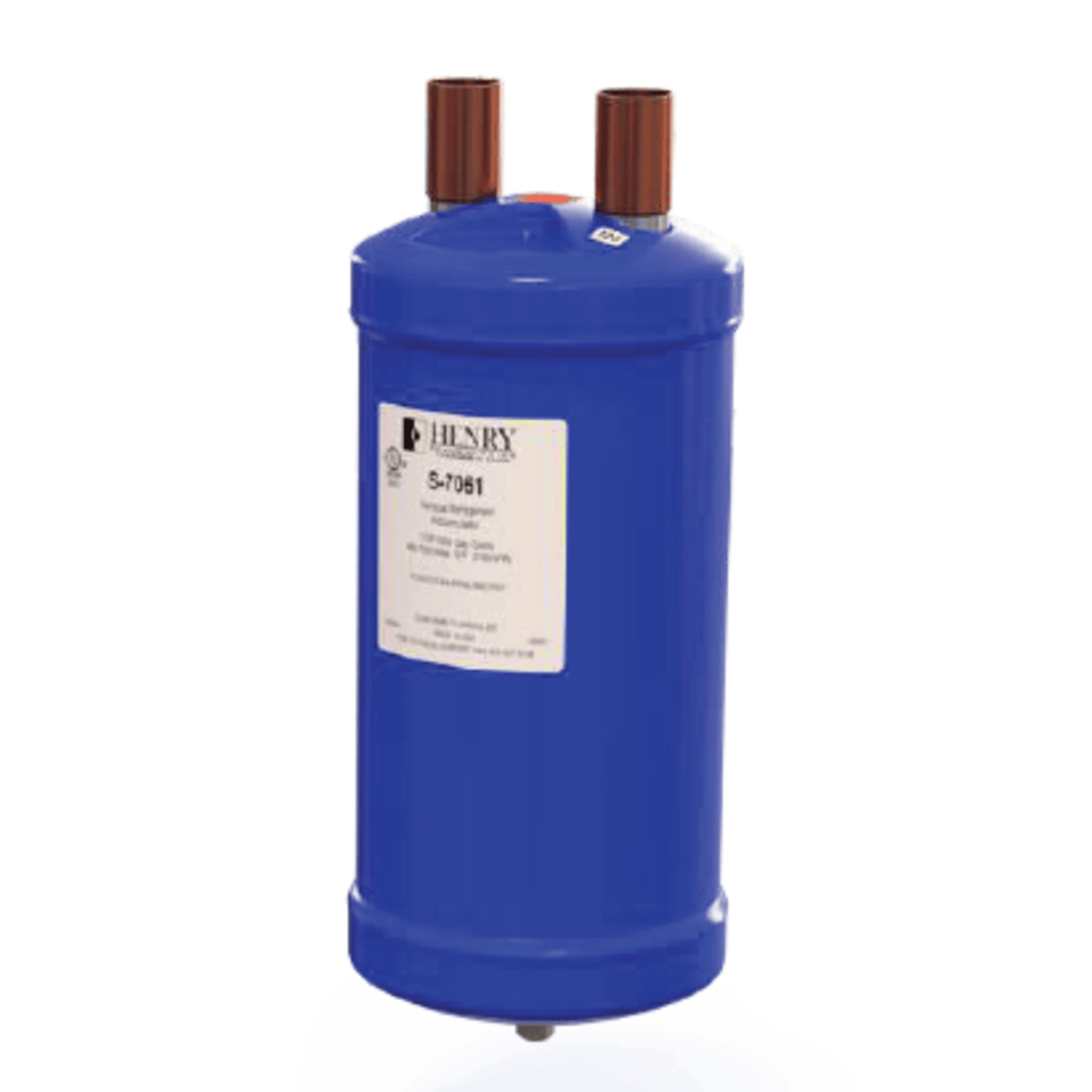

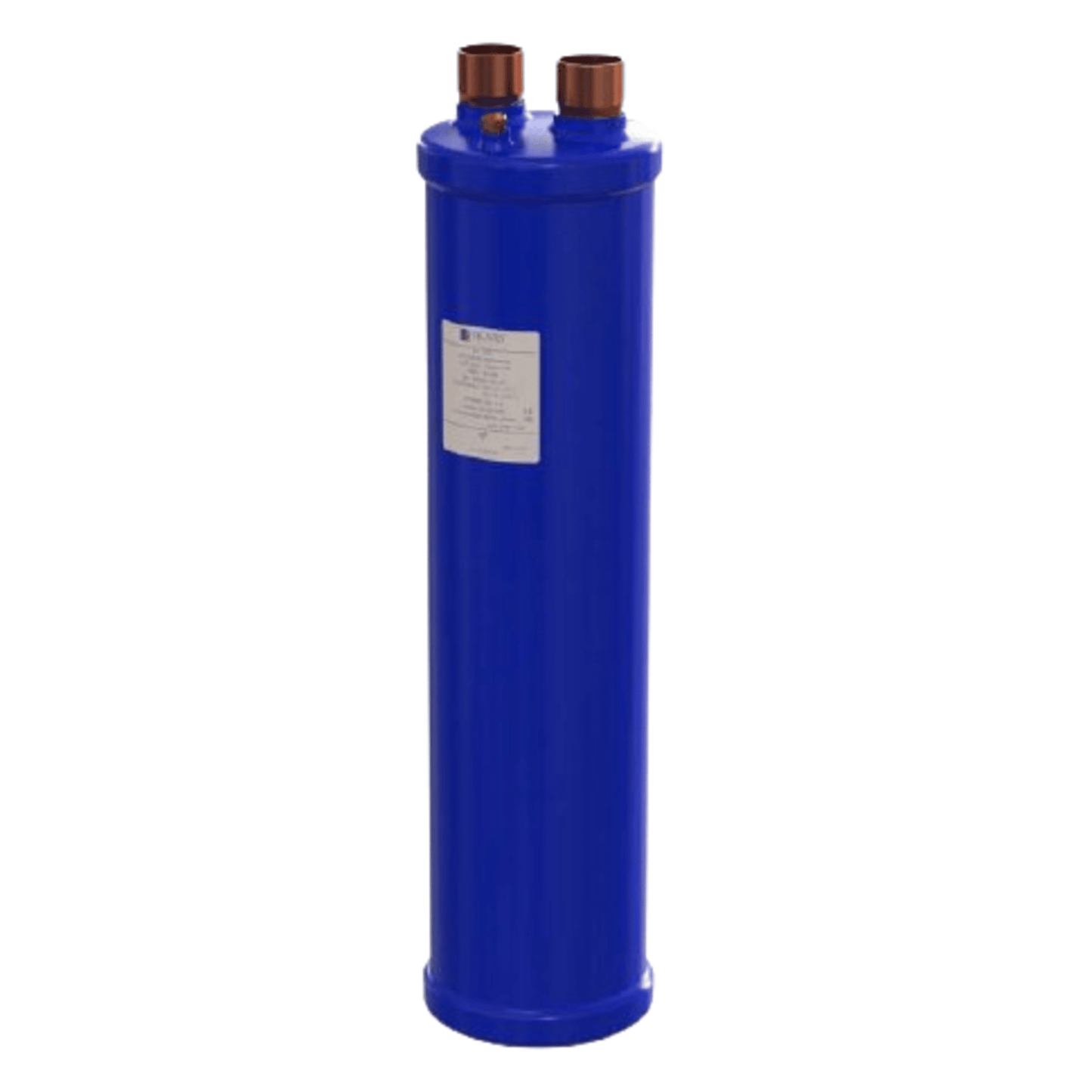

Henry SA-7057-F43, Accumulator, Suction Line, Vert UL w/430 deg F fusible rivet, 7/8 ODS

The Henry SA-7057-F43 Suction Line Accumulator is a vertical, UL-certified component designed for refrigeration and air conditioning systems. Here are its key features and specifications:

• Model: SA-7057-F43
• Type: Vertical Suction Line Accumulator
• Connection Size: 7/8" ODS (Outside Diameter Solder)
• Fusible Rivet: 430°F for safety
• Material: Steel, with a durable powder coating
• Function: Provides temporary storage and controlled return of liquid refrigerant and oil to the compressor, preventing damage from liquid slugging and maintaining system efficiency
• Applications: Suitable for use with HFC and HCFC refrigerants and their associated oils, as well as other industrial fluids non-corrosive to steel and copper
• Design Features:
  • Internal U-tube design
  • Copper connectors
  • Screened orifice to prevent clogging
  • Mounting legs for easy installation
  • Large flow capacity with low pressure drop
  • Powder-coated finish for durability

This accumulator is essential for protecting compressors from sudden surges of liquid refrigerant, ensuring efficient operation and proper oil levels in the crankcase.
